Tektronix WVR6020 Quick Start Manual

Monitoring Audi
o
angle for negative signal correlations. The bar to the right of the white tic mark behaves in the same way, depending on
the C-R correla
tion. This PSI indicator uses the same color coding as the other PSI indicators.
Usage Notes

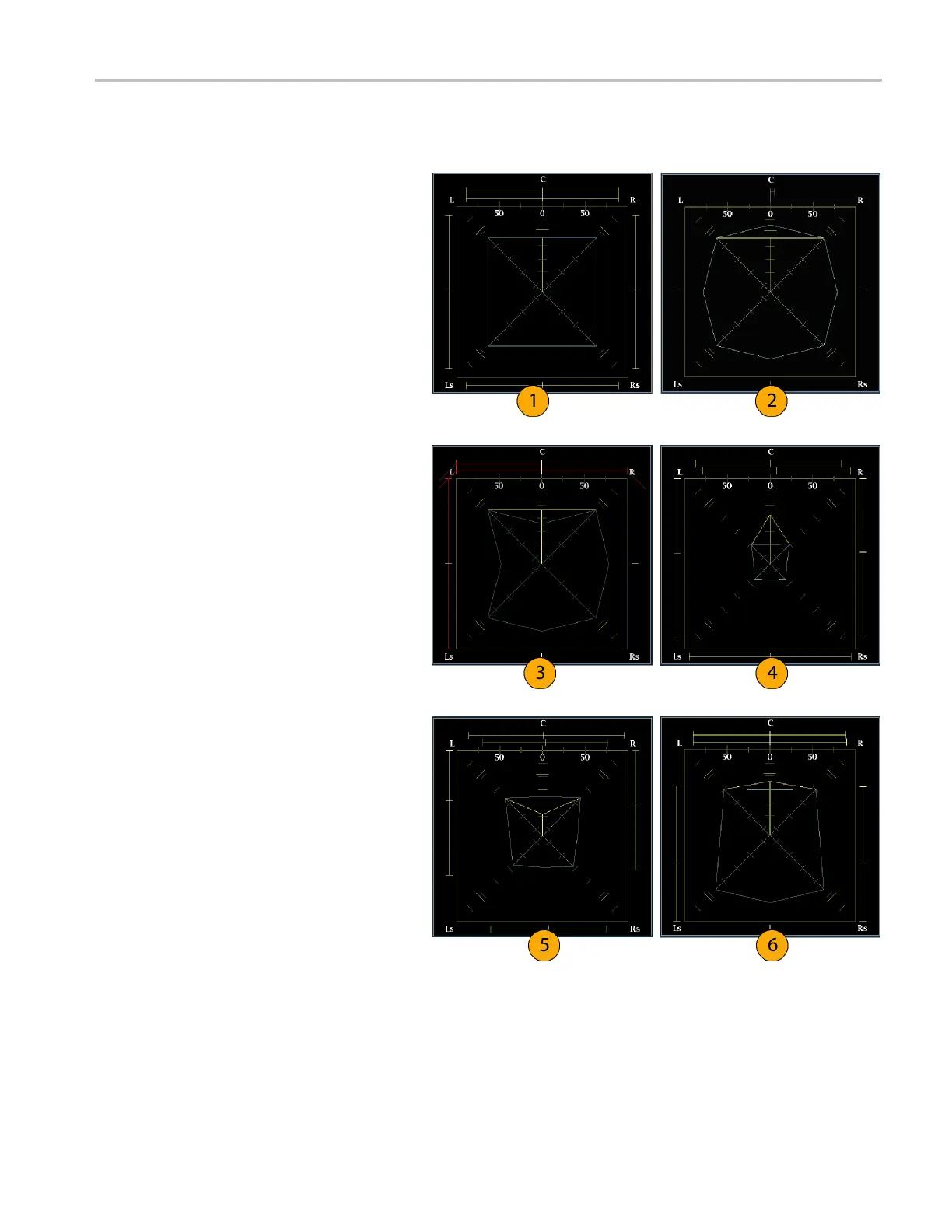

The displays shown here are examples of
how the surround sound waveform appears
for some typical signal types.
1. Uncorrelated signals: same level in the
L, C, R, Ls, and Rs channels.
2. Sine wave test tone: same level in the
L,C, R, Ls, and Rs channels. All signals
are in phase, creating phantom sources
between the adjacent channels.
3. Same as 2, with the exception that
Channel L is out of phase.
4. Surround sound program with strong
center channel presence.
5. Surrou
nd sound program with weak
center channel presence.
6. Monaural signal in channels Ls and Rs,
creating a phantom source in the center,
asina3
.1 surround sound system.
Waveform Rasterizers Quick Start User Manual 93
