Operating Your I
nstrument

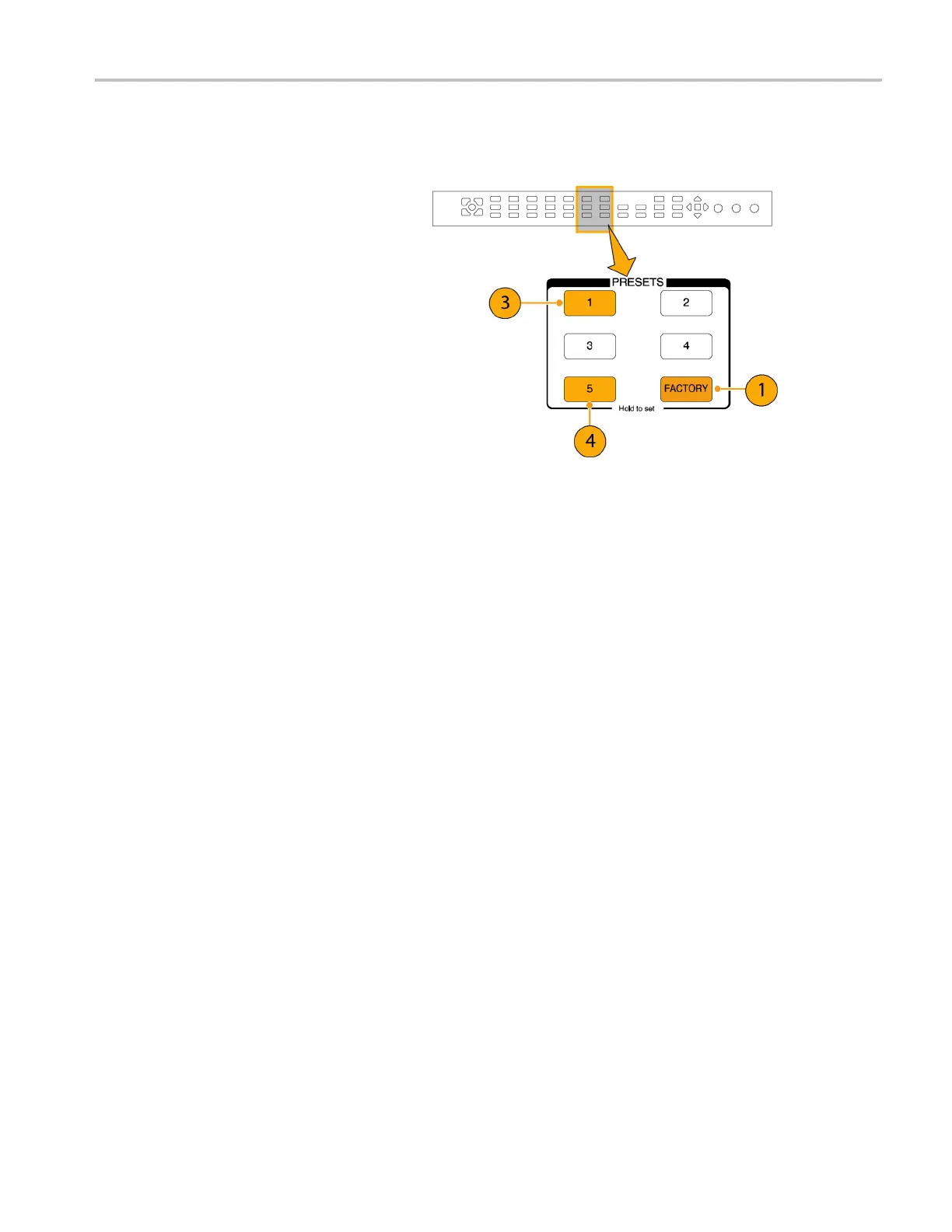

Using Presets
Presets let you save up to five custom setups for later recall. You can also recall a factory predefined setup.
To Recall the Factory Preset
1. Push the FACTO
RY button.
The front panel setup will revert to default
factory settings.
To Save as Setu
p to a Preset
2. Set up the instrument as you want it.
3. Press the PRESET button.
4. Press and hold the illuminated button of
the measurement you w ant to save until
the Preset # saved message pops up
on the screen.
To Recall an Existing Preset
5. Push the num
bered button for the preset
you want to recall.
The front panel setup will switch to the
saved prese
t corresponding to the button
pressed.
To Clone a Setup Between
Instruments
You c an store presets as filesonaPC
and upload them to another rasterizer.
See Cloning Setups (Presets) in the
Technical R eference (found on the Product
Documentation C D) for more information.
Measuring Waveforms with Cursors
Cursors enable you to measure time or voltage on a waveform. Cursors appear only i n a tile set to Waveform mode. If
the acti
ve tile is not in Waveform mode, then an error message is displayed.
Waveform Rasterizers Quick Start User Manual 33
