Checking Gamut
Setup for Gamut Checks
1. Connect a vide
o signal and terminate it
properly.

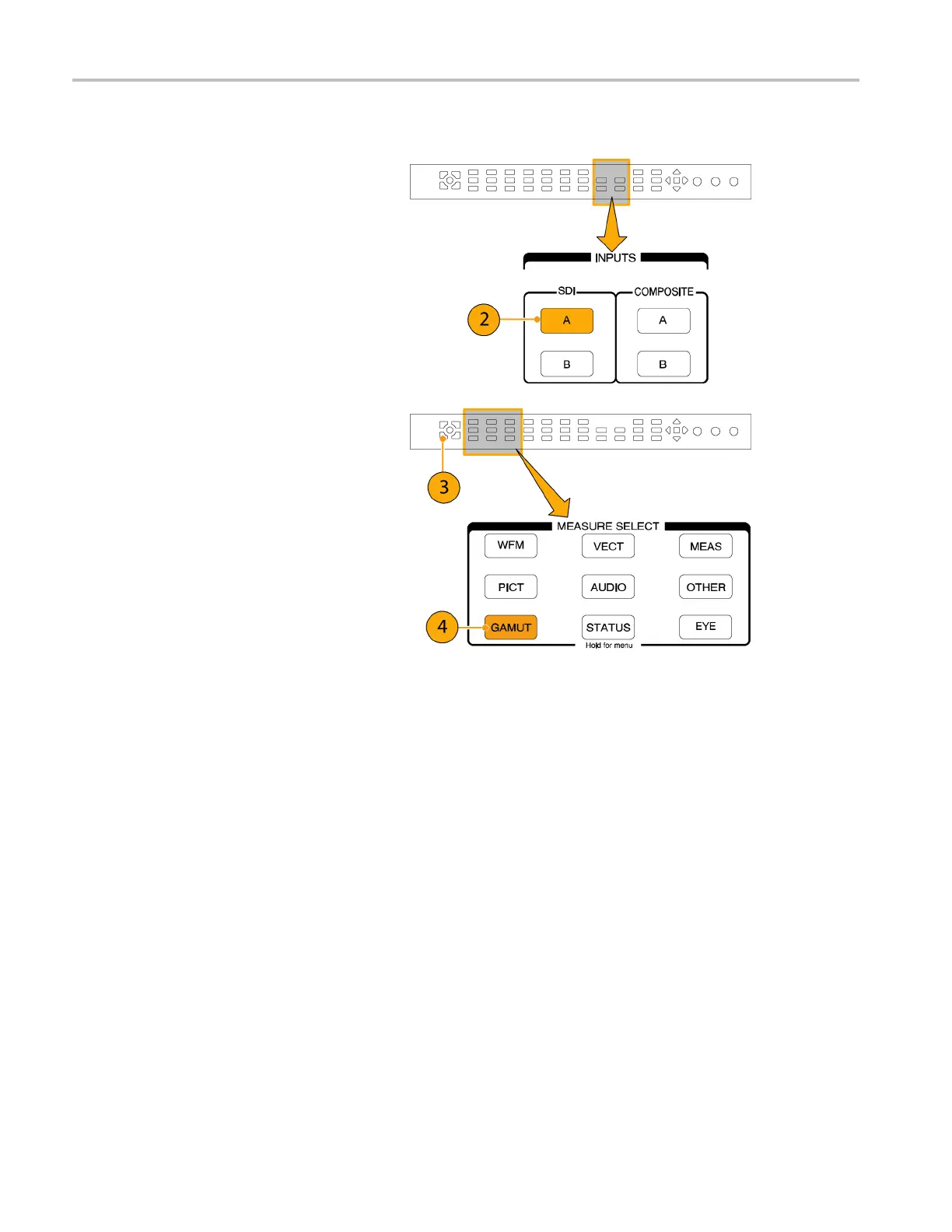

2. Select the input corresponding to the
signal connected.
3. S elect a tile.
4. Press and hold the GAMUT button to
display th
e signal in a tile and pop up the
GAMUT menu.
