Operating Your I
nstrument
NOTE. See the timing measurement display for dual link to link timing information. See the video session display for
detected sampl
e structure and other dual link information.

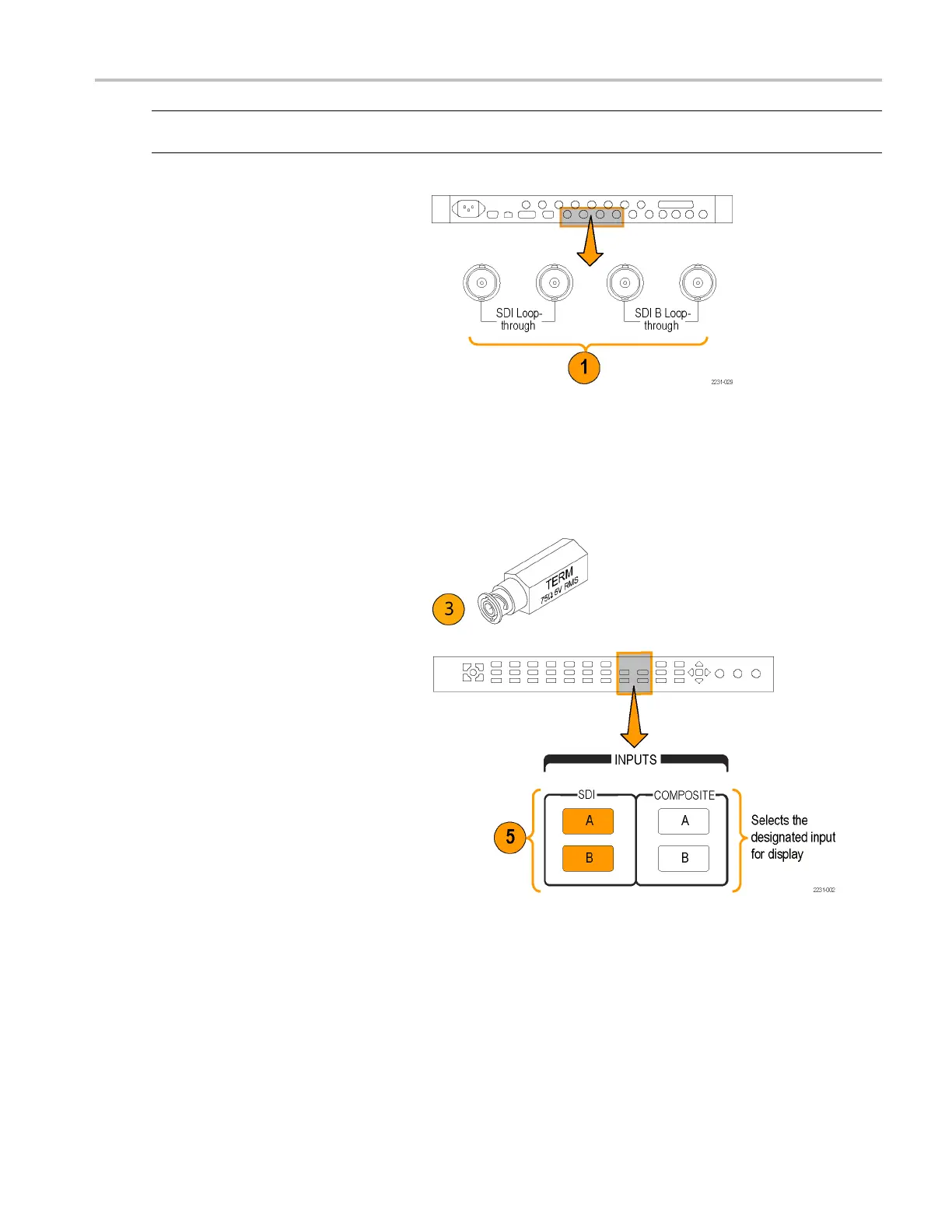

To Set Up Dual Link Inputs
1. Connect a Dual Link SDI video signal to
the A and B SDI inputs at the rear panel.
SDI A is link A; SDI B is link B .
2. By default, the instrument automatically
detects when a signal is present.
NOTE. If a SMPTE352–VPID Type 1 signal
is present, the instrument automatically
detects it. If a Type 0 signal is present, you
need to select Sample Structure from the
SDI Input submenu of the Configuration
menu. XYZ sample structures are supported.
See the Specifications and Performance
Verification Manual provided on the Product
Documentation CD for sample structure
information.
3. Terminate the loop-through inputs
properly at the rear panel for a ll inputs
that you connected.
4. Check that the two input buttons in use
light up
on the front panel.
5. Select a
tile and measurement in which
to display the input.
Waveform Rasterizers Quick Start User Manual 27
