Monitoring the S
DI Physical Layer

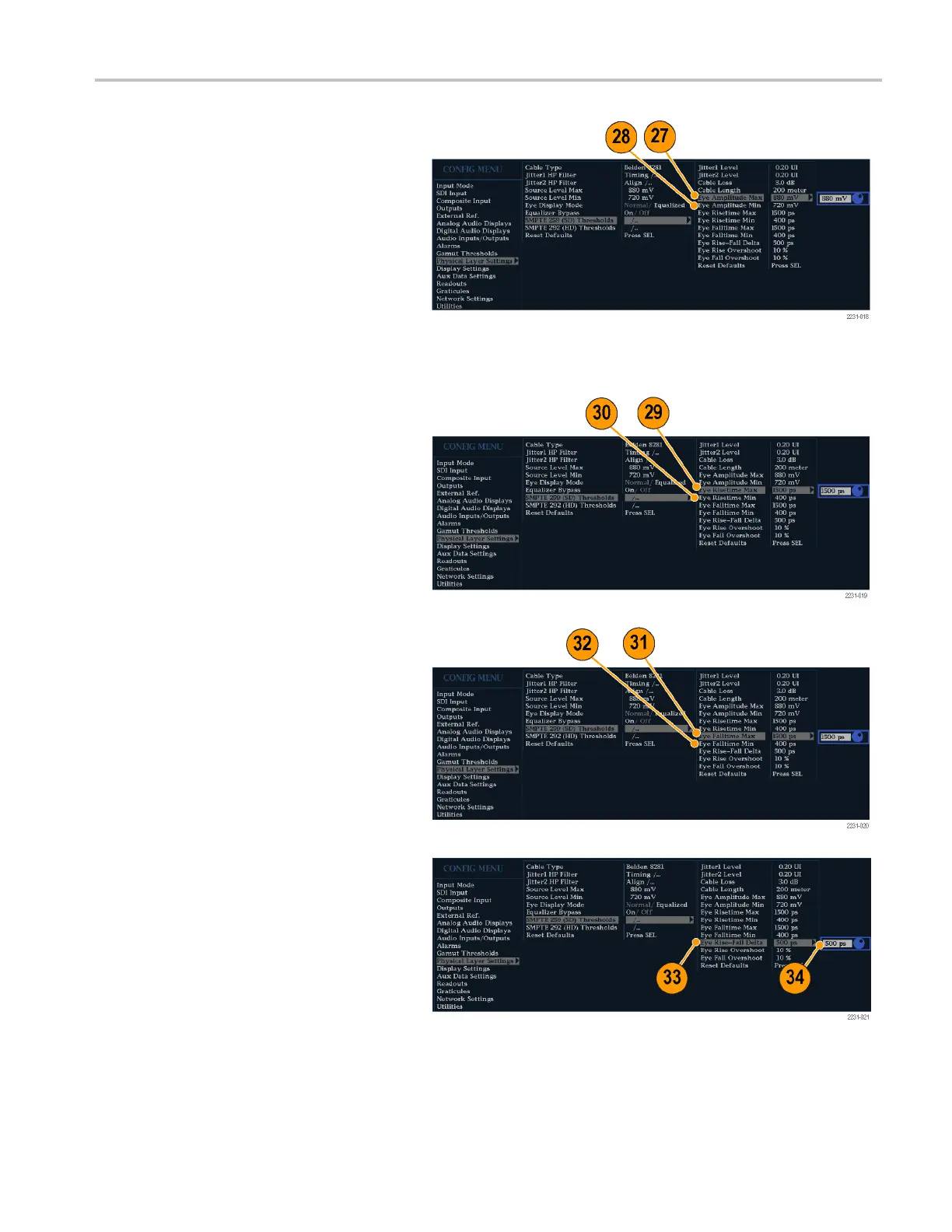

27. Option PHY Only. Select Eye
Amplitude Max.UsetheGeneral knob
to increase or
decrease the setting.
The maximum amplitude you can enter
is 1010 mV ; the minimum amplitude is
700 mV.
28. Option PHY Onl
y. Select Eye
Amplitude Min.UsetheGeneral knob
to increase or decrease the setting.
The maximum am
plitude you can enter is
10 mV below the current Eye Amplitude
Max setting; the minimum amplitude is
530 mV.
29. Option PHY On
ly. Select Eye Risetim e
Max.UsetheGeneral knob to increase
or decrease the setting.
The maximum r
isetime you can enter
is 3000 ps (SD) or 1000 ps (HD); the
minimum risetime is 0 ps.
30. Option PHY Only. Select Eye Risetime
Min.Usethe
General knob to increase
or decrease the setting.
31. Option PHY O nly. Select Eye Falltime
Max.UsetheGeneral knob to increase
or decrease the setting.
The maximum falltime you can enter
is 3000 ps (SD) or 1000 ps (HD); the
minimum falltime is 0 ps.
32. Option PHY O nly. Select Eye Falltime
Min.UsetheGeneral knob to increase
or decrease the setting.
33. Option
PHY Only. Select Eye Rise-Fall
Delta.
34. Use the General knob to increase or
decrease the setting.
The max
imum value you can enter is
1000 ps; the minimum value is 0 ps.
Waveform Rasterizers Quick Start User Manual 59
