Tektronix WVR6020 Quick Start Manual

Monitoring the S
DI Physical Layer

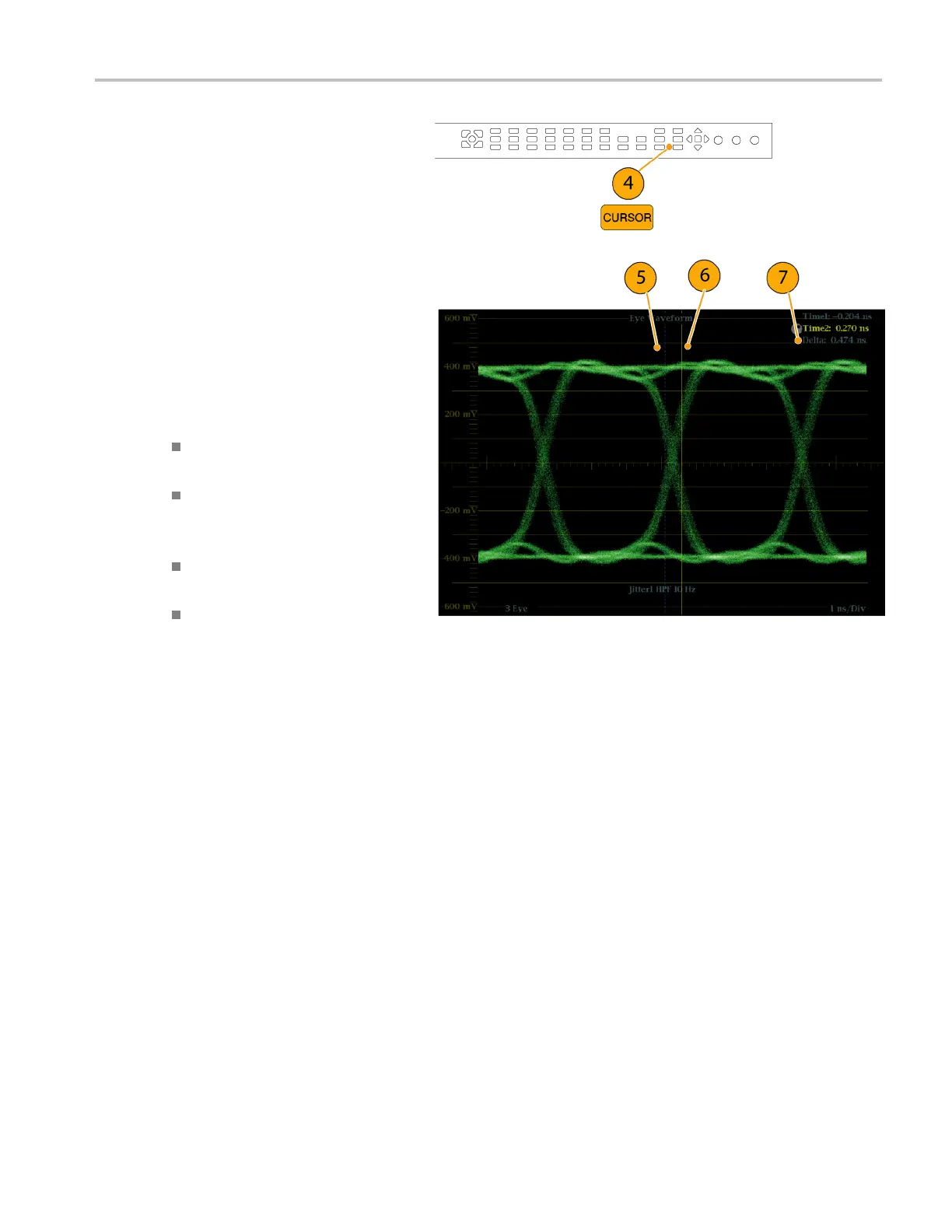

4. Press the CURSOR button to display the
measurement cursors.
5. Position the first timing cursor at the left
edge of the zero
-crossing point of the
Eye waveform.
NOTE. If necessary, use the Gain and
Sweep control
s for better vertical and
horizontal resolution.
6. Position the second timing cursor at the
right edge of t
he zero-crossing point of
the Eye waveform .
7. Check that the Delta readout is less than
the following:
SD Signals (p
er SMPTE 259M)
Timing jitte
r(10Hzfilter): 740 ps
(0.2 unit intervals ).
Alignment jitter (1 kHz filter): 740 ps
(0.2 unit intervals ).
HD Signals (p
er SMPTE 292M)
Timing jitte
r(10Hzfilter): 673 ps
(1.0 unit intervals ).
Alignment jitter (100 kHz filter):
134 ps (0.2 unit i ntervals).
Waveform Rasterizers Quick Start User Manual 69
