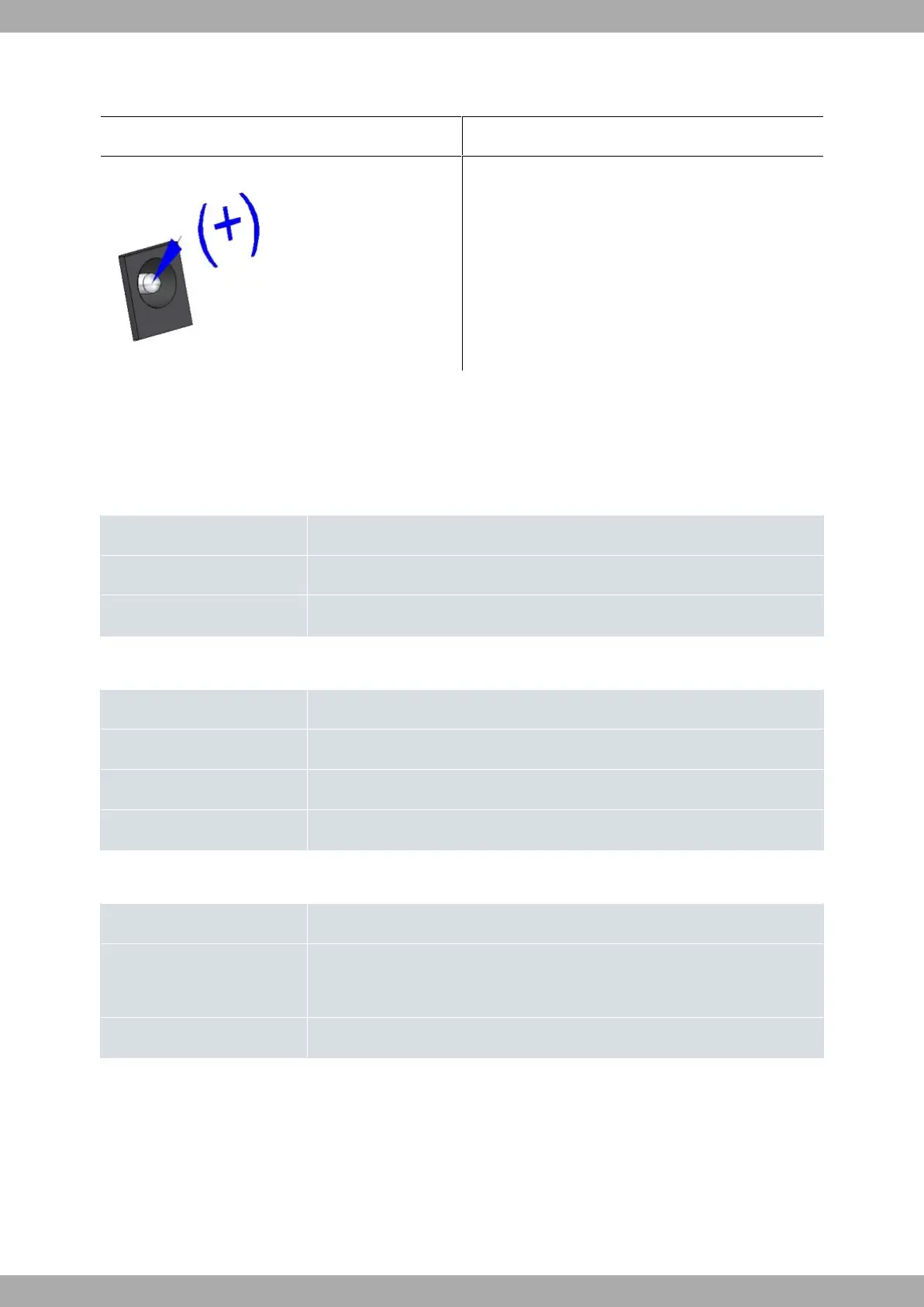

A.4.5 Power supply connector
Jack 5.5/2.5mm PIN
Internal -> POSITIVE
External -> NEGATIVE
A.5 Technical specifications
A.5.1 Hardware architecture
PROCESSORS Freescale LayerScape.
MEMORY 1 GByte (DDR4)
STORAGE UNIT eMMC Memory (4 GBytes).
A.5.2 LAN interface
PROTOCOLS Ethernet (802.3).
PORTS 4-port MDI/MDX auto-detection.
SPEED 10/100/1000 Mbps (Base-T).
CONNECTOR RJ45 female.
A.5.3 WAN Base-T interface
STANDARDS Ethernet (802.3).
SPEED WAN-1: 10/100/1000 Mbps (Base-T).
WAN-2: 10/100/1000/2500 Mbps (Base-T).
CONNECTOR RJ45 female.
