Teldat Connect-FW User Manual

Chapter 3 Components and Power Supply
The following chapter provides detailed information on the chassis of the Teldat Connect-FW router and its compon-
ents. This information includes:
• Components.
• Information on assembly.
• Power supply.
• RST button.
• Data connection.
• SIM card installation.
3.1 Components
3.1.1 Front panel

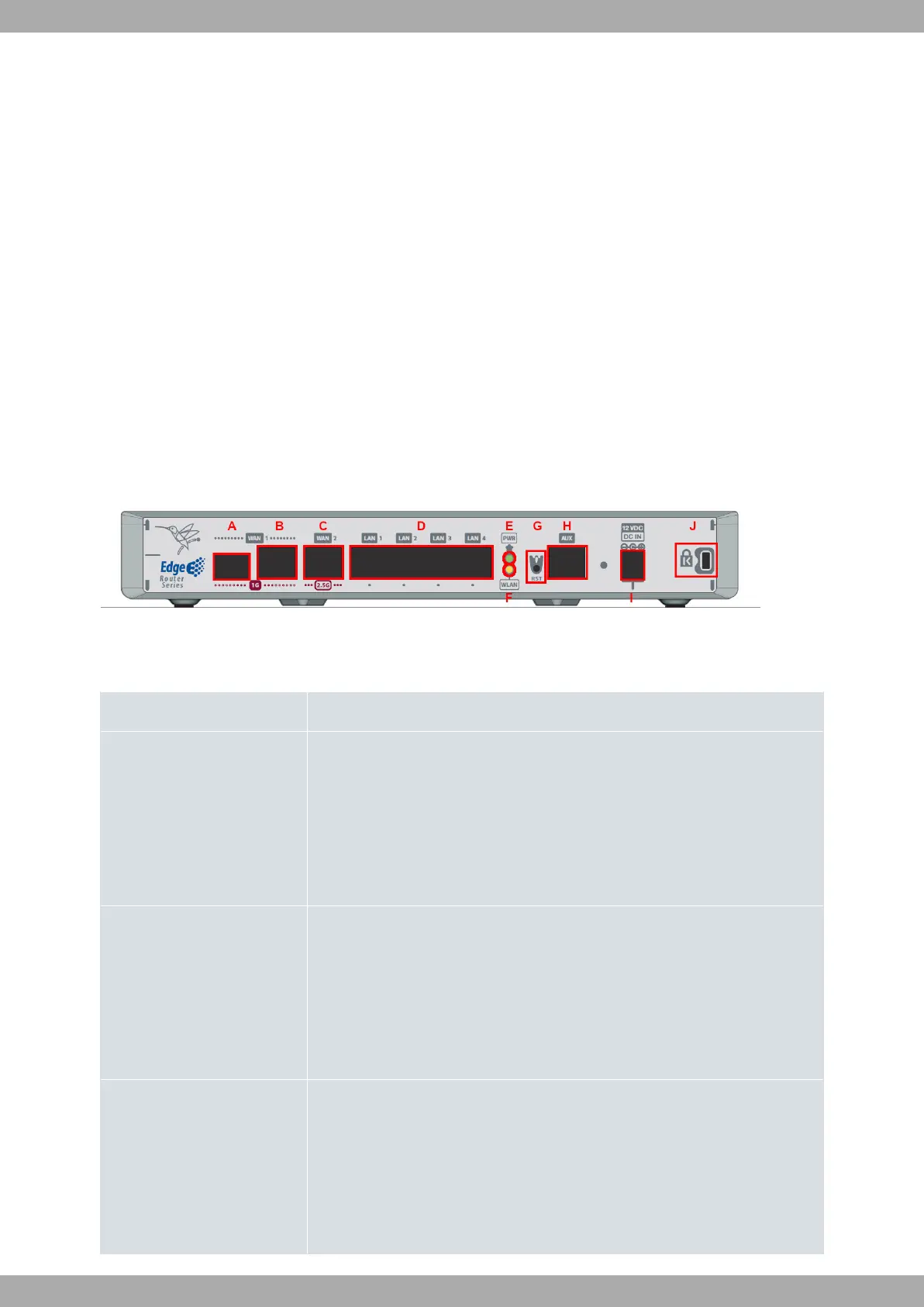

The following figure shows the front panel. Here you will find the majority of Teldat Connect-FW router connectors.
Fig. 2: Front panel
The following table provides information on each connector, as well as a description:
Front panel components
Item Description
A Eth WAN-1 SFP.
For more information on the SFP interface, refer to:
- WAN Combo connection on page 12
- WAN SFP connector on page 22
- WAN SFP interface on page 24
B Eth WAN-1 Base-T. WAN Gigabit Ethernet.
For more information on the WAN interface, refer to:
- WAN Combo connection on page 12
- WAN Base-T connectors on page 22
- WAN Base-T interface on page 23
C Eth WAN-2 Base-T. WAN 2.5 Gigabit Ethernet.
For more information on the WAN interface, refer to:
- WAN 2.5G connection on page 13
- WAN Base-T connectors on page 22
- WAN Base-T interface on page 23
