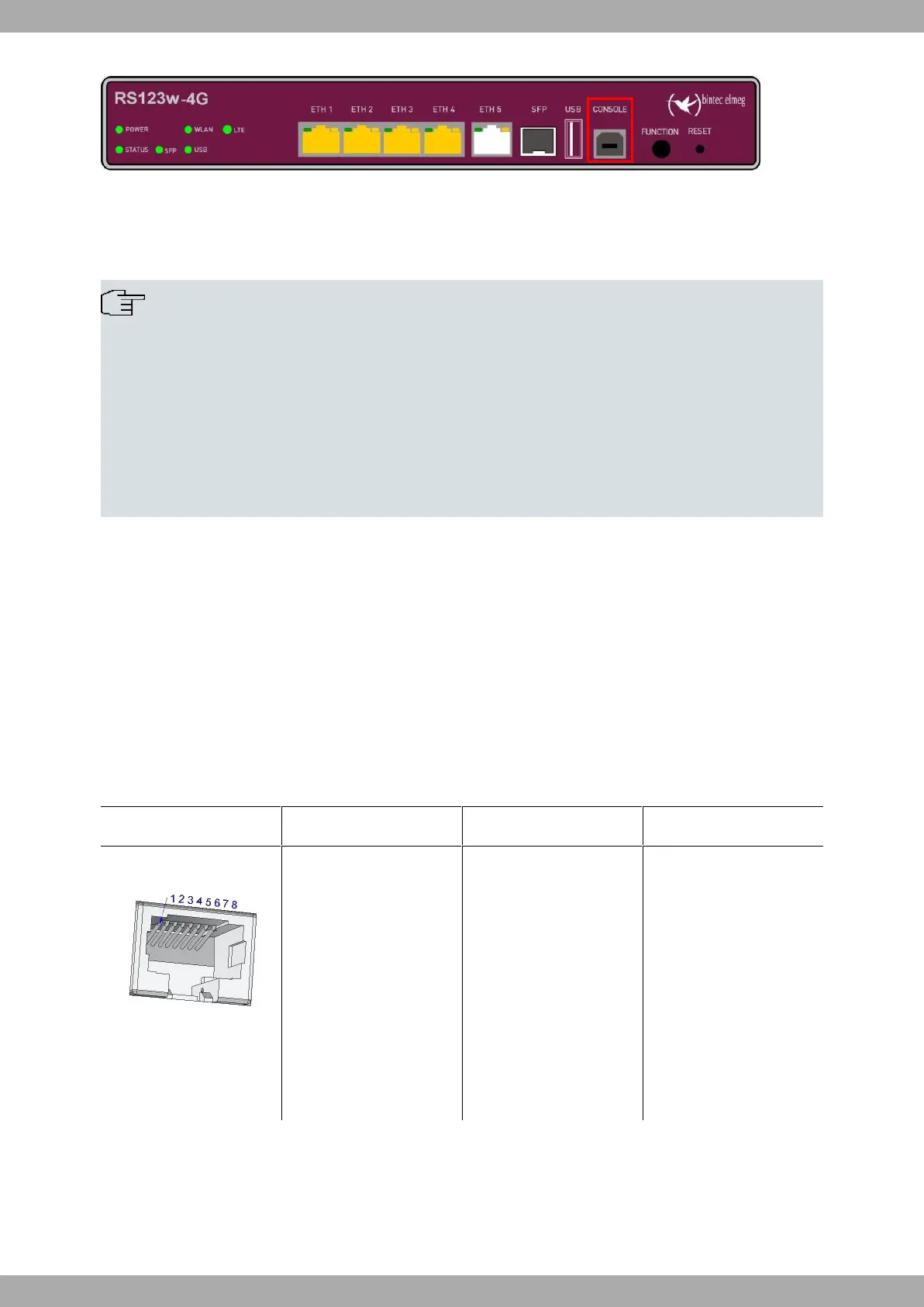

Fig. 19: CONSOLE Connector
To configure this, connect the CONSOLE port to your PC using a USB cable.
Note
The configuration for the terminal must be:
- Speed: 115200 bps.
- Eight data bits.
- One stop bit.
- No parity bit.
- No type of flow control.
A.4 Licenses
The RS123 device offers a series of licenses, among which the following stand out:
SFP: Activation license for the SFP port.
DPI: Activation license for the DPI feature (Layer 7 Visibility).
A.5 Connectors
A.5.1 LAN connector
RJ45 LAN RJ45 PIN FE Signals GE Signals
1
2
3
4
5
6
7
8
BI-DA+
BI-DA-
BI-DB+
--
--
BI-DB-
--
--
BI-DA+
BI-DA-
BI-DB+
BI-DC+
BI-DC-
BI-DB-
BI-DD+
BI-DD-
