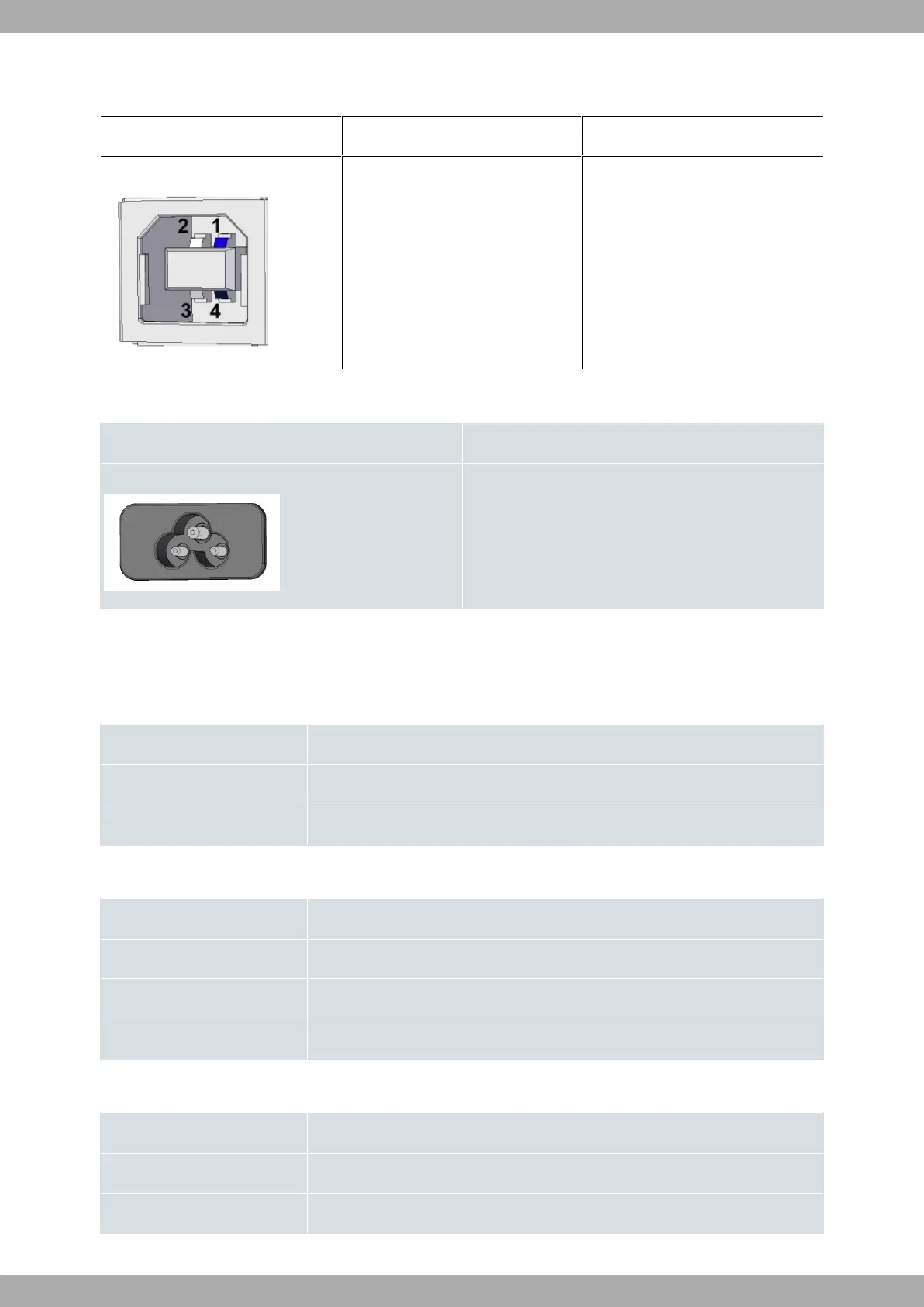

A.5.6 Configuration connector
USB Type B PIN USB
1
2
3
4
Shell
VCC
DATA-
DATA+
GND
Shield
A.5.7 Power Supply connector
IEC C9 PIN
L
Earth
N
A.6 Technical Specifications
A.6.1 Hardware architecture
PROCESSORS
Lantiq VRX288.
MEMORY 128 Mbytes in SDRAM.
STORAGE UNIT FLASH Memory (32 Mbytes).
A.6.2 LAN interface
PROTOCOLS Ethernet (802.3).
PORTS 4 port Switch managed with MDI/MDX autodetection.
SPEED 10/100/1000 Mbps (BaseT).
CONNECTOR RJ45 female.
A.6.3 WAN interface (RJ45)
STANDARDS Ethernet (802.3).
SPEED 10/100/1000 Mbps (BaseT).
CONNECTOR RJ45 female.
Teldat S.A.
Technical Information
RS123 Router 27

Teldat RS123 Seies Specifications

General

Brand	Teldat
Model	RS123 Seies
Category	Network Router
Language	English
