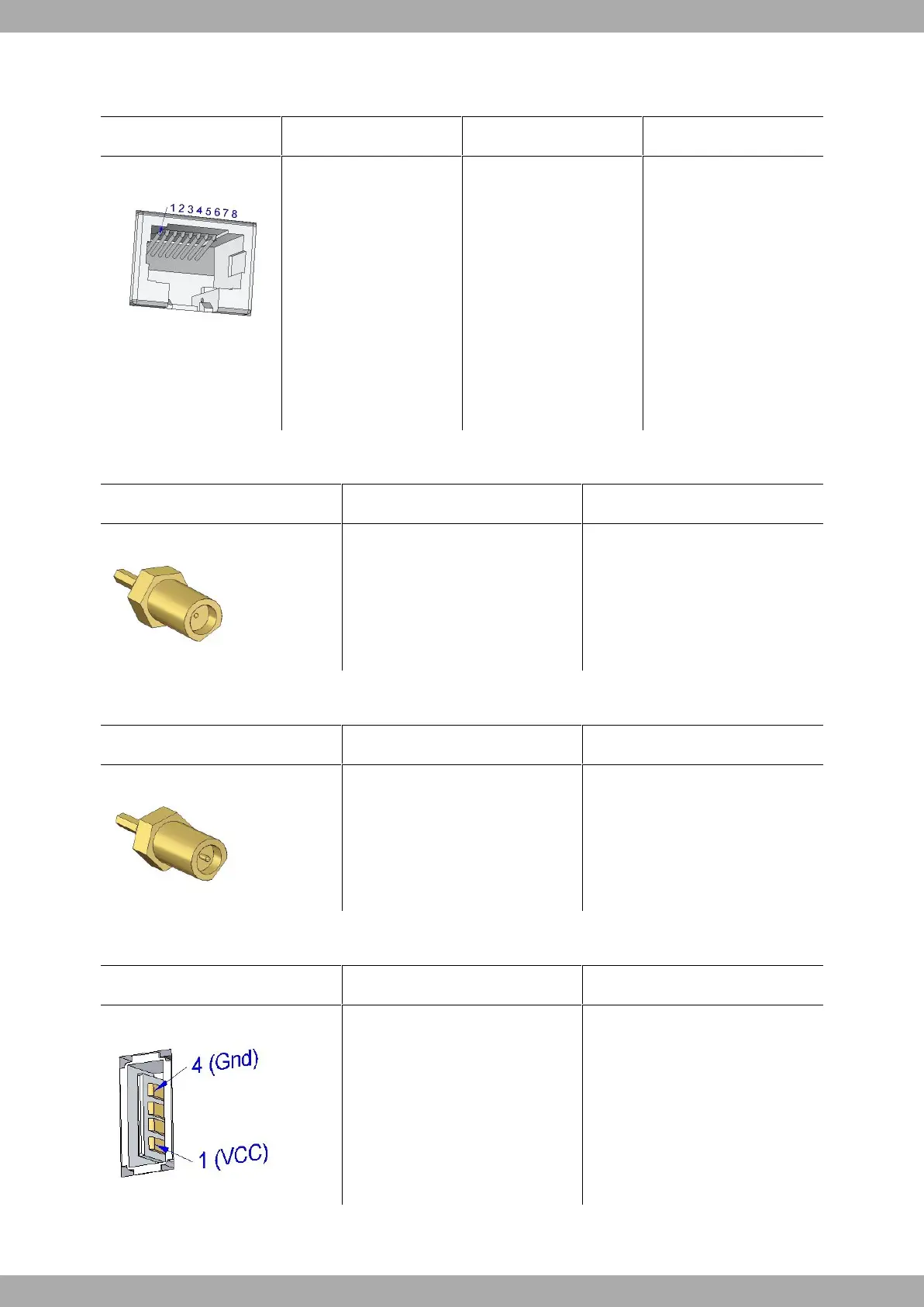

A.5.2 WAN connector
RJ45 WAN RJ45 PIN FE Signals GE Signals
1
2
3
4
5
6
7
8
BI-DA+
BI-DA-
BI-DB+
--
--
BI-DB-
--
--
BI-DA+
BI-DA-
BI-DB+
BI-DC+
BI-DC-
BI-DB-
BI-DD+
BI-DD-
A.5.3 WWAN connector (female)
PIN ANT
Internal
External
RF in/out
GND
A.5.4 WLAN connector (male)
PIN ANT
Internal
External
RF in/out
GND
A.5.5 USB connector
USB Type A PIN USB
1
2
3
4
Shell
VCC
DATA-
DATA+
GND
Shield
