D Kensington security slot
For further information, please see Standalone and anti-theft security cable on
page 9.
E Reset. Reset button.
For further information on how the reset button works, please see RESET Button
on page 13.
F SIM Card 1-2. Slot where you can insert the SIM cards.
Refer to Installing the SIM card on page 17 for more information on SIM installa-
tion.
3.1.3 Side Panels
Up to four antenna connectors are located on the side panels.

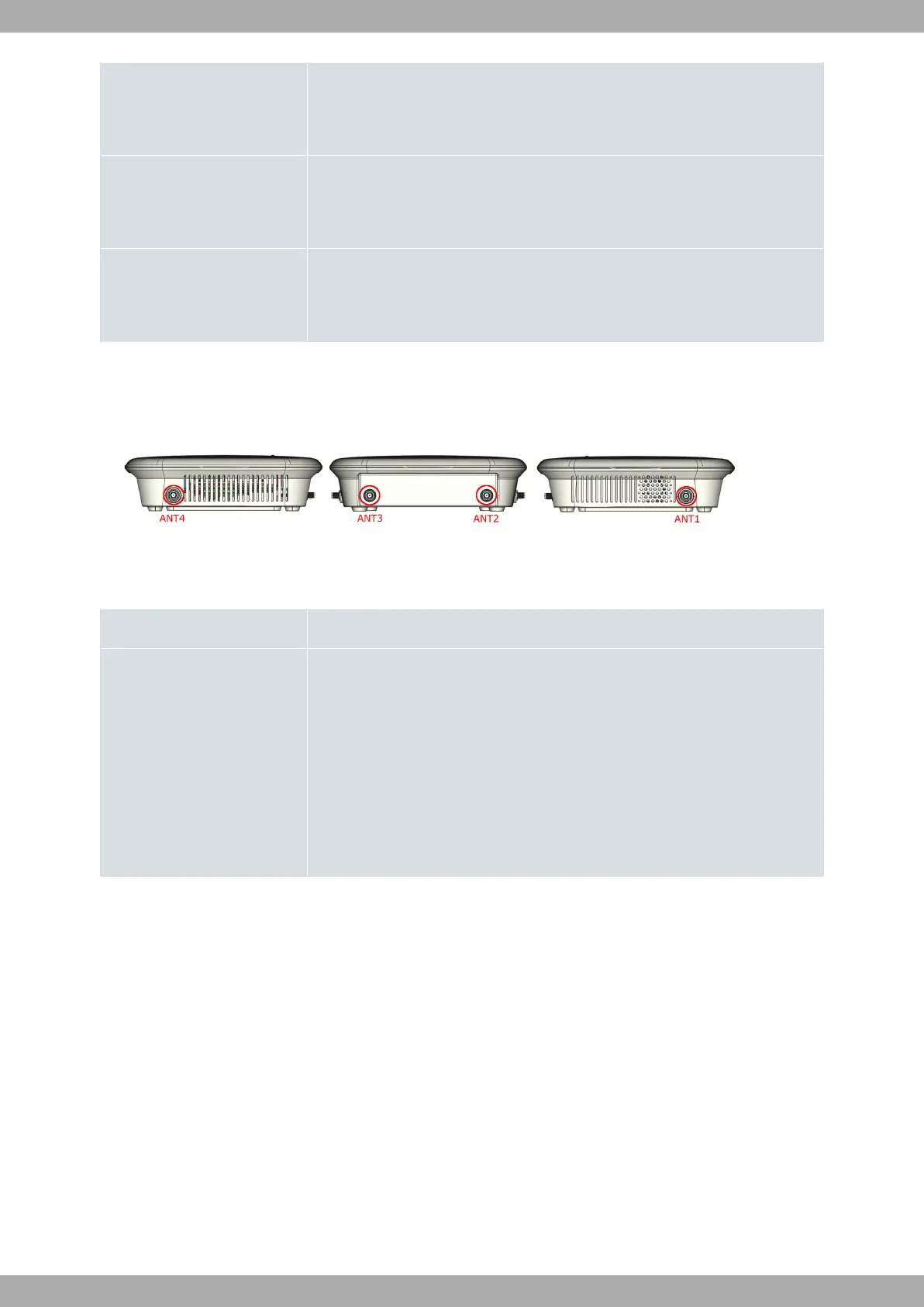

Fig. 3: Side panels
The connectors are as follows:
Side panel connectors
Item Description
ANT1
ANT2
ANT3
ANT4
Antenna connectors. The number of connectors depends on the device model (2
connectors for 4GePlus model, 4 connectors for 5Ge model)
For more information on the WWAN interface, refer to:
- Connecting the WWAN Antennas on page 15
- WWAN Connector on page 26
- Wireless WAN interface (4GePlus) on page 29
- Wireless WAN interface (5Ge) on page 32
3.1.4 Underside Panel
The following elements can be found on the underside panel:
3 Components and Power Supply Teldat S.A.
