RECEIVER INSTALLATION INSTRUCTIONS
PREPARATION FOR INSTALLATION
(1) Provide all necessary tools.
(2) Select a proper location.
(3) Select a stable place.
(4) Select a place where you can see the Receiver or Antenna.
(5) Select a place where there are no sparks, e.g. keep away from motors, relays, magnetic switches and power
cables.
(6) Keep away from high-voltage wiring and devices.
(7) The Receiver case must be at least 3 cm away from other obstacles.
INSTALLATION OF PROPER POWER SOURCE
The input power source for the receiver can be 110/220/380 VAC (50/60 Hz) etc. After the power source is confirmed, one must
select the proper connector for the voltage applied to the relay module transformer primary winding.

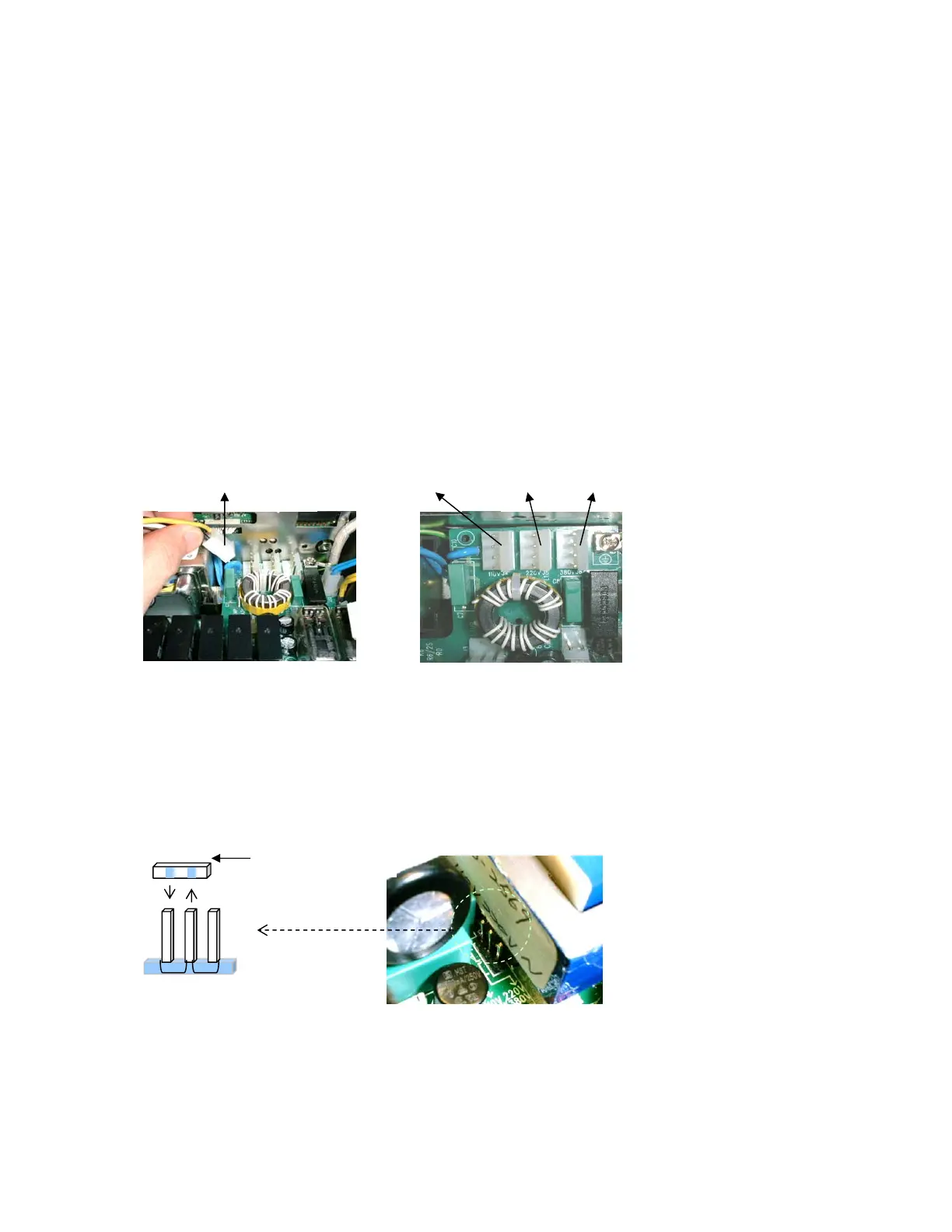

Selective power supply for F21-12S/12D as illustration as below:
There are 3 kinds of voltage (110V/220V/ 380V) supplied in F21-12S/12D
This could be set as required before shipment, or follow the procedures to change the voltage you need.
(1) Turn off the Receiver.
(2) Pull out the power source plug from the previous voltage position
(3) Plug in the power source plug to the voltage you need.
(4) Complete.
Note: If the voltage you need is 48V/62V/110V, please contact distributor.
Selective power supply for F21-6D as illustration as below:
There are 2 kinds of voltage (110V/220V) supplied in F21-6D
This could be set as required before shipment, or follow the procedures to change the voltage you need.
(1) Turn off the Receiver.
(2) Using tool to pull out the black connector from the previous voltage position.
(3) Using tool to plug in the black connector to the voltage you need.
(4) Complete.
110V 220V
110V 220V 380V
Black connector
Power source plug
