INSTALLATION
PRECAUTIONS DURING INSTALLATION
(1) Observe all safety precautions when climbing the crane.
(2) Turn off the main power source of crane before installation to avoid electric shock.
(3) Receiver must be installed in such a way that it will not touch any part of the building during the operation.
(4) Receiver must be fastened securely.
(5) Two external antennas must be used when receiver is installed in a metal box.
(6) Before installation, inspect the crane’s safety devices, and make sure everything is in proper working
condition.
(7) Make sure you understand the crane circuits and power distribution as well as the function setting of remote
controller, to avoid incorrect wiring.

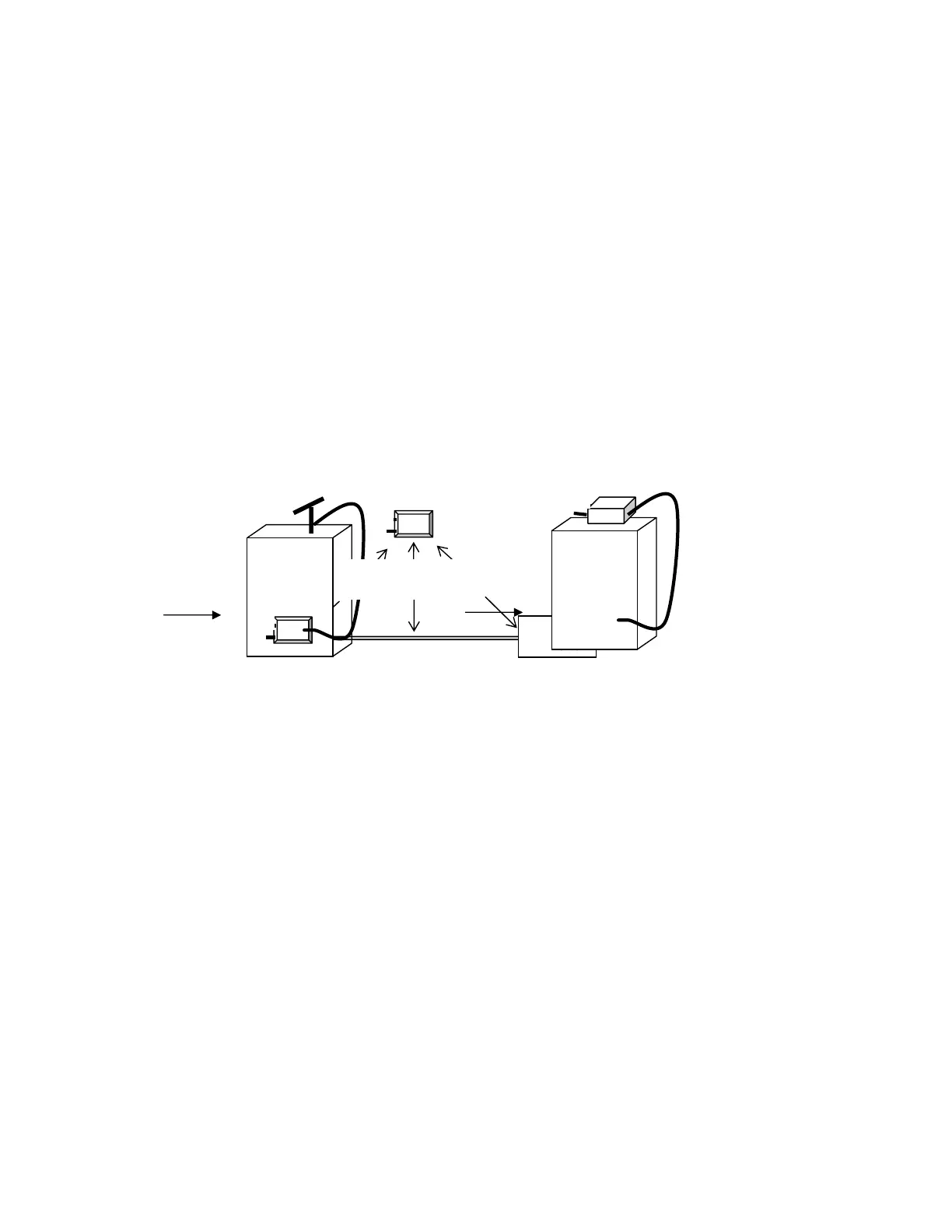

(8) To avoid any interference, the Receiver must be away from motors, frequency converter and power cable
(show as below).
(9) The Receiver should be installed on the top of the electrical control box. Don’t mount the receiver inside .
Receiver
M
Motor
Cable
Frequency
Converter
Correc
Antenna
Cable
Receiver
⌧
(Incorrect)
(Electrical
control box
Receiver
Cable
☺
(Electrical
control box)
As far as possible
