Dual-Feed 200A 4/5 TPA/GMT Fuse Alarm Panel
Power :: 009-8005-0404 :: 009-8005-0404G :: 009-8005-0404L
7. If required, lightly coat anti-oxidant on the lug and
grounding surface on the side of the panel.
8. Connect the lug using the 1⁄4"-20 bolt, split ring
washer and at washer provided, as shown in
Figure 5.
9. Tighten the bolt to 45 in.-lb. (5 N•m).
10. Make sure the input power is off (open breaker,
dummy fuse, or open fuse holder at power
distribution unit [PDU]) before connecting this
panel’s input cables to the PDU.

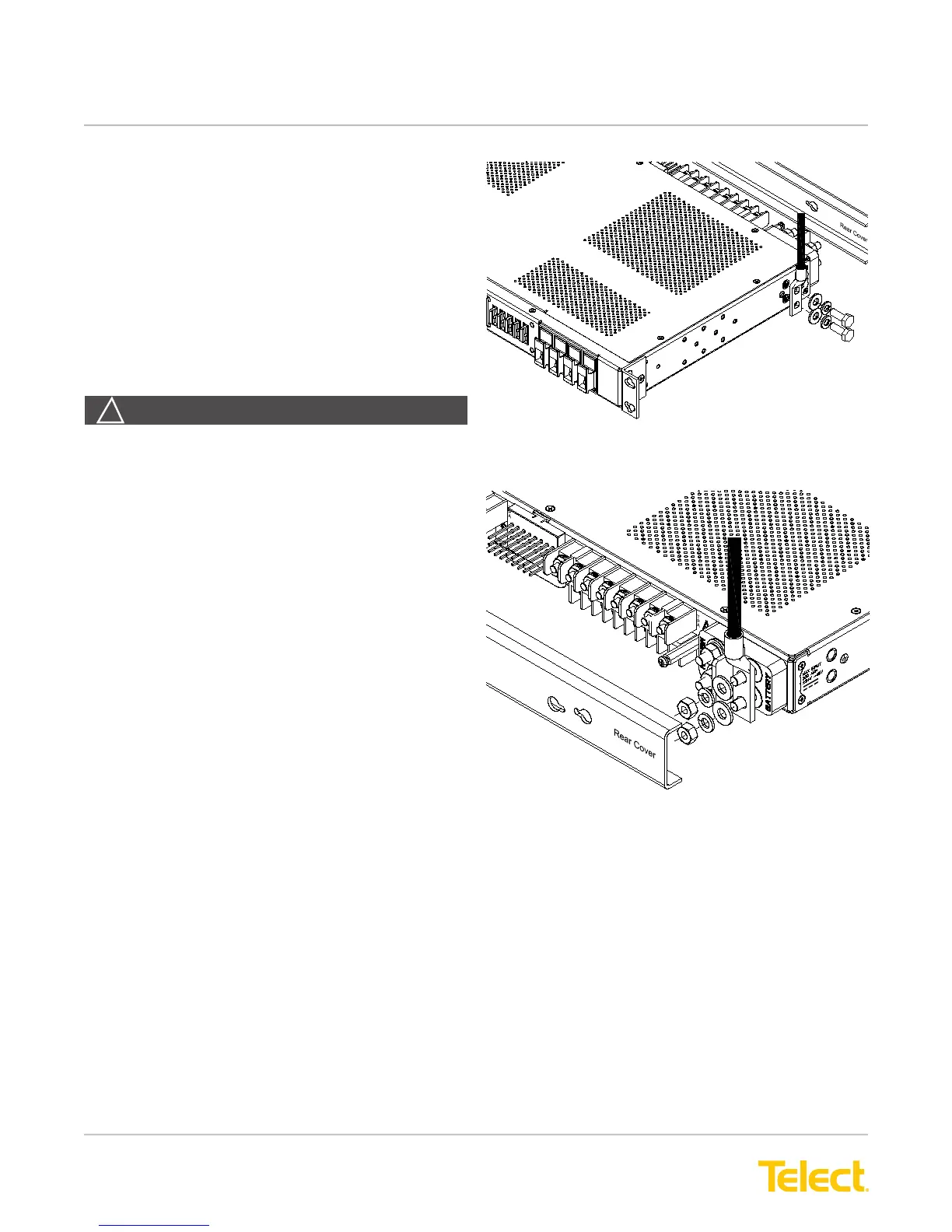

Figure 5 - Ground Lug Connection
11. For input wiring—wiring used as inputs to this
distribution panel—crimp dual-hole compression
lugs onto #8 AWG to #4/0 AWG copper wires.
Insulate lug barrels with UL94 V-0 rated heat-shrink
tubing.
12. Clean the terminals and lugs with a nonabrasive,
nonmetallic pad.
13. If required, lightly coat anti-oxidant on lugs and
input BATTERY and RETURN terminals.
14. Connect the lugs to input terminals on back of
panel, as shown in Figure 6.
15. Tighten the lugs to 45 in.-lb. (5 N•m).
WARNING! Before connecting the input power
cables, make sure the input power to the panel is
turned off.
WARNING
!
Figure 6 - Input Lugs
