Dual-Feed 200A 4/5 TPA/GMT Fuse Alarm Panel

Power :: 009-8005-0404 :: 009-8005-0404G :: 009-8005-0404L

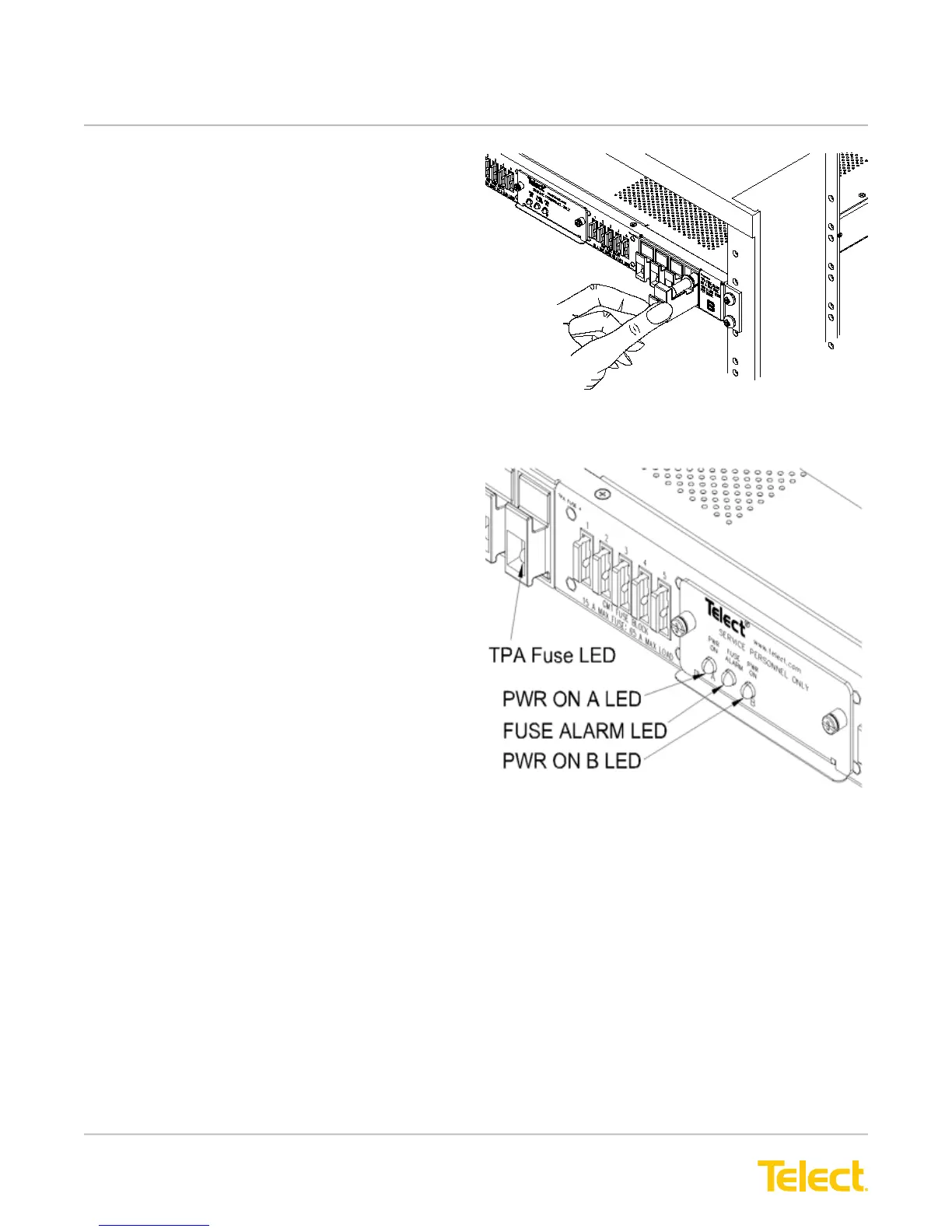

Figure 7 - Disengaging a TPA Fuse Holder

Figure 8 - Alarm Indicators

009-8005-0404

16. Make sure TPA and GMT fuse positions are

either empty or contain dummy fuses (phoney,

inoperative all-plastic slugs). If necessary, pull out

the TPA carrier about an inch from its holder to

disengage the TPA fuse, as shown in Figure 7.

For 009-8005-0404 and 009-8005-0404L alarm indica-

tors, continue at step 17.

For 009-8005-0404G alarm indicators, go to step 22.

1 7. Enable the fuse or breaker at PDU (250A max.)

to turn on Feed A to Side A and then check

voltage and polarity at input connectors of panel.

Also, check that,

• PWR ON A LED on front of panel turns on

(green). (See Figure 8 for location.)

• PWR ON B, FUSE ALARM, and TPA Fuse

LEDs must be off.
