Dual-Feed 200A 4/5 TPA/GMT Fuse Alarm Panel
Power :: 009-8005-0404 :: 009-8005-0404G :: 009-8005-0404L
Telect’s dual 200A fuse alarm panels provide power
protection for a variety of telecommunications
equipment.
Panels include 8 TPA output fuse holders (4 per side)
and 10 GMT fuse holders (5 per side). Sides A and
B in model 009-8005-0404 and 009-8005-0404L are
electrically independent except for the replaceable
alarm card. Sides A and B in model 009-8005-0404G
are electrically independent including the replaceable
alarm card. Both models contain power and alarm
LEDs for both feeds. Also included are fuse alarm and
power-fail relay terminals for external indicators. Models
are NEBS Level 3 certied and listed by UL for the USA
and Canada.

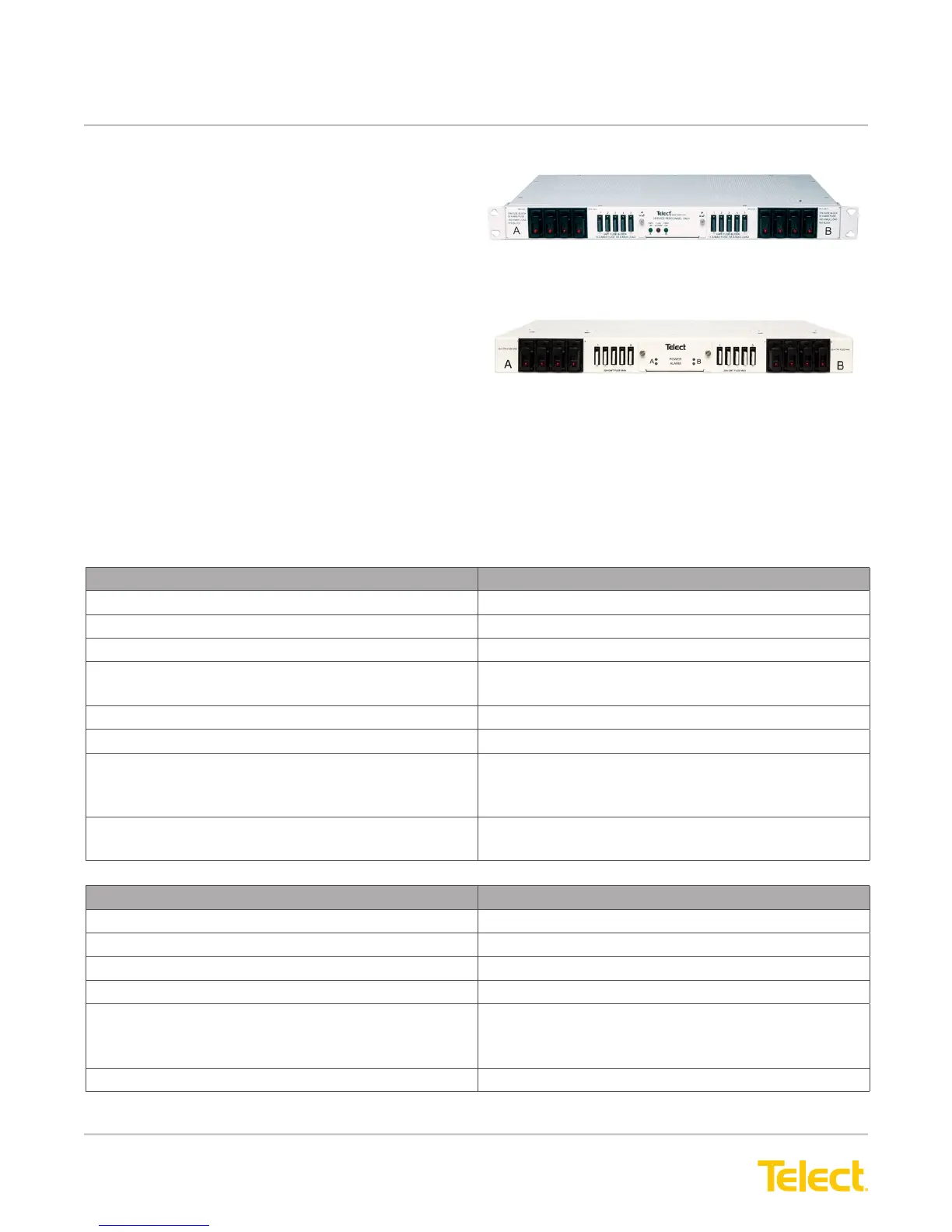

Figure 1 - Model 009-8005-0404
1.1 Specications
Inputs Specications
Nominal Voltage ±24Vdc, -48Vdc
Max. input load rating 200A per side
Nominal power loss at full load 70W per side @ 9600W full load per side (200Ax48V)
Percentage of full load power dissipation at nominal
voltage
Less than 1%
Max. input interrupt device 250A
Short circuit withstand rating 5000A; GMT 450A
Input terminal studs (with split ring lock washers &
nuts) for dual-hole compression lugs
Dual 1/4"-20 studs on 3/4 in. centers.
(Torque nut [using 7/16 in. or 12 mm socket] to
~45 in.-lb [~5 N•m])
Input Wire Size #8 to #4/0 AWG (depends on input interrupt device);
1" lug width
TPA Outputs Specications
Max. TPA Output Fuse (ea.) 50A
Max. TPA Output Load (ea.) - continuous 40A
Max. Total TPA Output Load 160A per side
Short circuit withstand rating 5000A
TPA Output Terminal Studs with nuts 16, single, #10 - 32 studs (max. lug width of 0.46 in.
[1.17 cm]). Torque nut (using 3/8 in. or 10 mm socket) to
~20 in.-lb (~2.3 N•m)
TPA Output Wire Size #18 to #6 AWG (depends on output fuse rating)
Figure 2 - Model 009-8005-0404G
Model 009-1000-1033RE is equivalent to model 009-8005-0404L with respect to specications and functionality.
