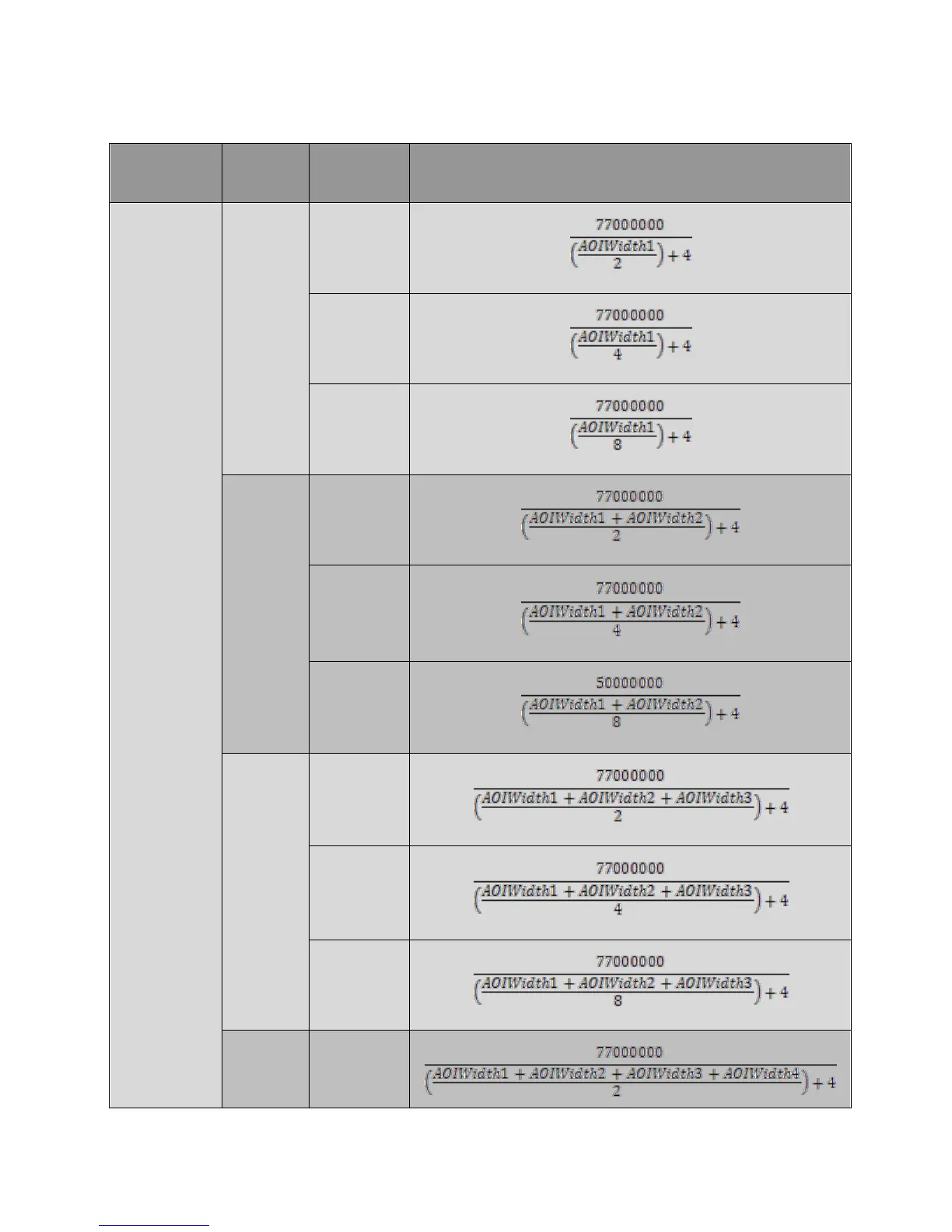

Line Rate vs. AOI
CL Clock Rate
Number of
AOI
CL
Configuratio
n
Line Rate Formula (Hz)
77MHz
1
Base 8 or 12
bit
Max. Line Rate = 80KHz
Medium 8 or
12 bit
Max. Line Rate = 80KHz
Full 8 bit
Max. Line Rate = 80KHz
2
Base 8 or 12
bit
Max. Line Rate = 80KHz
Medium 8 or
12 bit
Max. Line Rate = 80KHz
Full 8 bit
Max. Line Rate = 80KHz
3
Base 8 or 12
bit
Max. Line Rate = 80KHz
Medium 8 or
12 bit
Max. Line Rate = 80KHz
Full 8 bit
Max. Line Rate = 80KHz
4
Base 8 or 12
bit
