RiverRay Deployment Guide P/N 95B-6131-00 (April 2022)
EAR-Controlled Technology Subject to Restrictions Contained on the Cover Page.
Page 5
4. Exit the ParaniWin program.

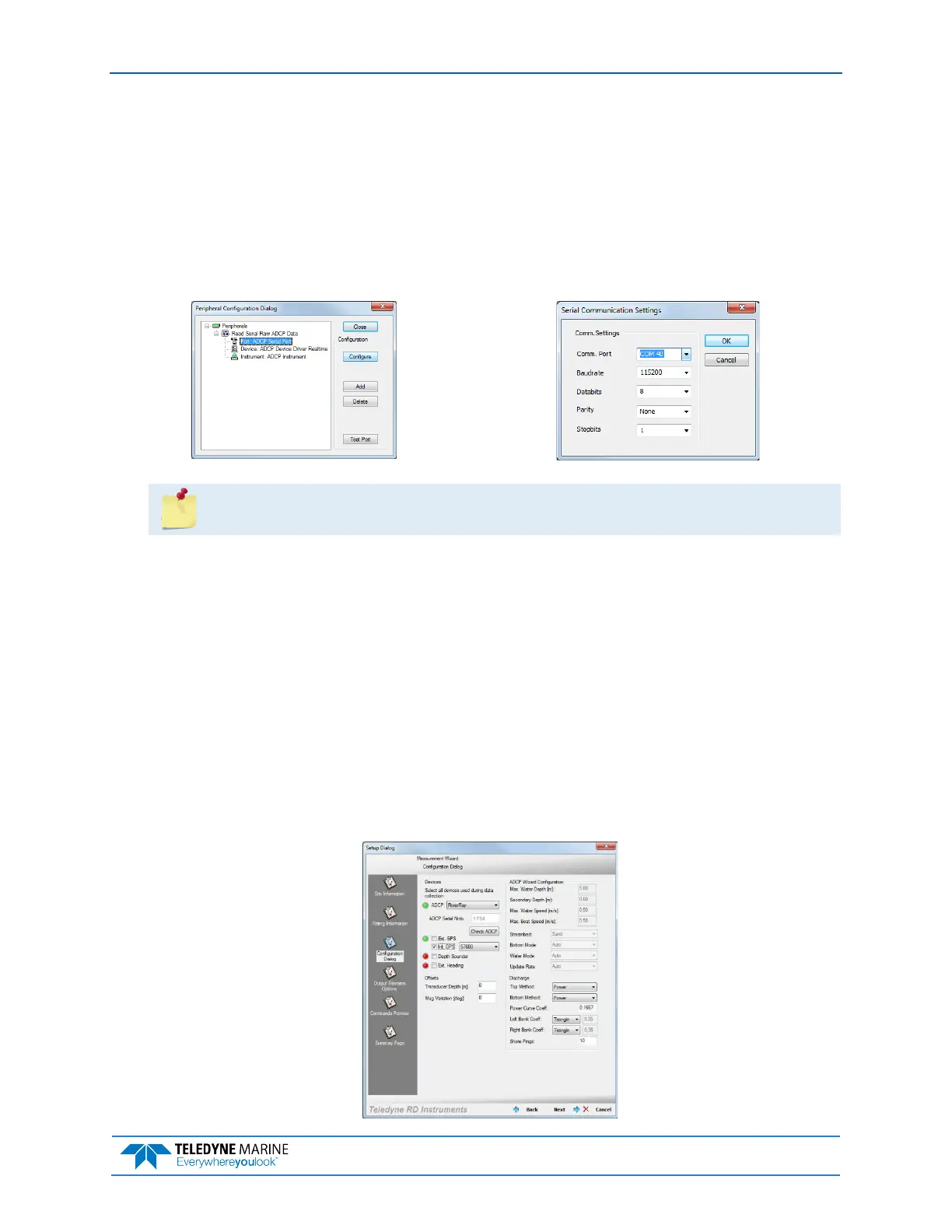

5. Start WinRiver II.
6. On the Configure menu, select Peripherals.
7. Select Port: ADCP Serial Port and then click the Configure button.
8. Select the Comm. Port number as noted in step 2. The Baudrate must be set to 115200. Leave
the Databits, Parity, and Stopbits as shown.
9. Click OK to close the Serial Communication Settings screen.
Note it may take several seconds to accept the Comm. Port selection.
In this example, the Comm. Port is set to Com Port 40.
10. Click the Test Port button. The RiverRay banner appears.
>break
RiverRay
Teledyne RD Instruments (c) 2015
All rights reserved.
Firmware Version: 44.xx
>
11. Click the Close button to exit the Test Port Dialog.
12. Click the Close button once more to exit the Peripherals Configuration Dialog.
13. Start a new measurement in WinRiver II.
14. To use the RiverPro’s vertical beam, check the Vertical Beam Profile Ping box.
15. On the Configuration Dialog, ensure the ADCP type matches the RiverRay and the indicator
next to the RiverRay is green. Verify the blue LED on the RiverRay ADCP is on.
