1.3 Cryochiller Physical Dimensions
Model A (inch) A (mm) B (inch) B (mm) C (inch) C (mm)
1200 22 559 24 610 59.5 1511
1800 22 559 24 610 59.5 1511
1800EXT 22 559 24 610 59.5 1511
2400 22 559 24 610 59.5 1511
3000 23.6 599 35.3 897 70.25 1784
3600 23.6 599 35.3 897 70.25 1784
A
A
B
B
C
C

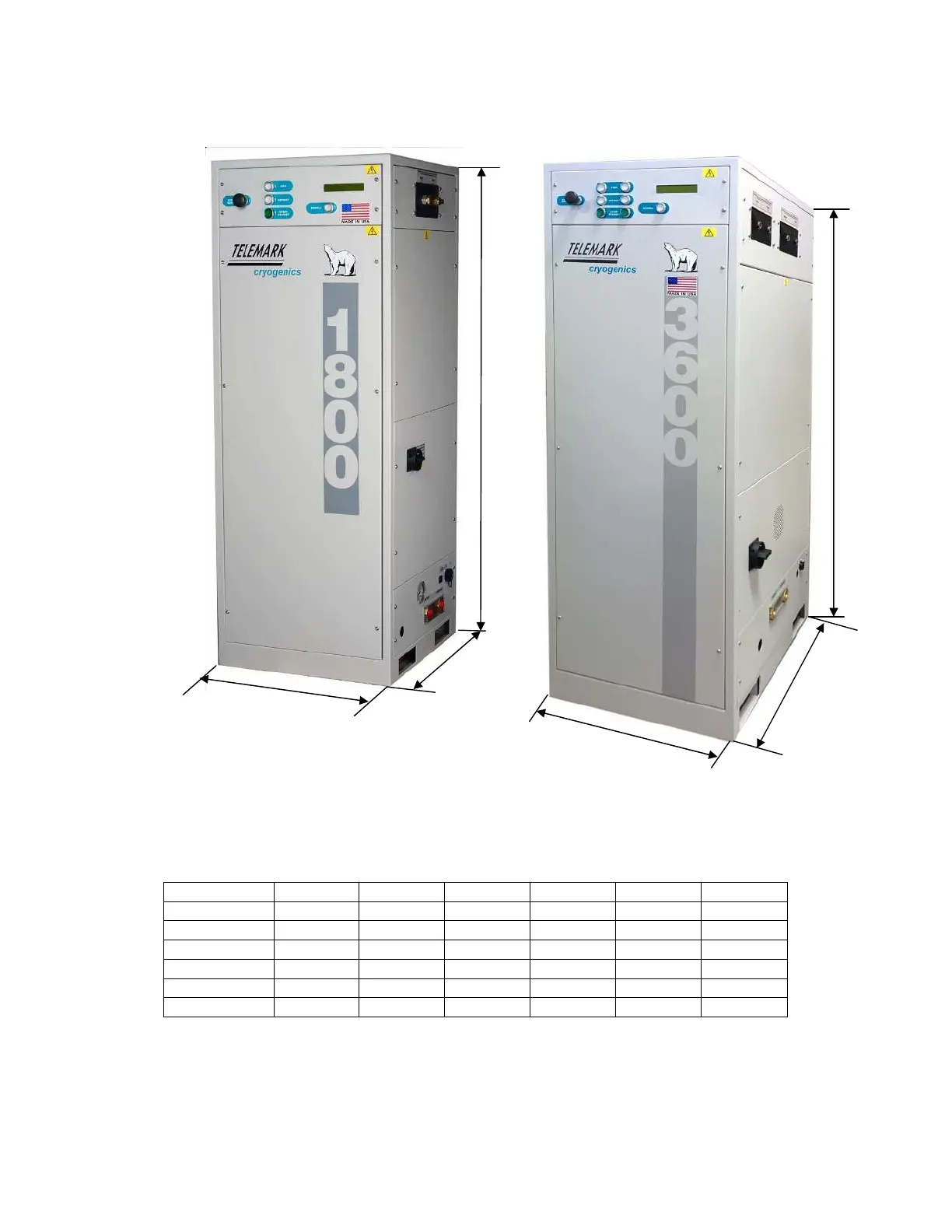

Table 5 Physical Dimensions
