OPERATION
The operations below describe how to operate the unit in manual mode. For
remote operation please refer to section 2.7 of this manual.
3.0 Controls and Displays
3.0.1 LCD Display
Displays the status of the unit as well as, the current running
parameters. It also displays any alarm conditions that may be
present. Alarm conditions will be described in the trouble shooting
section of this manual (Section 5)


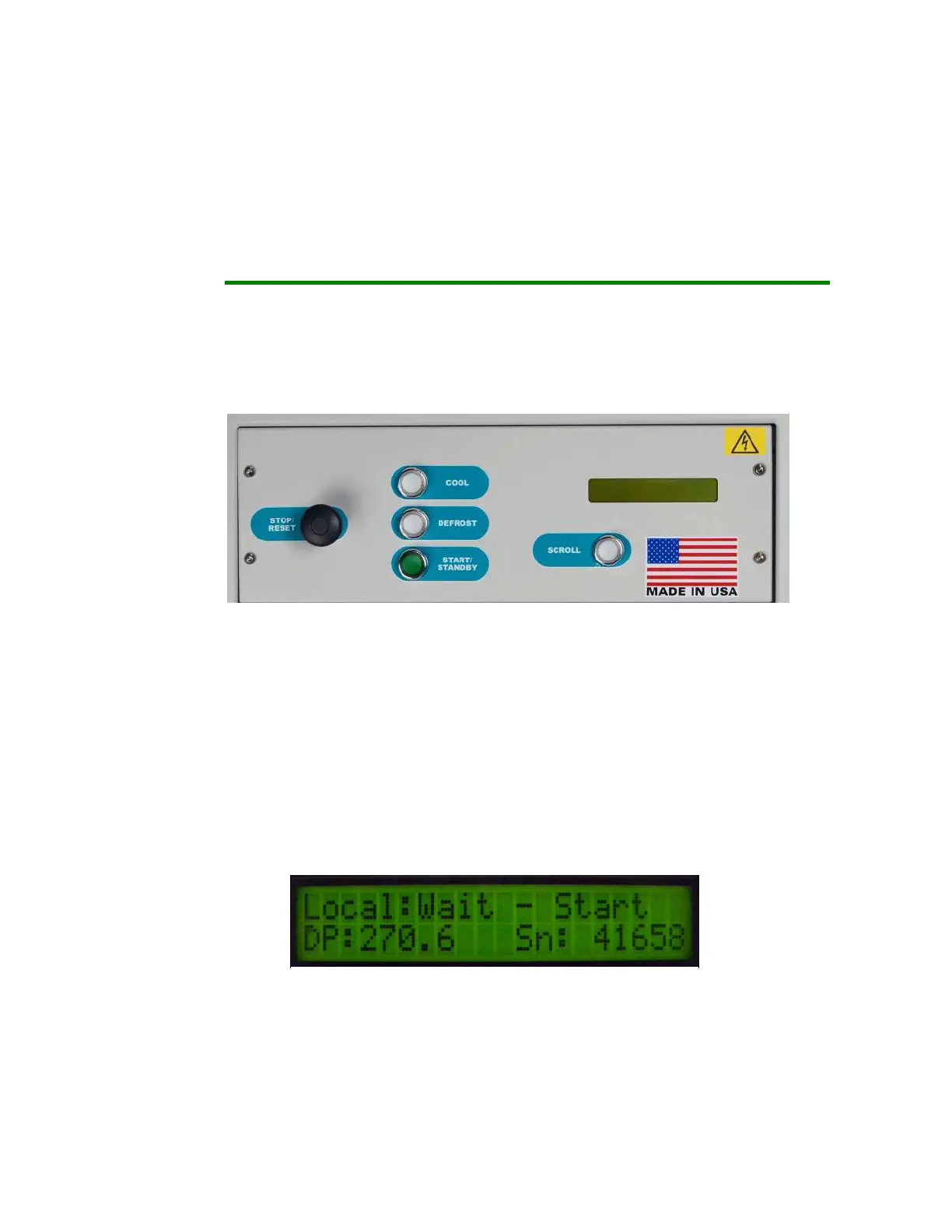

Fig 22 front Panel Push Buttons
(Single Coil Unit Shown)
Fig 23
The screen shot above indicates what is seen with the
unit in the wait mode
prio
r
to being turned on
