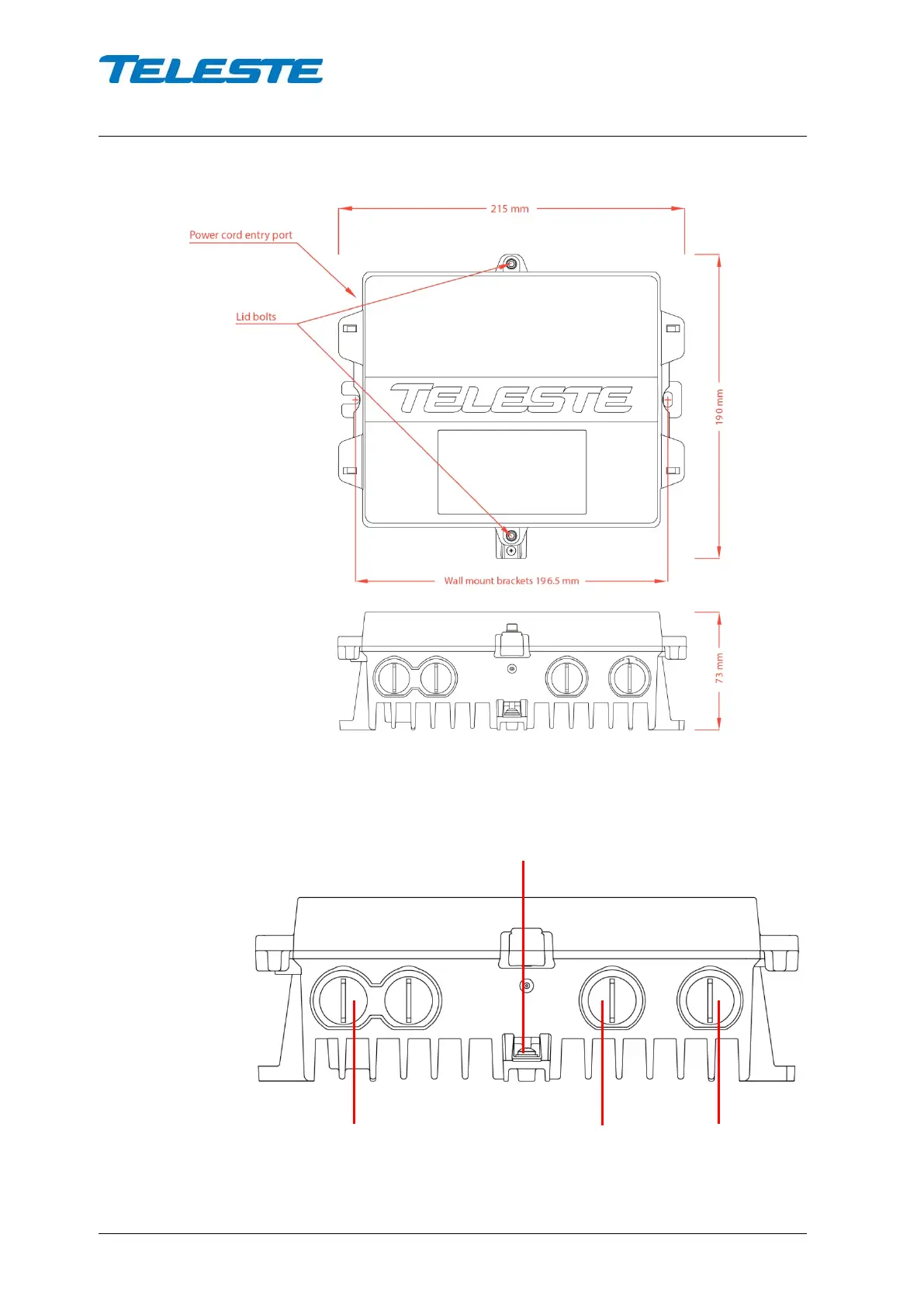

Figure 1. E3 housing dimensions – top and side view
Interfaces
9817024
Figure 2. Port locations
The E3 has three dedicated cable connection points: Input and two outputs.
Input port
Output port 1
Ground lug
Output port 2
