User Manual E3
59300623 Rev.001
5.4.2018 5(20)
Coaxial connections
The E3 amplifier requires pin-type connectors for all RF connections. The E3
amplifier has spring loaded seizure assemblies on coaxial ports that provide a
tight connection with precise alignment between contact points. All coaxial
output ports have a standard PG11 thread. Note that Teleste KDC327 (PG11–
F) and KDC328 (PG11-3.5/12) connectors fulfils the centre pin equipment
requirement for E series.
Suitable length for the centre conductor pin is approximately 21 mm (Figure 3).
Pin-type connectors, with pins extending from 19 mm to 23 mm from the
connector shoulder, require no trimming. Any longer pins must be trimmed
before inserting them into the housing. After cutting the pin, trim the sharp
edges. Using connectors with centre conductors pins exceeding 1.8 mm in
diameter will permanently damage spring loaded seizure assemblies. Ensure
that the centre conductor pin is not deformed, causing destruction of the spring
loaded seizure assembly. Note! When using KDC314 (PG11-5/8) adapter, the
length of connector’s centre connector pin must be 33 mm ±2 mm.
9817016

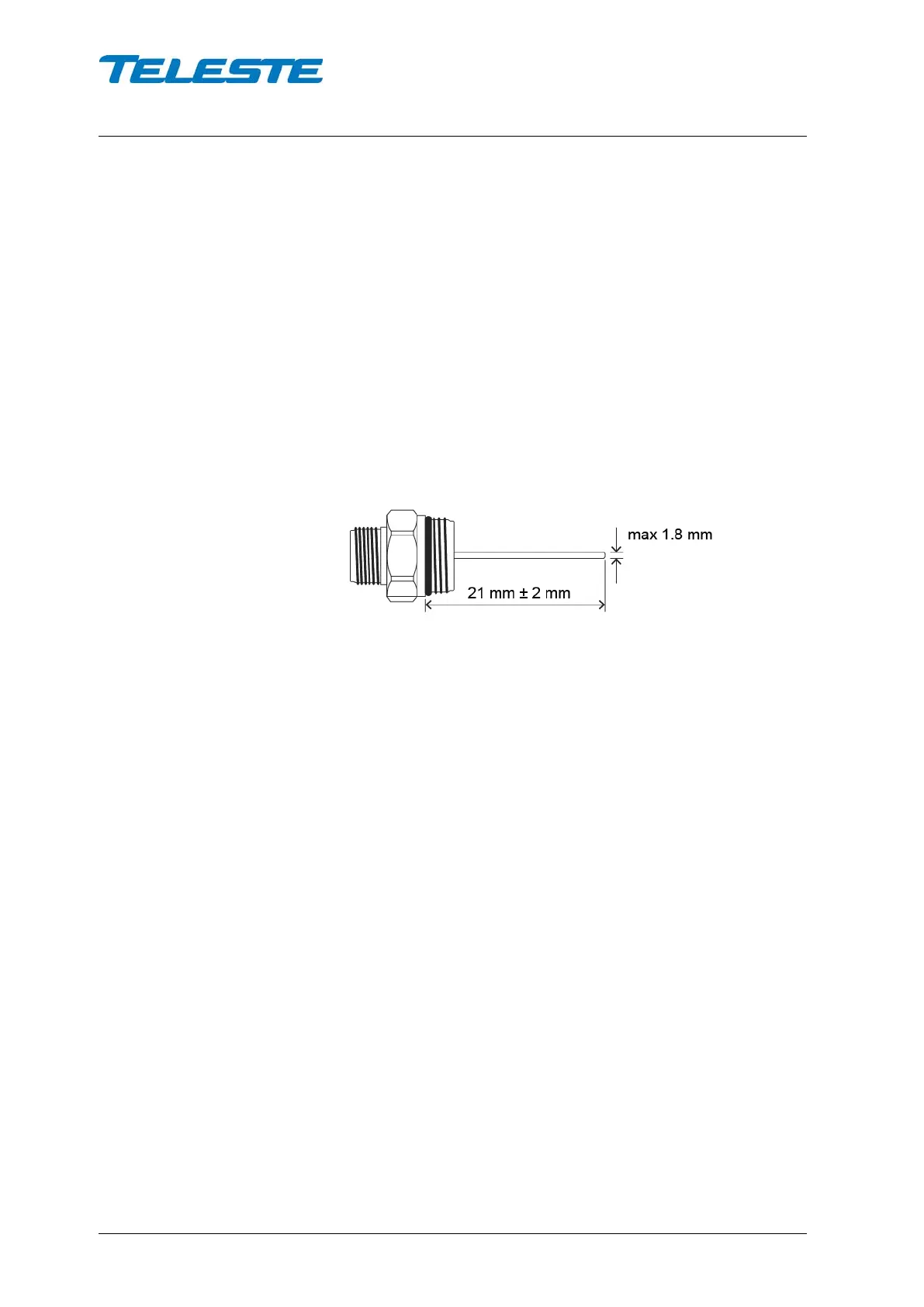

Figure 3. Centre conductor length
