iRIS8 - Addressable Fire Alarm Panel – Installation Manual
13
The joining of the panels to each other is all and the same for all metal boxes. One module structure can be built with
two, three or four boxes according the type and requirements of the fire installation. The modular structures allow
expanding the capability of already existing installations at low cost and with minimum additional expenses.
The necessary fixing elements for modular structures building, are included in the spare parts kit of the peripheral
panels.
• Prepare the metal boxes for mounting to each other as remove the plastic caps from the top or bottom side of
the box bottom according its position in the module structure. For module structures with three or four panels
you have to remove all plastic caps from the boxes mounted into the middle.
• Remove the metal caps from those holes used for running cables.

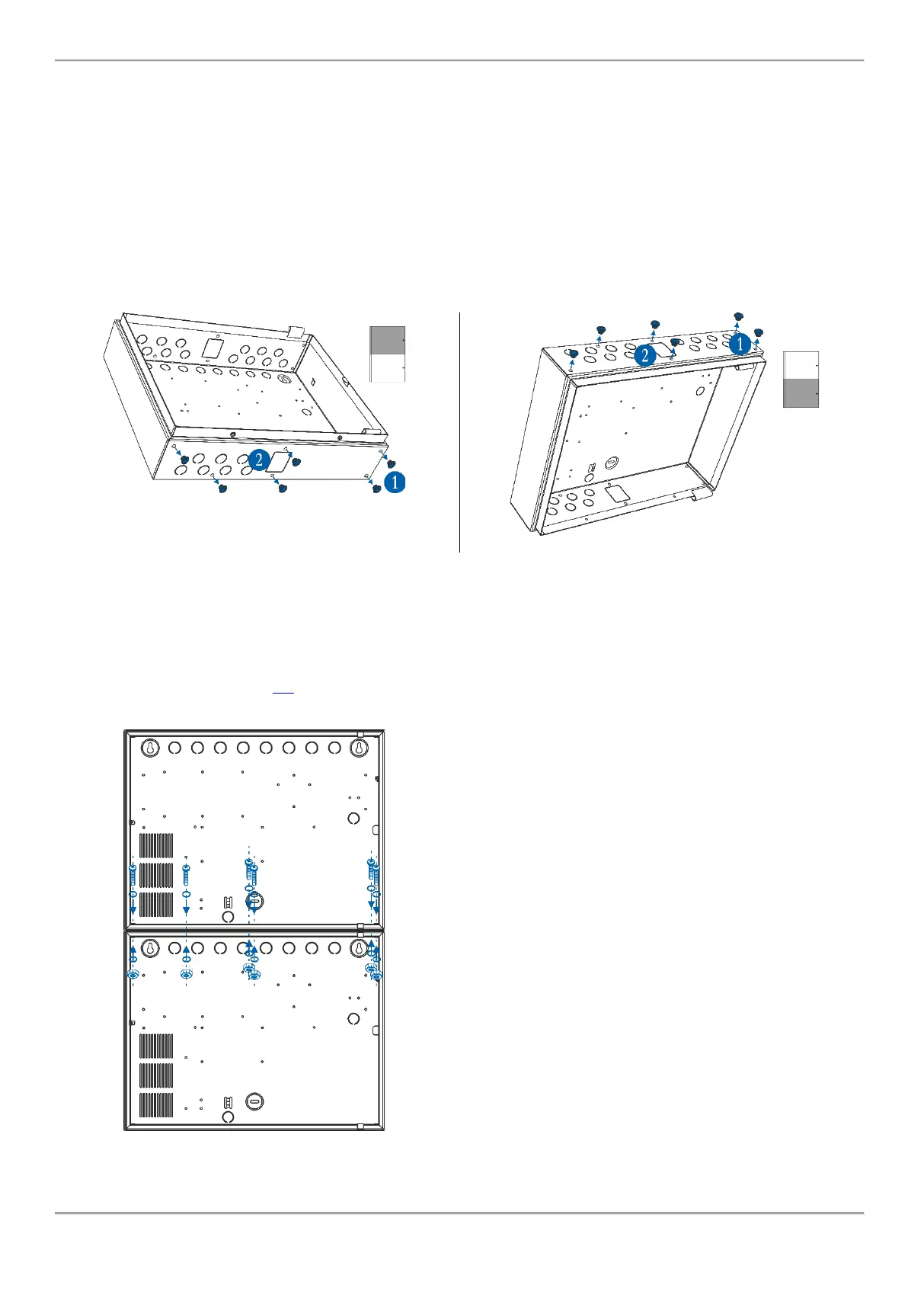

1 – Remove the plastic caps from the box bottom
2 – Remove the metal caps for running cables between the boxes.
Figure 10
• Follow the steps in item 2.2 and perform wall mounting of the boxes as locate them in module structure.
• Join the boxes to each other.
Set of fixing elements:
6 pcs - Screw M5x10 DIN 7985 A2
6 pcs - Nut M5 DIN934
12 pcs - Washer ø5,3 DIN 125
In case of module structure with three or four panels, fix
the boxes in the middle from both sides – up and down –
to the upper and lower box.
