Teletek electronics iRIS8 - Redundant Network Module; Connection of a Repeater

iRIS8 - Addressable Fire Alarm Panel – Installation Manual
27

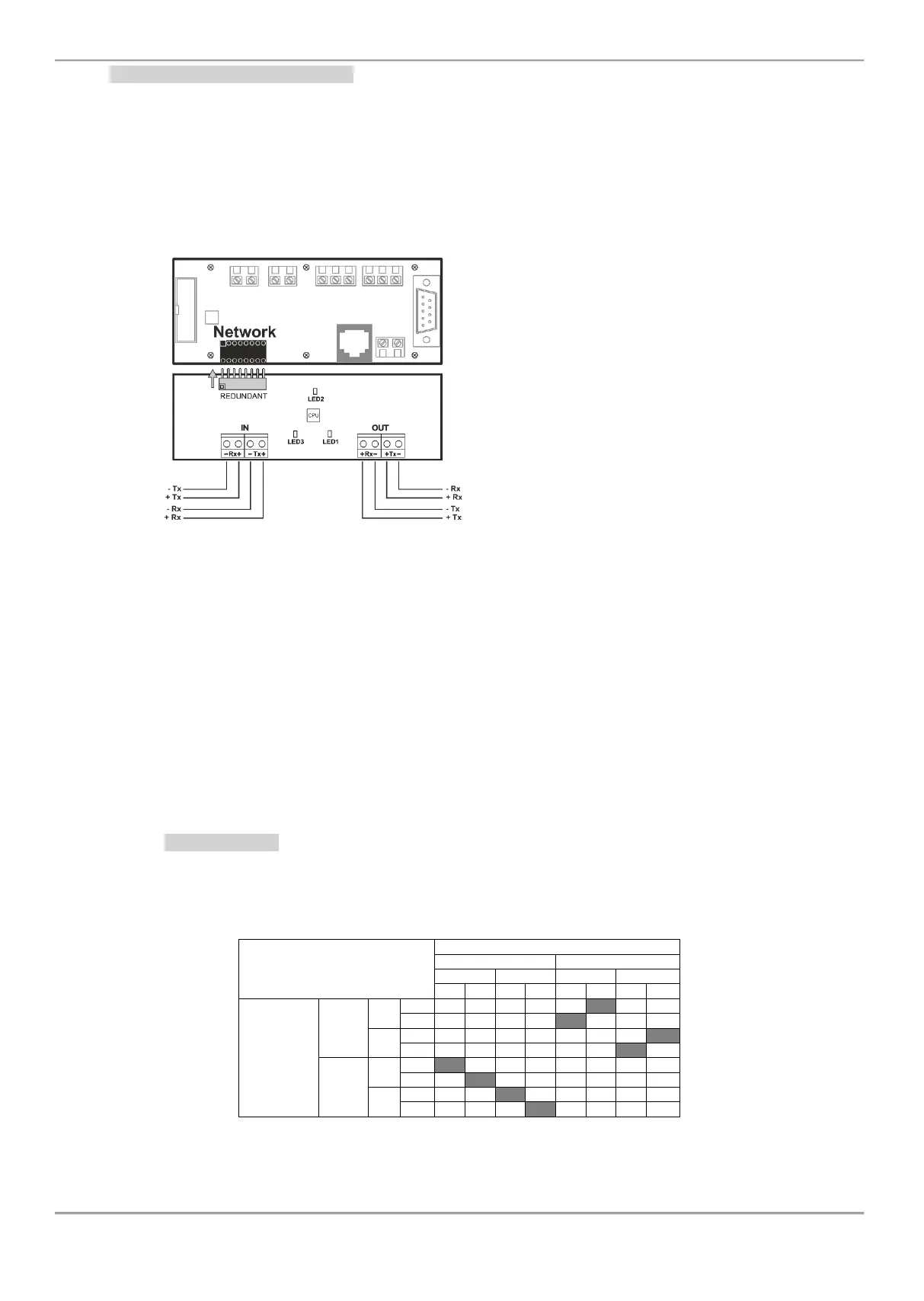

4.6.5. Redundant Network Module
The iRIS8 addressable fire alarm panel is designed with option for connection in a redundant network with other iRIS8,
IRIS PRO, SIMPO and IRIS/SIMPO Repeater panels (up to 64). The redundant network is based on RS485 interface.
The Redundant Network Module is an additional interface board, sold separately. The module is mounted to Network
connector of iRIS8 Interface module. The additionally mounted PCB should be fixed with screws to the metal supporting
frame. The maximum cable length between two network modules and/or repeater panel should not exceed 1000m.
To use the redundant module, the installer must set the Network type for all connected panels as “RS485” in installers
menus (access level 3): System-Programming-Panel-Network-Network Settings-Network Type.
Figure 32
4.7. Connection of a Repeater Panel
The Repeater panel is a control panel for remote indication of fire alarm, fault, trouble, warning and other type of events,
reported from iRIS8, IRIS PRO, SIMPO and other Repeater panels connected into one common network. The
IRIS/SIMPO Repeater can operate only as a part of a network. It repeats the status of the connected fire panels and
informs for events.
Up to 64 panels can operate in a single network, including IRIS/SIMPO Repeater, iRIS8, IRIS PRO and SIMPO fire
alarm panels. According the used Repeater model, the connection in the network between the panels can be realised
via RS485 interface or LAN:
• Model IRIS/SIMPO Repeater TFT – RS485 interface or LAN
• Model IRIS/SIMPO Repeater – RS485
Only one type of connection can be used in a single network.
RS485 Interface
The RS485 interface is built-in the repeater panel and the connection with iRIS8 is realized via Redundant network
module (Figure 32) connected to “NETWORK” connector on the interface module of iRIS8.
The following table represents the correspondence of Tx/Rx terminal connections for IN and OUT communication lines.
Observe the polarity of
the RS485 interface
connection!
IRIS/SIMPO Repeater
IN
OUT
Tx
Rx
Tx
Rx
+
-
+
-
+
-
+
-
Redundant
Network
Module
IN
Rx
-
+
Tx
-
+
OUT
Rx
+
-
Tx
+
-
The repeater panel is powered up from an undependable external power supply 24 VDC - Figure 33.
iRIS8
(Interface module)
Redundant
Network Module
Redundant Network Module Basic Information
Technical Characteristics:
Communication - RS485
Twisted pair cable:
- Length - max. 1000m (between two modules)
- Cross Section - 0.5 - 2.5mm
2
LED Indication:
LED1 - Output communication
LED2 - Panel-Module communication
LED3 - Input communication
Operation Modes:
Normal - Blinking LEDs
Trouble - Lighting on LEDs
