3.3. Configuration of the Basic Modules
The iRIS8 series panels are designed with a range of basic modules organized in factory configuration according the

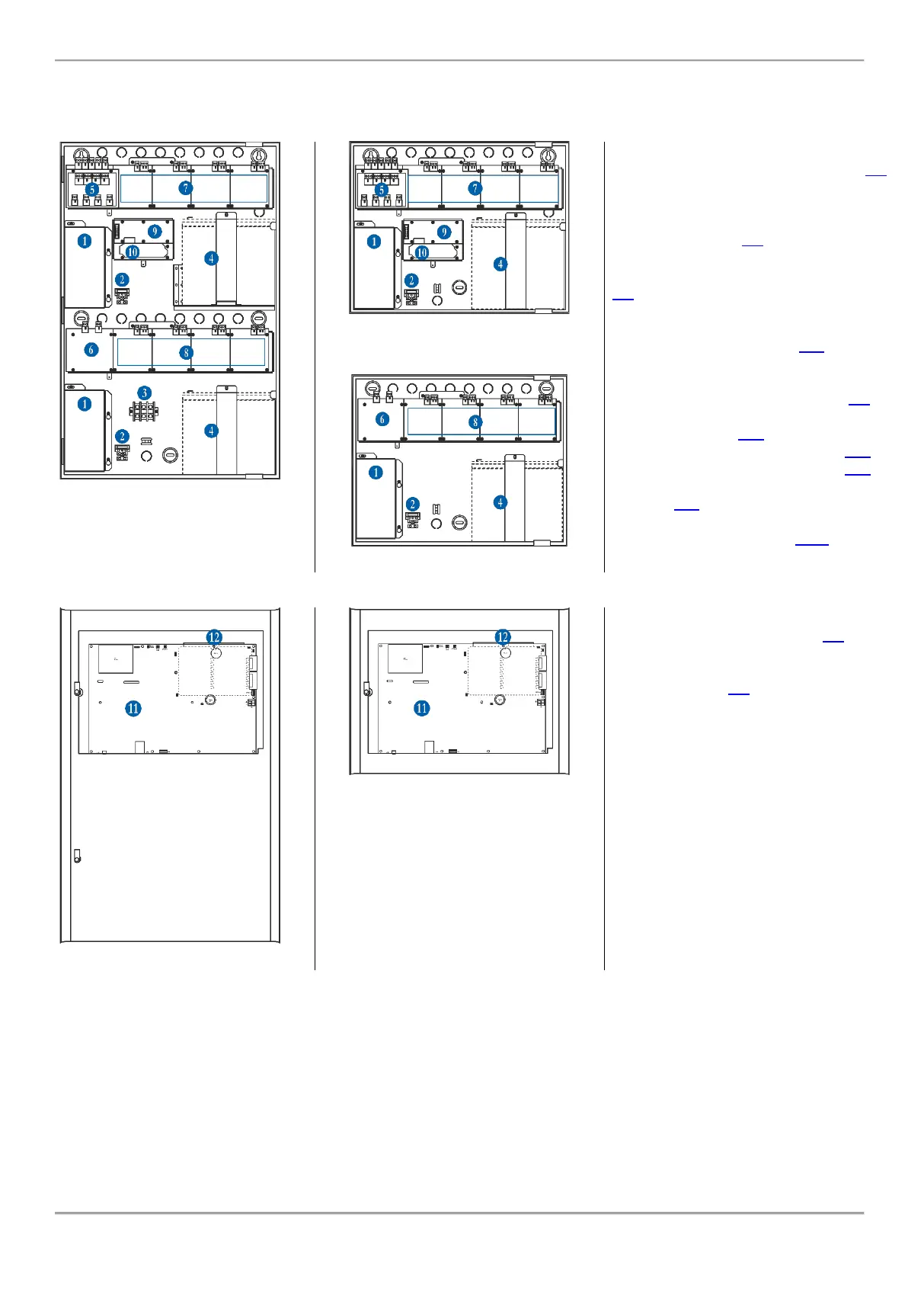

model – Figure 14.
iRIS8 B – Box bottom
iRIS8 S – Box bottom
iRIS8 Ext – Box bottom
Elements’ description:
1 - Main power supply unit - see item 4.1.
2 - Terminal for connection between the
main power supply and a power source.
A slow type fuse 4A is situated into the
terminal - see item 4.1.
3 - Modular terminal block with wiring
orientation 180° (wire-to-wire) - see item
4.2.
4 - Place for accumulator battery
12V/18Ah with vertical supporting
tightening clamp - see item 4.1.
5 - Monitored Outputs Control Module
(OUT1) with suplementary, factory
mounted, Relay Module - see item 4.3.
6 - Monitored Outputs Control Module
(OUT2) - see item 4.4.
7 - Loop expanders 1-4 - see item 4.5.
8 - Loop expanders 5-8 - see item 4.5.
9 - Interface communication module -
see item 4.6.
10 - Place for connection of Redundant
network module - see item 4.6.5.
iRIS8 B – Front door back side
iRIS8 S – Front door back side
11 – Main (Indication LCD and LED)
control module PCB - see item 4.8.
12 - Openings for changing the text
labels with description of the system
status - see item 3.2.
(Note: iRIS8 panels are delivered with
printed PVC text labels in different
languages. The labels are cut with the
pointed out dimensions and are easily
replaced during the installation.)
Figure 14
