21
The configuration, shown in Figure 10, the US-2002 is not located near the system power supplies (SPS2001, PS2001L, etc.).
The PA-KP local power supply is optional and can be used to power a single intercom station. When a PA-KP is connected to
the US-2002, the US-2002 automatically disconnects from system power. This allows more system power for belt packs and
other intercom stations. Also, when the US-2002 is powered by a PA-KP, it can be operated over a greater distance as a remote
station.

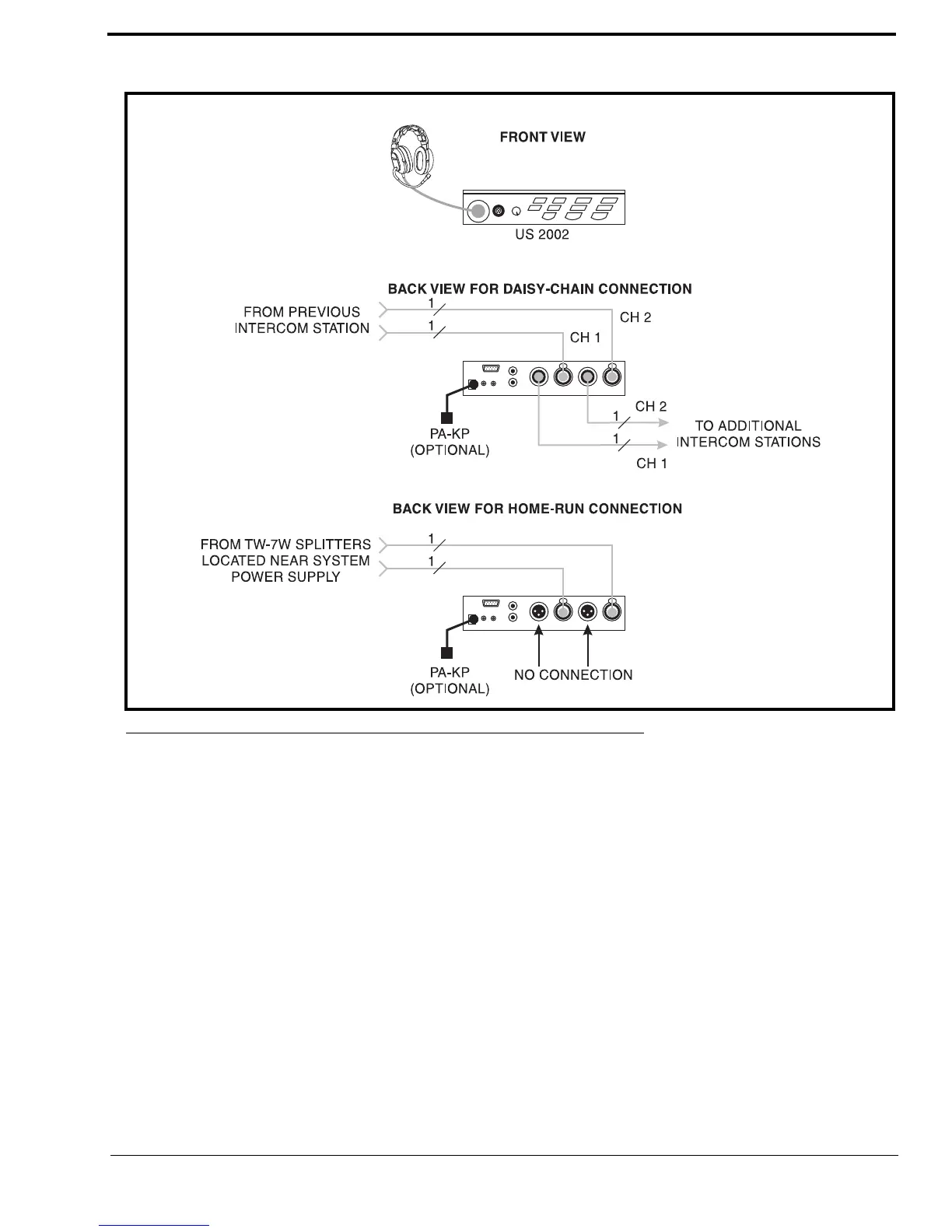

FIGURE 10. Typical Remote Headset Station.
NOTE: For further
information about
cables, see
Figure 15 on
page 26.
