22

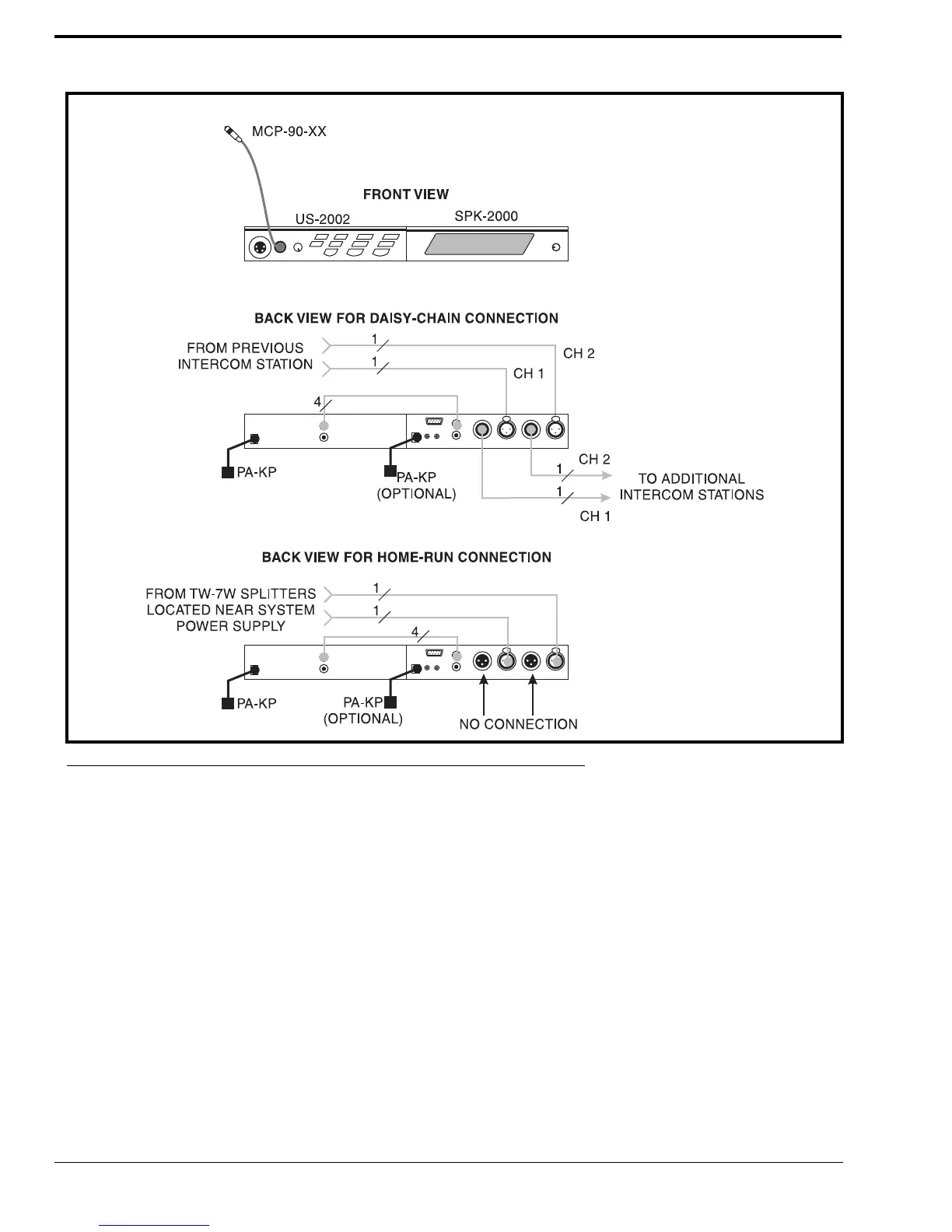

The configuration, shown in Figure 11, is similar to the one on the previous page, except a Telex MCP-90-XX microphone and
a SPK-2000 speaker are used instead of a headset. Make sure the intercom DIP switches are set for monaural speaker
operation (default setting) as described in “Monaural or Binaural Operation DIP Switches” on page 10. A PA-KP local power
supply is required for the SPK-2000, but is optional for the US-2002. When a PA-KP is connected to the US-2002, the
US-2002 automatically disconnects from system power. This allows more system power for belt packs and other intercom
stations. Also, when the US-2002 is powered by a PA-KP, it can be operated over a greater distance as a remote station.
FIGURE 11. Typical Remote Monaural Speaker Station.
NOTE: For further
information about
cables, see
Figure 15 on
page 26.
