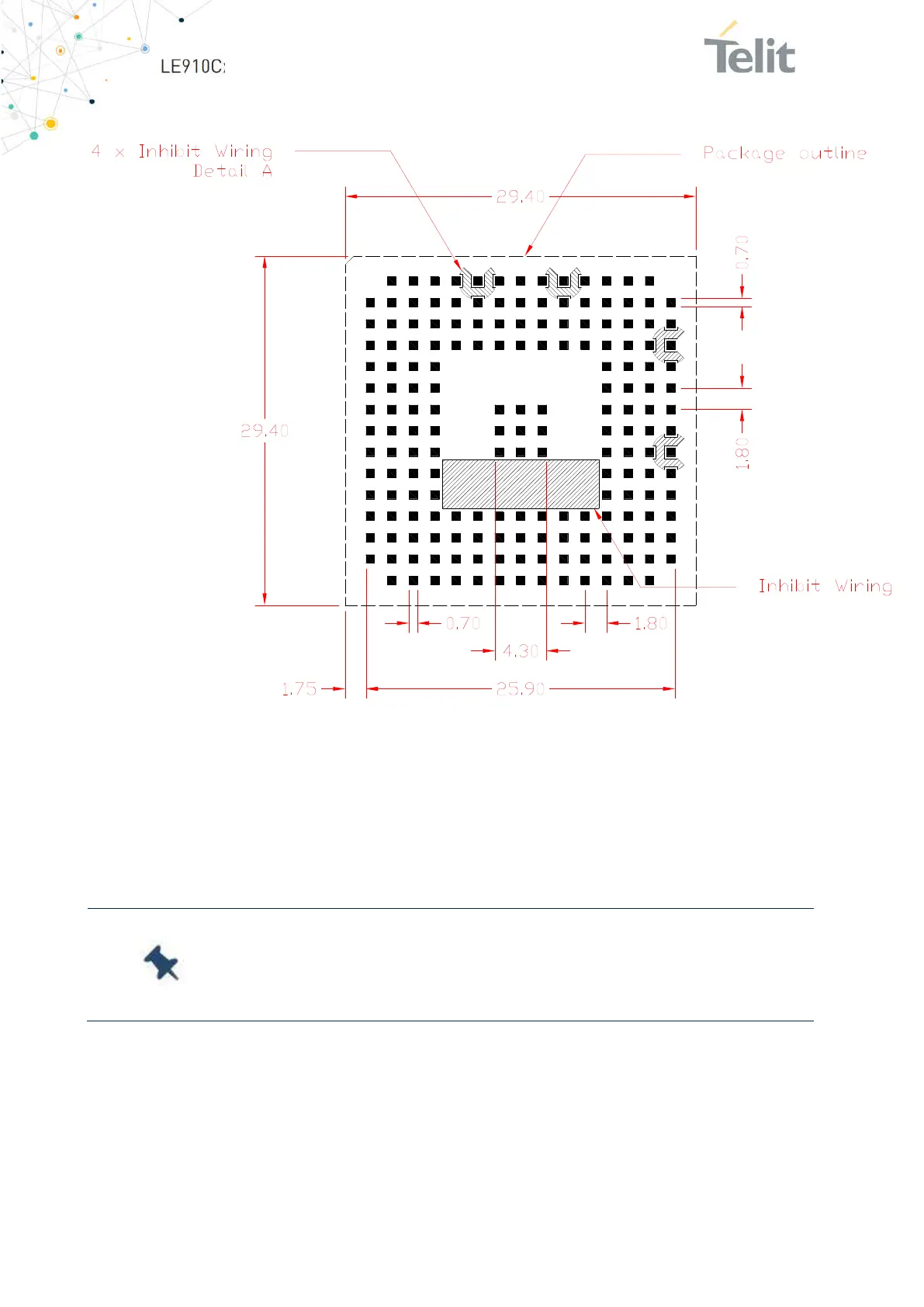

Figure 31-1: Recommended Footprint, Copper pattern - Top View, 181 pads for LE910Cx-WWX only
(dimensions in mm)
Note: LE910Cx-WWX footprint is same as LE910Cx variants but PCB
size is differenct others.
Please, refer to above dimension for LE910Cx-WWX.
