LE910Cx Hardware Design Guide
1VV0301298 Rev.40 Page 90 of 149 2023-03-16
Not Subject to NDA
9. MISCELLANEOUS FUNCTIONS
Indication of Network Service Availability
The STAT_LED pin status shows information on the network service availability and call
status. In the LE910Cx module, the STAT_LED usually needs an external transistor to
drive an external LED.
The STAT_LED does not have a dedicated pin. The STAT_LED functionality is available on
GPIO_01 pin (by default GPIO_01 functions as STAT_LED)
See the AT Command User Guide for details about the AT#SLED section.
LED Status Device Status
Permanently off Device off
Blinking
Blinking 1s on and 2s off Registered in idle
Blinking time depends on network
condition in order to minimize
power consumption
Registered in idle with power saving
Permanently on Not registered
Table 39: Network Service Availability Indication

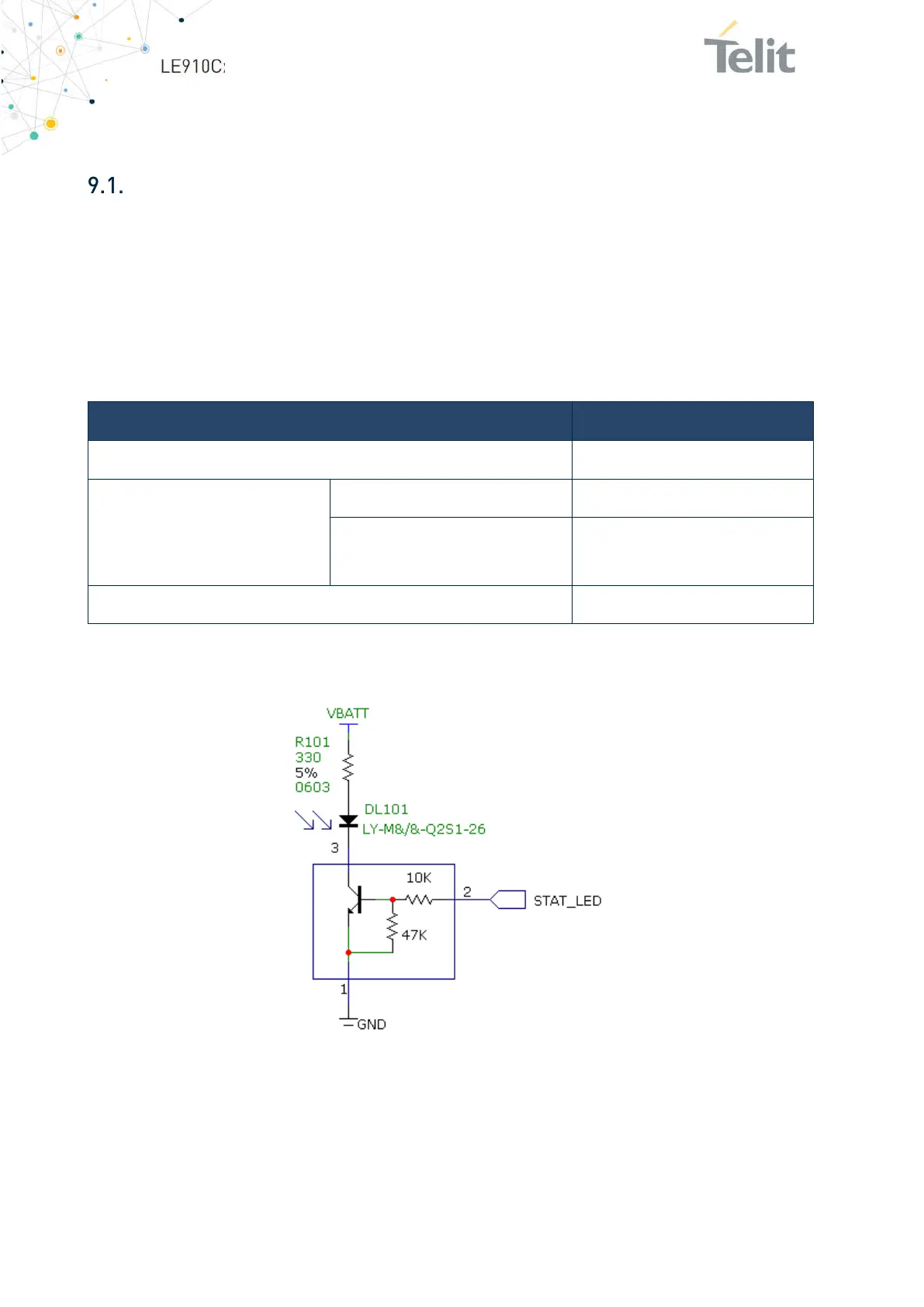

Figure 24: Status LED Circuit Example
