LE910Cx Hardware Design Guide
1VV0301298 Rev.40 Page 103 of 149 2023-03-16
Not Subject to NDA
Solder Resist pattern

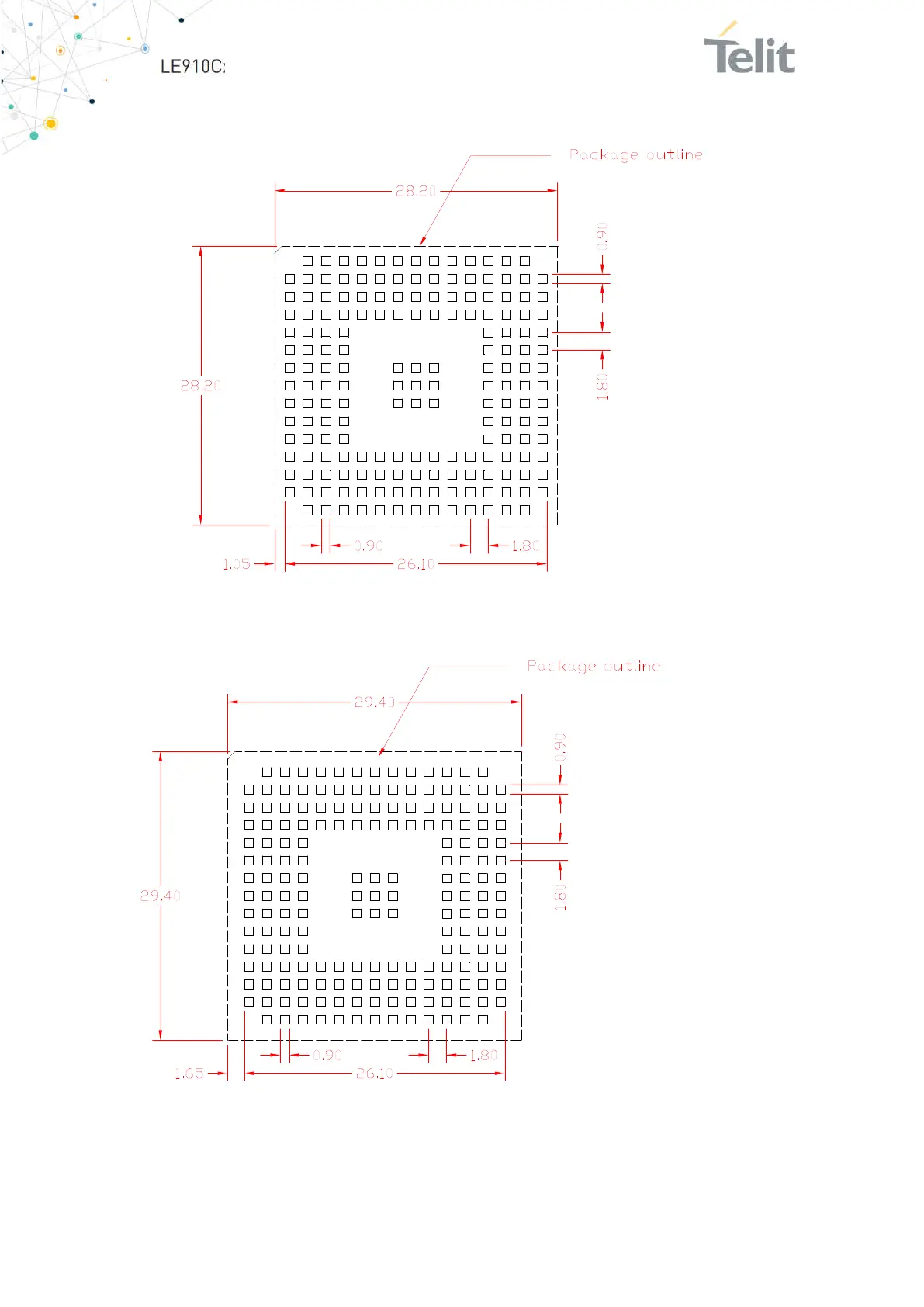

Figure 33: Recommended Footprint, Solder Resist pattern - Top View, 181 pads for LE910Cx variants
except for LE910Cx-WWX (dimensions in mm)
Recommended Footprint, Solder Resist pattern - Top View, 181 pads for LE910Cx-WWX only (dimensions
in mm)
