LE910Cx Hardware Design Guide
1VV0301298 Rev.40 Page 118 of 149 2023-03-16
Not Subject to NDA
The LE910Cx-WWX(D) can be packaged on reels of 4 00 pieces each.

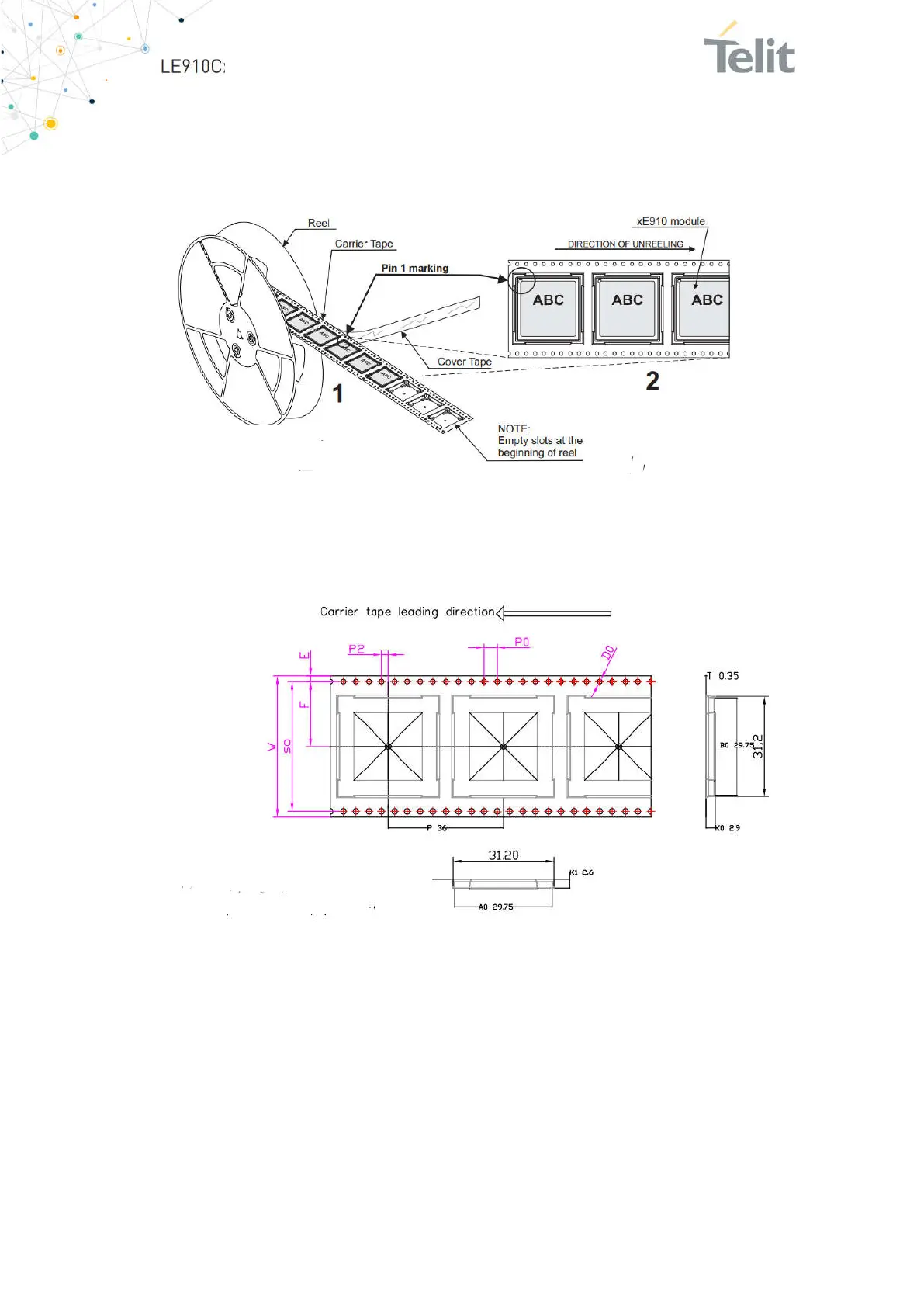

See figure for module positioning into the carrier.
Figure 47: Module Positioning into the Carrier
Figure 48: WWX Carrier Tape Detail
