ME910C1 HW User Guide
1VV0301351 Rev.8 Page 55 of 99 2018-09-28
• 3 receivers

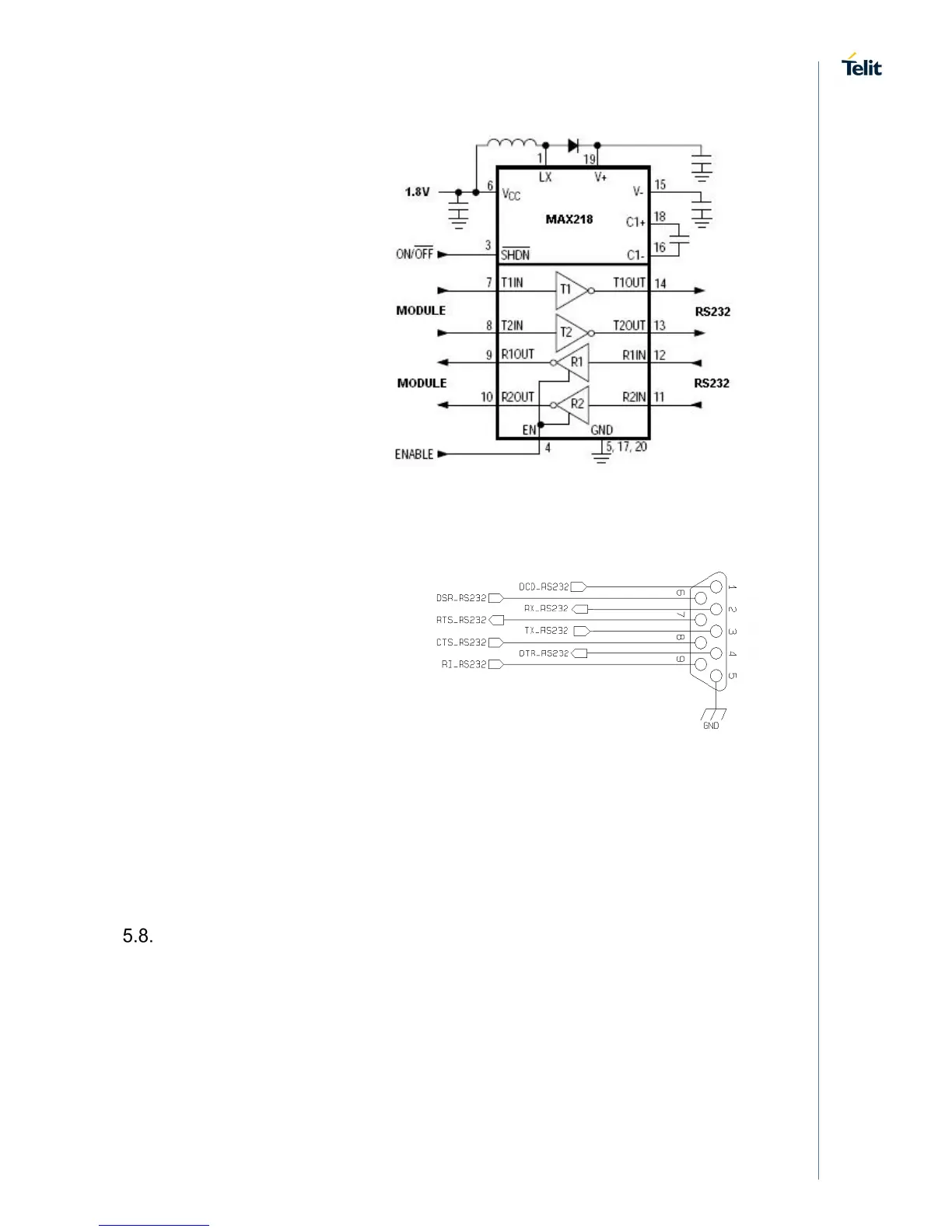

An example of RS232 level
adaptation circuitry could be done
using a MAXIM transceiver
(MAX218)
In this case the chipset is capable
to translate directly from 1.8V to
the RS232 levels (Example done
on 4 signals only).
The RS232 serial port lines are usually connected to a DB9 connector with the following
layout:
General purpose I/O
The ME910C1 module is provided by a set of Configurable Digital Input / Output pins
(CMOS 1.8V). Input pads can only be read; they report the digital value (high or low)
present on the pad at the read time. Output pads can only be written or queried and set
the value of the pad output.
An alternate function pad is internally controlled by the ME910C1 firmware and acts
depending on the function implemented.
