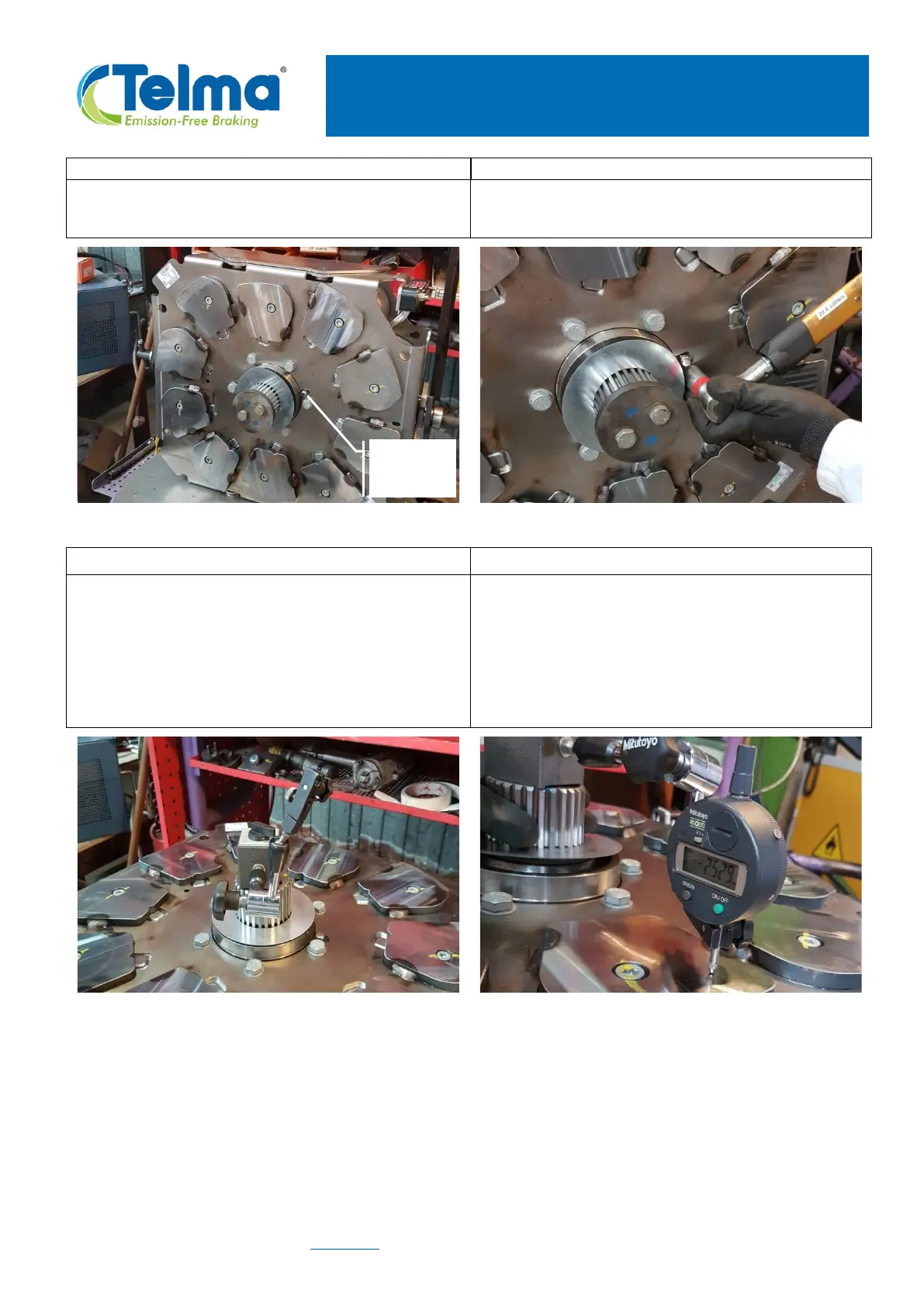

Turn the retarder in order to have the gearbox side
in front of you (view on vent cap).
Tighten the 6 hub securing screws:
Tightening torque: 68 Nm ± 20% (50 lb.ft ± 20%)
Toggle again the stator onto the wood blocks in
order to check the stator flatness.
Check the axial run out of the stator by using a dial
gauge with magnetic base.
Maximum allowed value: 0.40 mm
Note: in case that the measured value is above
this limit, check that no coil pressure washer is
clamped between a core and a pole shoe or
consult the TELMA technical department.
