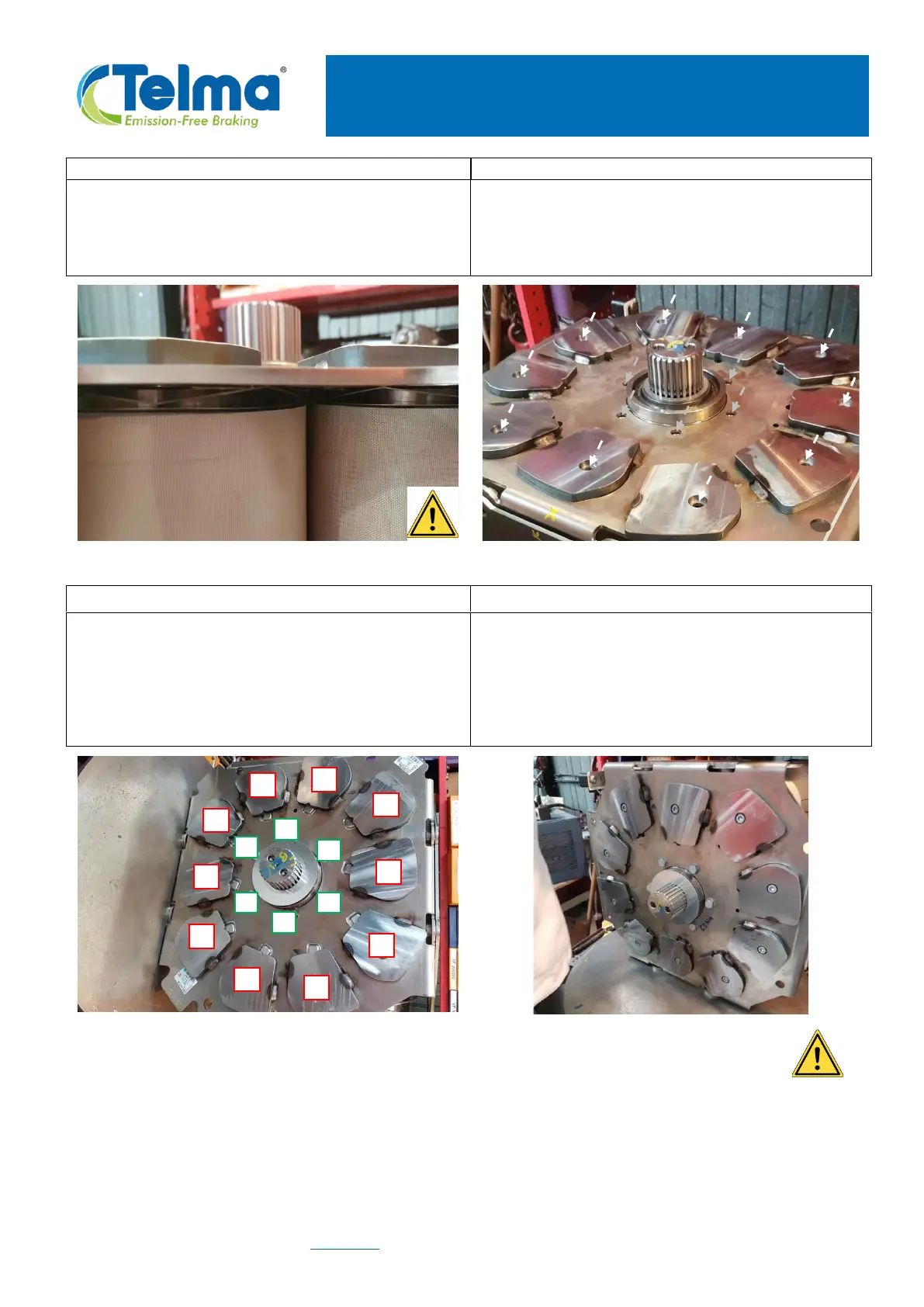

On axle side, relocate the pole shoes plate over
the cores.
Take care that the spring washers remain well in
place around the cores and do not get clamped.
Put in place, by hand, 16 new screws:
- 6 screws with spring washers for the hub
- 10 screws for the pole shoes.
Using the order shown below, tighten:
- first the 10 pole shoe securing screws with a
Torx® TX40 socket:
Tightening torque: 68 Nm ± 20% (50 lb.ft ± 20%)
- afterwards the 6 hub securing screws:
Tightening torque: 45 Nm ± 20% (33 lb.ft ± 20%)
Put the retarder in vertical position.
