Chapter 1 - System DescriptionThe BreezeCOMPACT Solution
Chapter 1: System Description
The BreezeCOMPACT Solution
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
BreezeCOMPACT System ManualBreezeCOMPACT System Manual
18
1.1.2 BreezeCOMPACT Models
Table 1: BreezeCOMPACT Part Numbers, Frequencies and Tx Power
1.1.3 BreezeCOMPACT Product Topologies
BreezeCOMPACT R5.0 and above supports three deployment topologies:
 Single Sector, Single Carrier
 Single Sector, Single Carrier
 Two Sectors, Two Carriers (One Carrier per Sector)

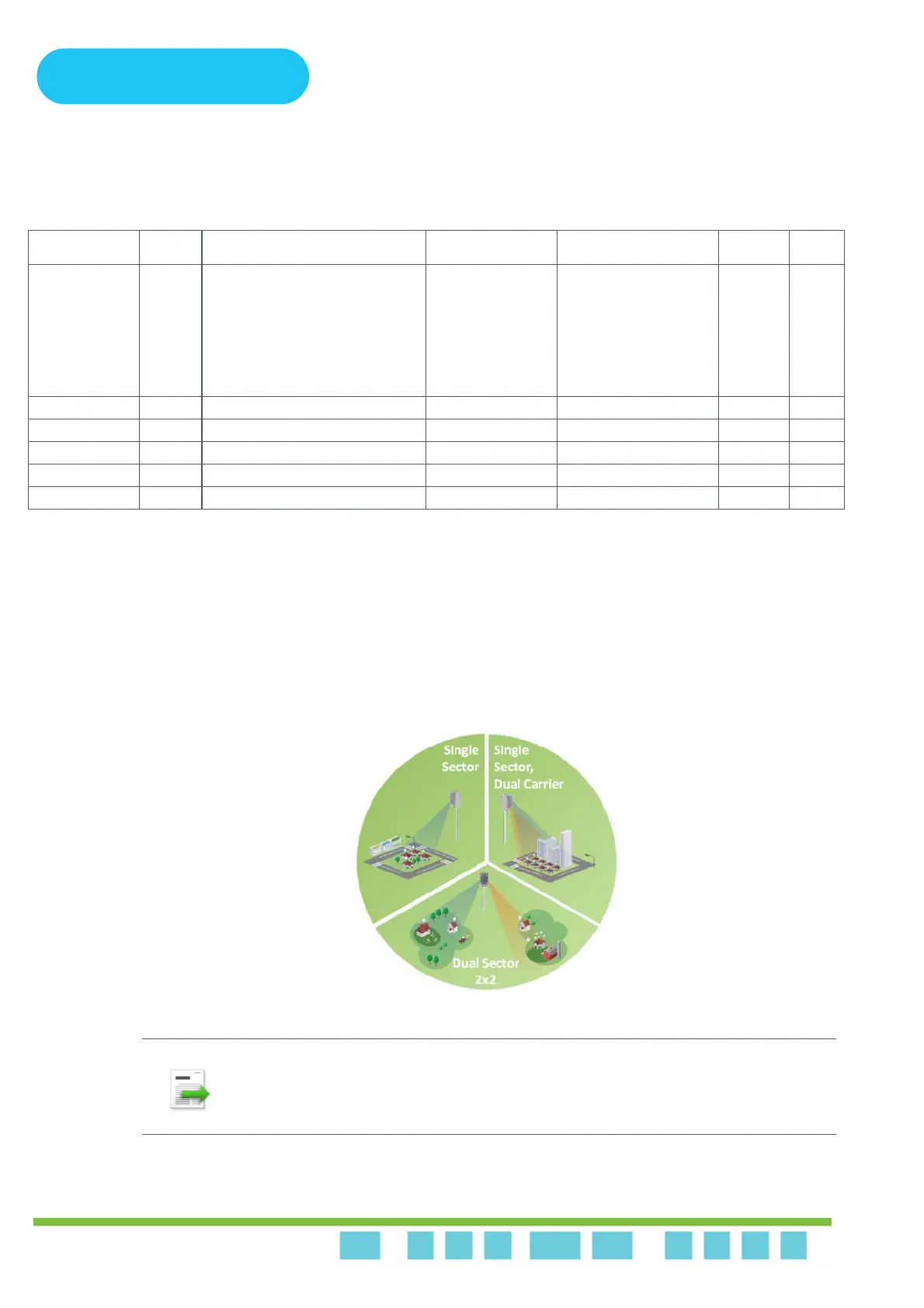

Figure 1: BreezeCOMPACT Product Topologies
The following sections describe each of these topologies.
Platform P/N Telrad Part Number (PN) LTE Band Frequencies
Tx Power
per Port
Ports
Rx/Tx
Compact1000 735270 CMP.XT-BS-3.4-3.7
Band 42
(Full Support)
+
Band 43
(Low Support)
3400–3700 MHz
Band 42: 3400–3600
Band 43: 3600–3700
Band 43 3700–3800 is not
supported.
30 4x4
Compact1000 735272 CMP.XT-BS-3.3-3.5 3300–3500 MHz 30 4x4
Compact1000 735273 CMP.XT-BS-3.6-3.8 Band 43 3600–3800 MHz 30 4x4
Compact1000 750270 CMP1000-5470-5950MHz 5470–5950 MHz 20 4x4
Compact2000 735271 CMP.HP-BS-3.5 Band 42 3400–3600 MHz 37 4x2
Compact3000 725270 CMP3000-B41-2496-2690MHz Band 41 2496–2690 MHz 40 4x4
INFORMATIO
N
In the current release, BreezeCOMPACT1000 and 3000 support all three topologies.
Note that BreezeCOMPACT2000 supports only the first topology (Single Sector, Single Carrier).
