Chapter 1 - System DescriptionThe BreezeCOMPACT Solution
Chapter 1: System Description
The BreezeCOMPACT Solution
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
BreezeCOMPACT System ManualBreezeCOMPACT System Manual
19
1.1.3.1 Single Sector, Single Carrier
This is the basic configuration based on a single BS that supports a single sector 4 Tx/4 Rx with bandwidth of 5, 7, 10 &
20MHz (LTE). This configuration is recommended for achieving the aggregated power of 4 Tx ports as well as improved
diversity in Tx and Rx. This configuration is common for three-sector sites with a frequency reuse of 3.

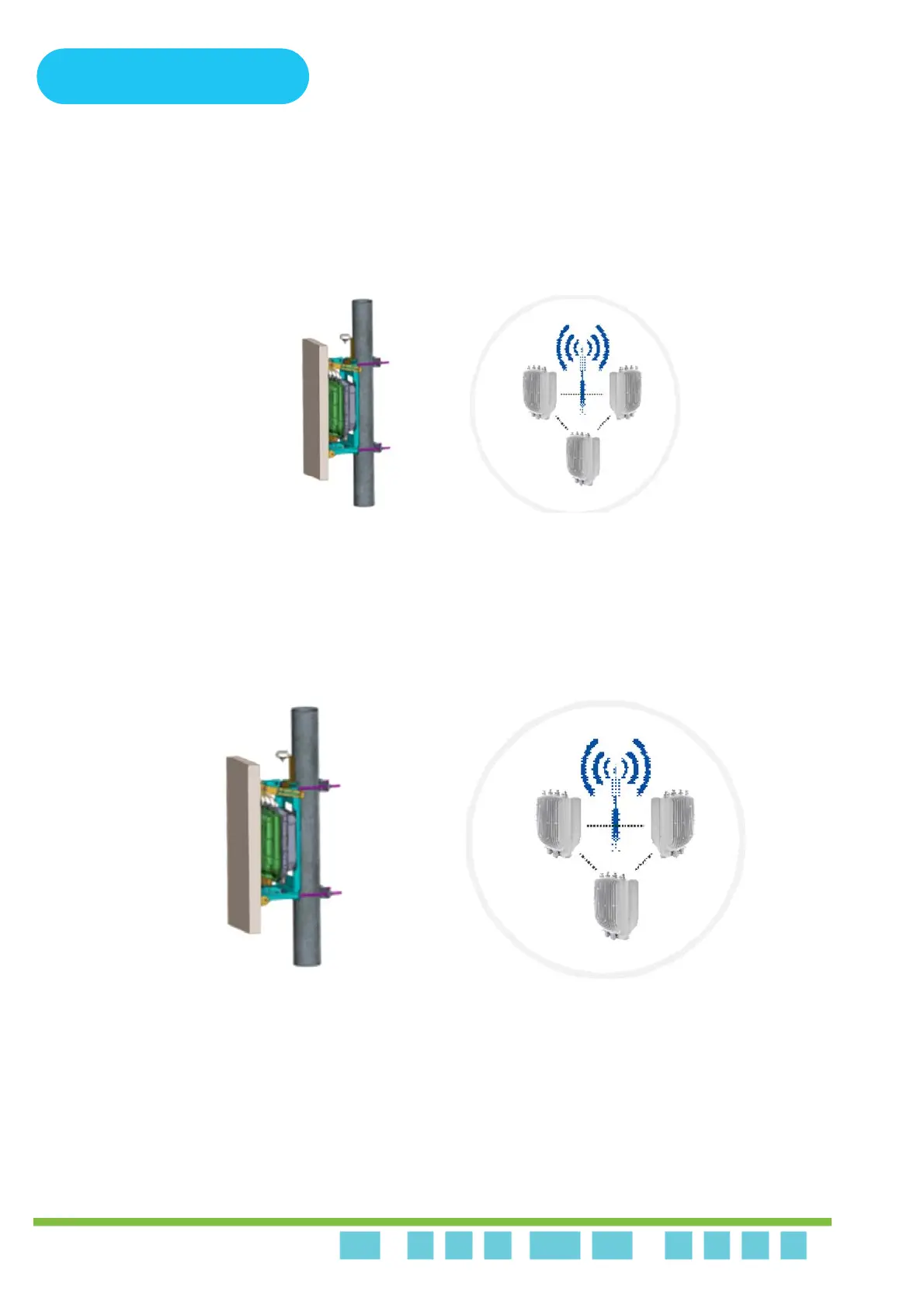

Figure 2: Single Sector, Single Carrier
1.1.3.2 Single Sector, Dual Carrier
Two BSs support a single sector using two different carriers with a total bandwidth of 20 (10+10), 14 (7+7) or 10 (5+5)
MHz. The BreezeCOMPACT is connected to one 4x4 antenna. Each carrier can be configured for a different frequency.
Upon setting this mode, the load-balancing function balances according to the number of subscribers.
Figure 3: Single Sector, Dual Carrier
1.1.3.3 Two Sectors, Two Carriers (One Carrier per Sector)
Two BSs support two sectors, each with a bandwidth of 5, 7 or 10 MHz. Each sector is connected to a different 2x2 antenna
directed to two sectors.
This configuration is commonly used with frequency reuse 2, where the two antennas connected to the BreezeCOMPACT
