LTE Outdoor CPE | User Manual P. 70
Network | Port Management | Port Trigger (Available in NAT, Tunnel
Mode)

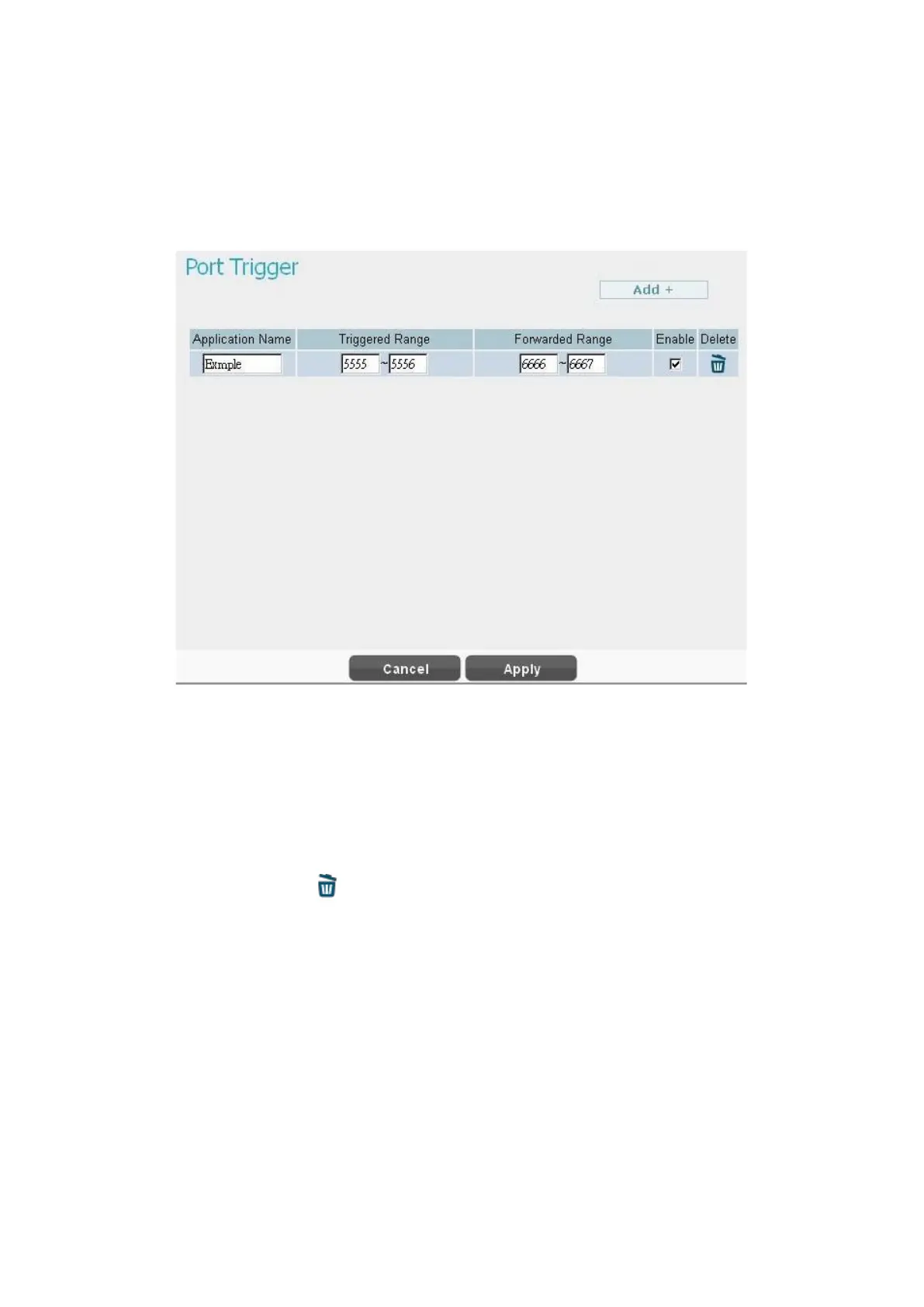

Network > Port Management > Port Trigger
The table allows you to configure Port Trigger rules. Port Trigger is a way to automate port
forwarding. Outbound traffic on predetermined ports ('trigger port') causes inbound traffic to
specific ports (call it port P here) to be dynamically forwarded to the host which uses trigger
port. Port P does not open if port triggering is not activated. Click “Add +” button to add a new
rule, clicking “Delete” icon ) to delete the rule.
●
Application Name: Name of the port trigger rule.
●
Triggered Range: Traffic passing through the port in the triggered range would
automatically open the forwarded port in the forwarded range. The ports in the
triggered range are LAN ones.
●
Forwarded Range: The ports that would be automatically opened when traffic pass
through ports in the triggered range. The ports in the triggered range are WAN port.
