LTE Outdoor CPE | User Manual P. 79
Firewall | L3 MGMT Filter

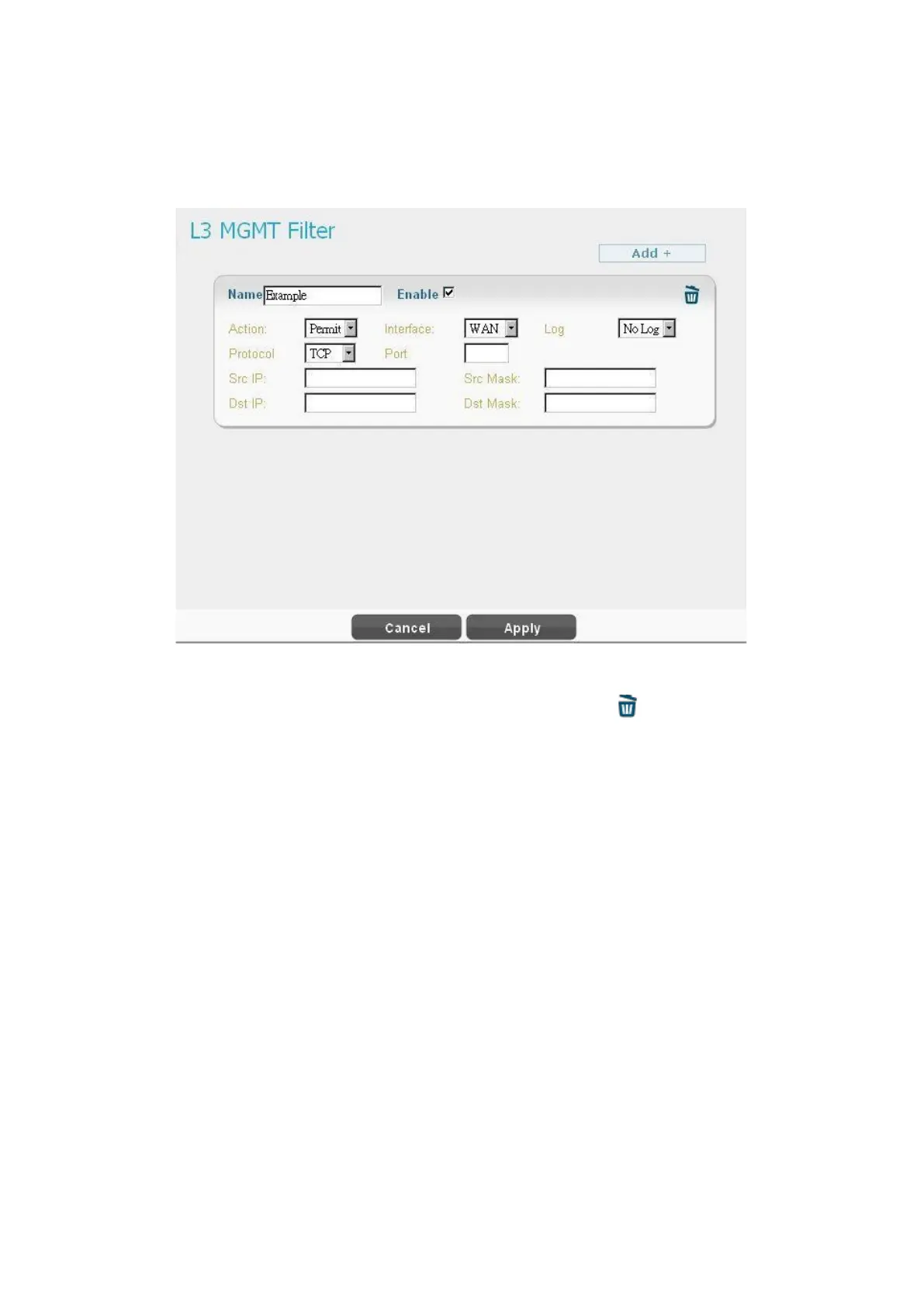

Firewall > L3 MGMT Filter
L3 MGMT filter disallow/allows packets with certain ports and IP address which is sent to CPE.
● Click “Add +” button to add a new rule, clicking “Delete” icon ) to delete the rule.
●
Name: The name of the rule.
●
Action: Select “Permit” or “Deny” to allow the access or reject the traffic.
●
Interface: Select which interface users want to block/allow the traffic from. Available
options are “WAN”, “LAN”, or “BOTH”.
● Log: Select “Log” to have log records, or “No Log” to disable it. ( users would not see it,
log is printed in the console. )
●
Protocol: Protocol to filter. Available options are TCP, UDP, ICMP, or ANY.
●
Port: The port number to filter.
●
Src IP: The source IP to filter.
●
Dst IP: The destination IP to filter.
●
Src Mask: It would be used with Src IP to form a subnet.
