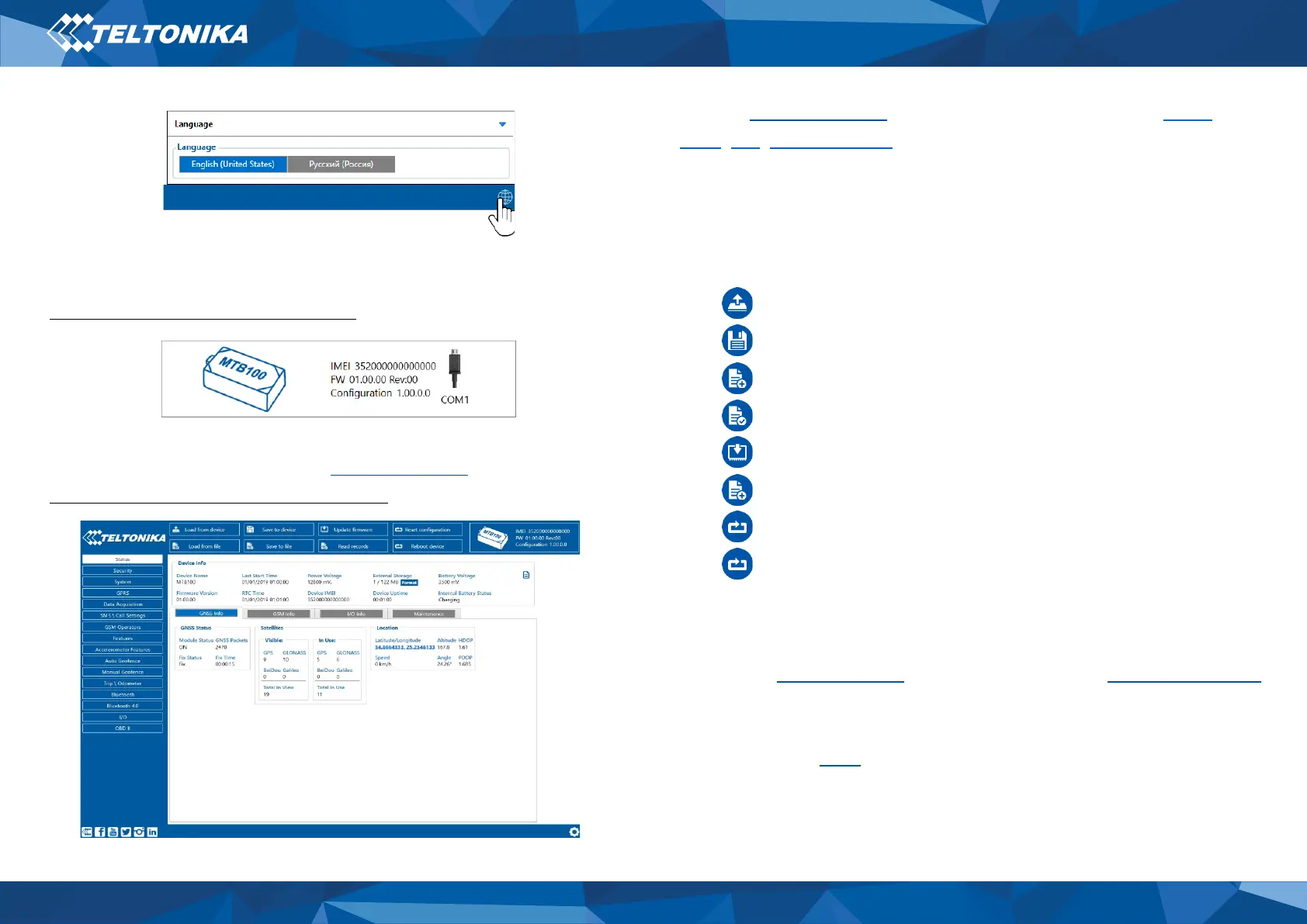

Configuration process begins by pressing on connected device
(Figure 9 Device connected via USB).
After connection to Configurator Status window will be displayed
(Figure 10 Configurator Status window).
Various Status window tabs display information about GNSS,
GSM, I/O, Maintenance and etc. MTB100 has one user editable
profile, which can be loaded and saved to the device. After any
modification of configuration the changes need to be saved to
device using Save to device button. Main buttons offer following
functionality:
1. Load from device – loads configuration from device.
2. Save to device – saves configuration to device.
3. Load from file – loads configuration from file.
4. Save to file – saves configuration to file.
5. Update firmware – updates firmware on device.
6. Read records – reads records from the device.
7. Reboot device – restarts device.
8. Reset configuration – sets device configuration to
default.
Most important configurator section is GPRS – where all your
server and GPRS settings can be configured and Data Acquisition
– where data acquiring parameters can be configured.
More details about MTB100 configuration using Configurator can
be found in our Wiki.
Figure 9 Device connected via USB
Figure 8 Language selection
Figure 10 Configurator Status window
