Section 3 - Step-By-Step Assembly
Temp-Cast 2000 Installation Manual
17

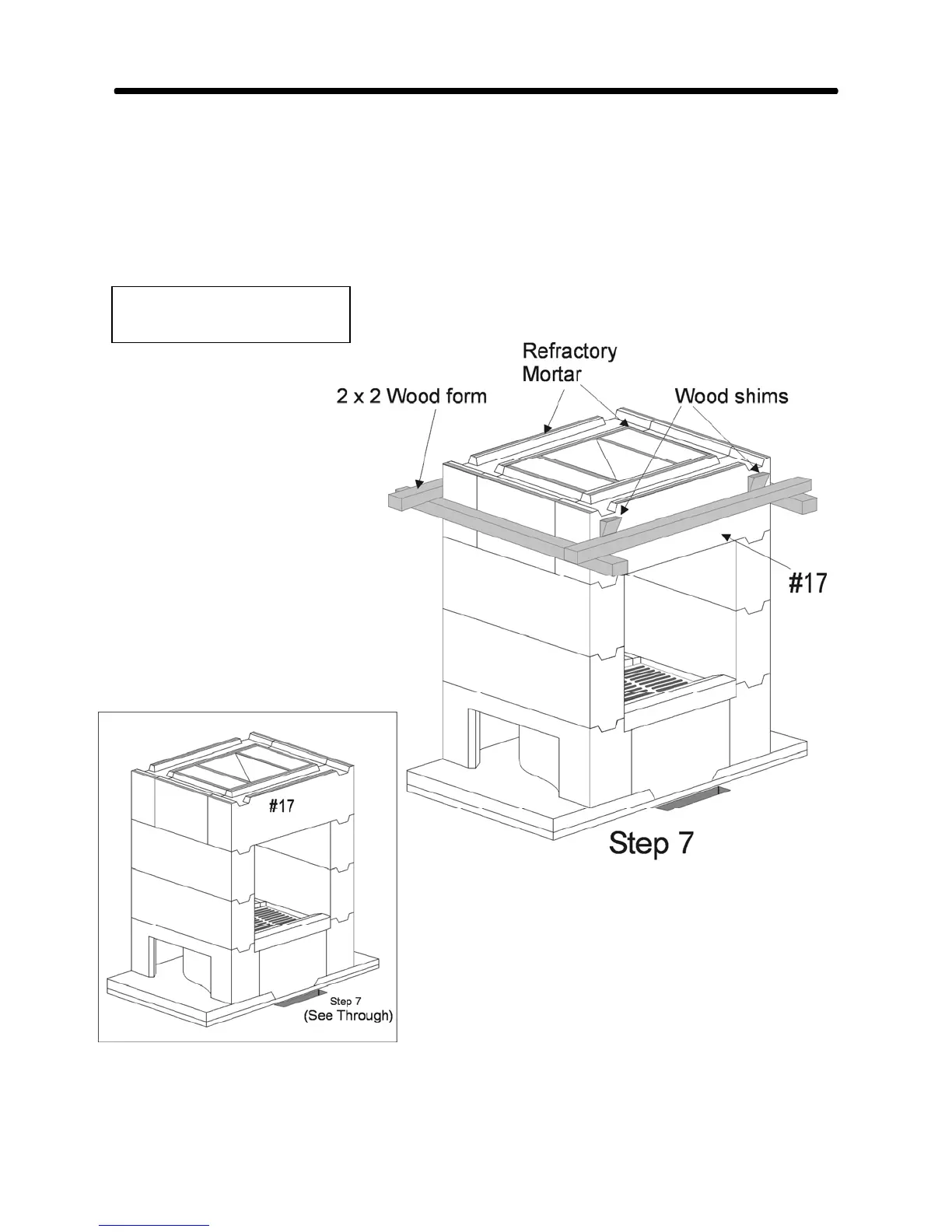

STEP 7:
Complete the lintel course with part # 17. Ensure that it aligns with the front edges of the
previous course. Seat firmly with the rubber mallet to ensure thin, strong joints and stable
support for the next course.
(If necessary, this course can be clamped with a tie-down until the refractory mortar sets.)
Weights
#17 - 84 lbs
