Temp-Cast 2000 - Page 23

Section 3 - Step-By-Step Assembly 23
Temp-Cast 2000 Installation Manual

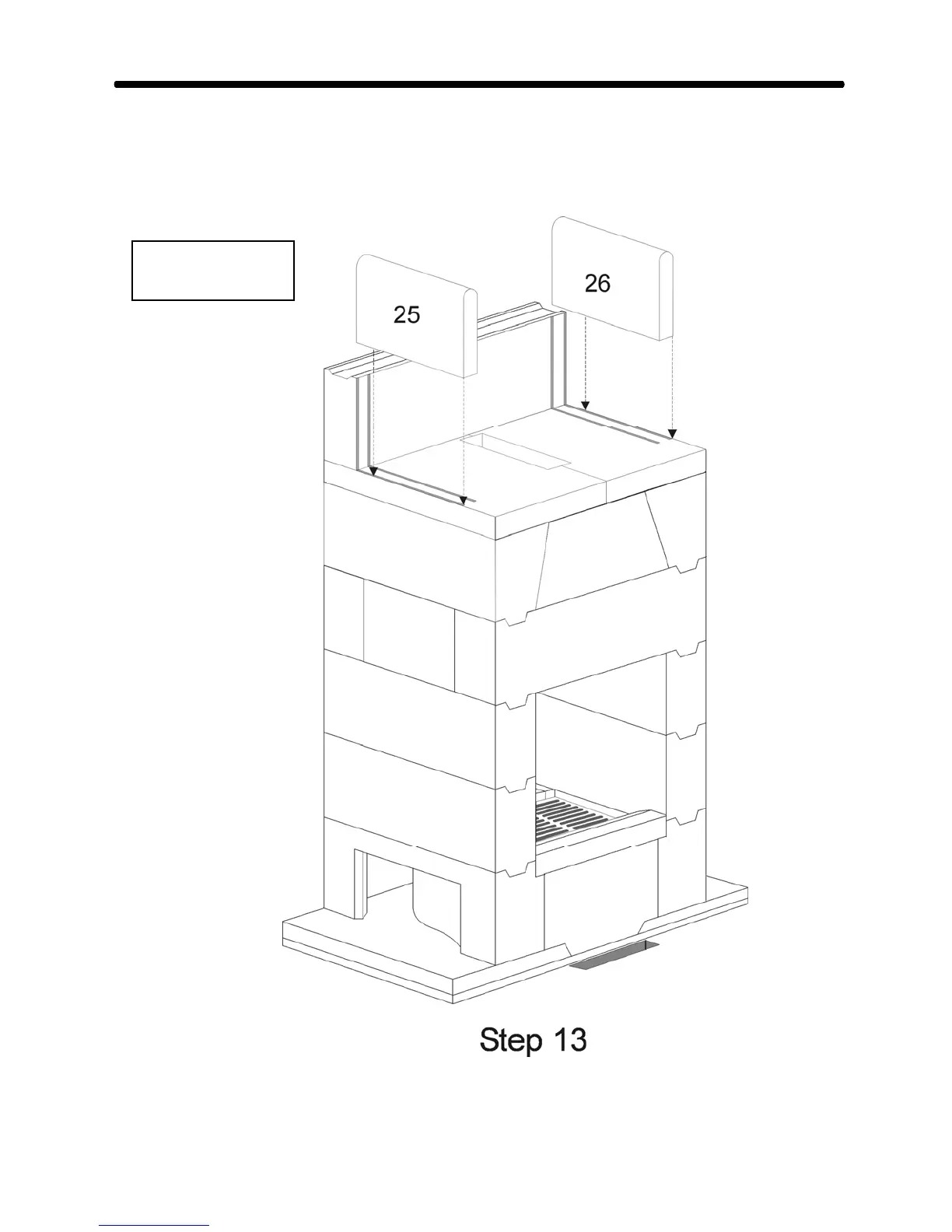

STEP 13:
Install the 2 short side walls of the secondary combustion chamber, parts 25 & 26. These parts
are not keyed and must be checked periodically to ensure they don't get out of position while the
refractory is drying.
Weights
#25 & 26 - 36 lbs
