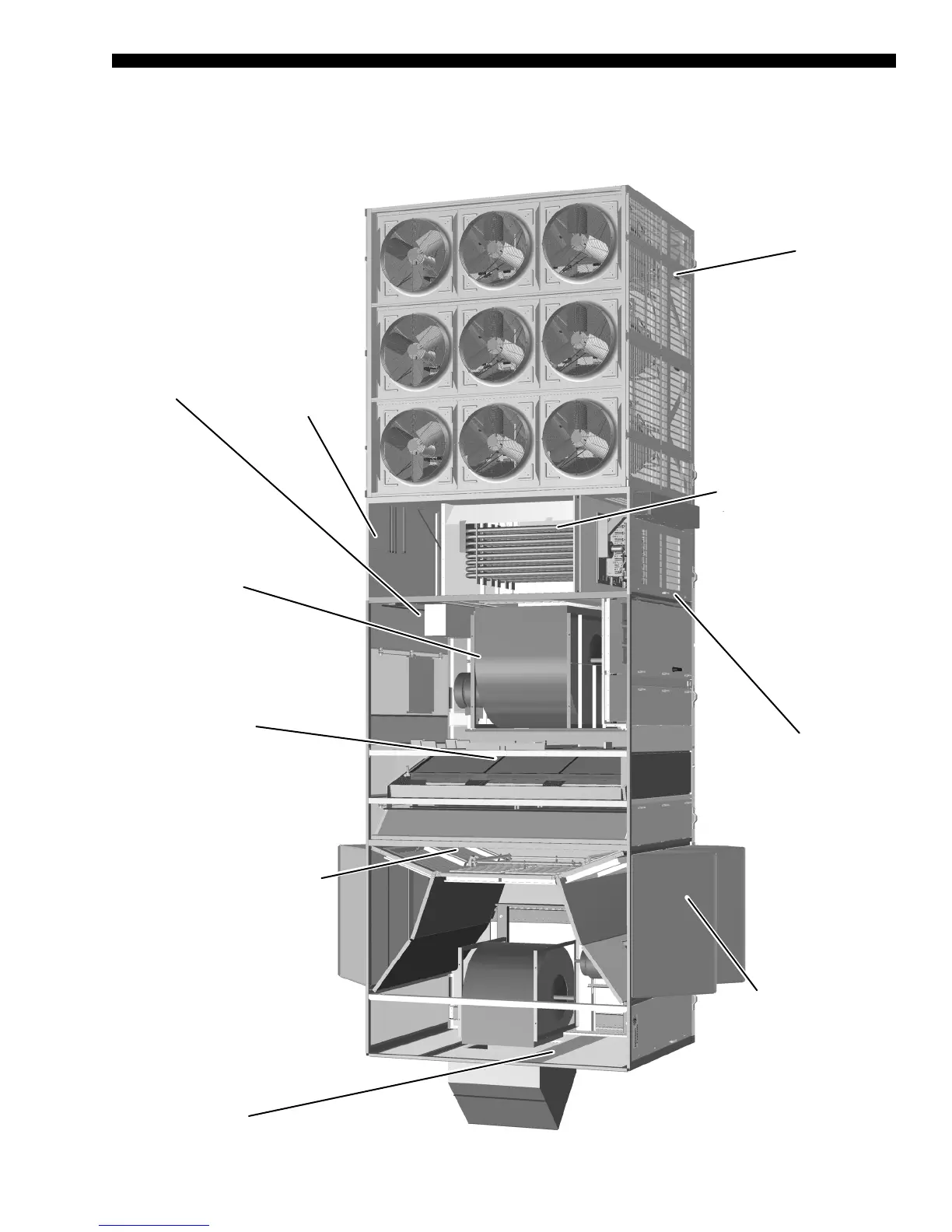

TMAL120–150 MODEL
Exhaust & return fans
• Horizontal return for all congurations
• Double width, double inlet (DWDI)
centrifugal exhaust fans
• Single width, single inlet (SWSI) ple-
num return fans
• Variable frequency drive (VFD) options
Mixing box
• OA from two sides • Facilitates mixing
Evaporator
• Angled coil to reduce
risk of carryover
• Standard stainless
steel drain pan
Single supply fan
• Eliminates stratication • Fewer moving parts • Solid steel shaft • Isolated assembly • Laser aligned and
balanced
Blower variable frequency drives (VFDs)
• Located in conditioned space • Remote keypad in control
section
• In ltered air stream to prevent
dust and dirt build-up
Side discharge with heat
• Does not require an elevated
structure or curb
• Flexible solution for building
application
Shared-fan design
• Standard low ambient to 0.0°F
• Control to discharge pressure • Quiet part load operation
24:1 modulating gas heat
• Induced draft furnace • Accepts gas pressures down to 4.5-inches • Six-stage base design
Advanced single package unit controller
• Multimedia card for updates (no EPROM) • Multimedia card used for data logging • Integrated TempMaster
®
ISN ConneXsys
™
control solution
• Standard BACnet
®
MS/TP and Modbus
™
communications
Collapsible outside air (OA) hoods
• Collapsible for ship-
ping to reduce freight
• Single piece shipment
• Fast and easy setup
