TempMaster OmniElite - Page 64

TEMPMASTER
64
FORM TPM3-EG1 (518)

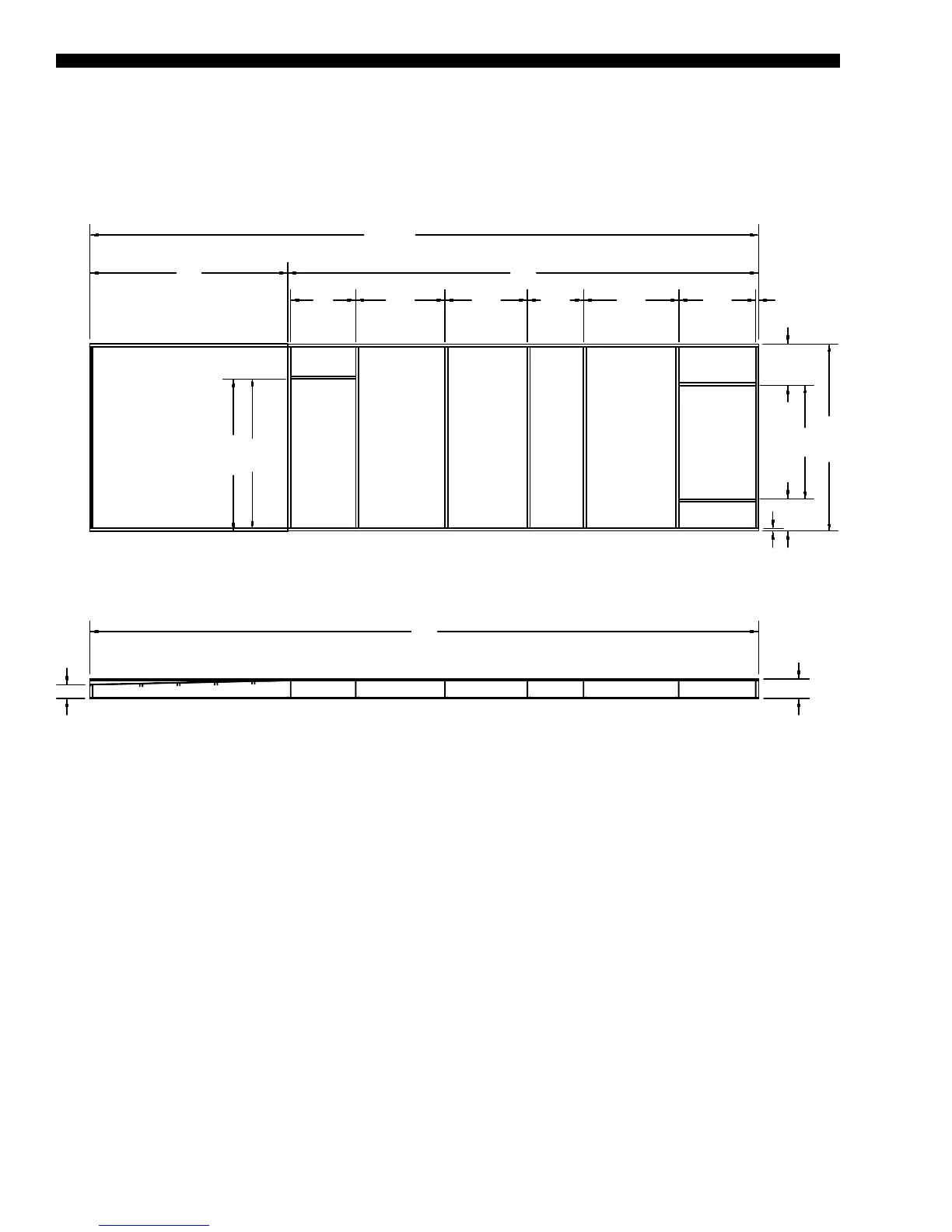

CURB LAYOUT DRAWING / 120–150 TON EXTENDED CABINET
NOTES:
1. Unit must be installed square and level.
2. Curb conguration for bottom return and bottom supply.
3, These drawings are not intended as construction documents for the eld fabricated roof curbs. TempMaster will not be responsible for the
unit t up, leak integrity, or sound level for installation using eld fabricated roof curbs.
4. The TempMaster
®
OmniElite
™
unit does not have a base pan under the condensing section of the unit. Field fabricated roof curbs must
have a cap on the top of the condensing section of the curb to prevent moisture from entering the space. The cap design must be sloped
away from the supply duct opening to the end of the unit for the drainage of the moisture off of the top of the cap.
5. Depicted above is a full perimeter curb.
2" TYP55.6"
I.D.
68.9"40.5"59.5"64.5"47"
I.D.
340"
483" O.D.
143"
109.75"
107.75"
I.D.
14"
483"
8"
29.94"
2" TYP
135" O.D.
81.84"
I.D.
23.22"
RETURN
FIGURE 10 - GENERAL ARRANGEMENT DRAWING (CON'TD)
General Arrangement Drawing – 120–150 Ton Models (Cont'd)
