Tenda A9 User Manual

11
Web UI Features

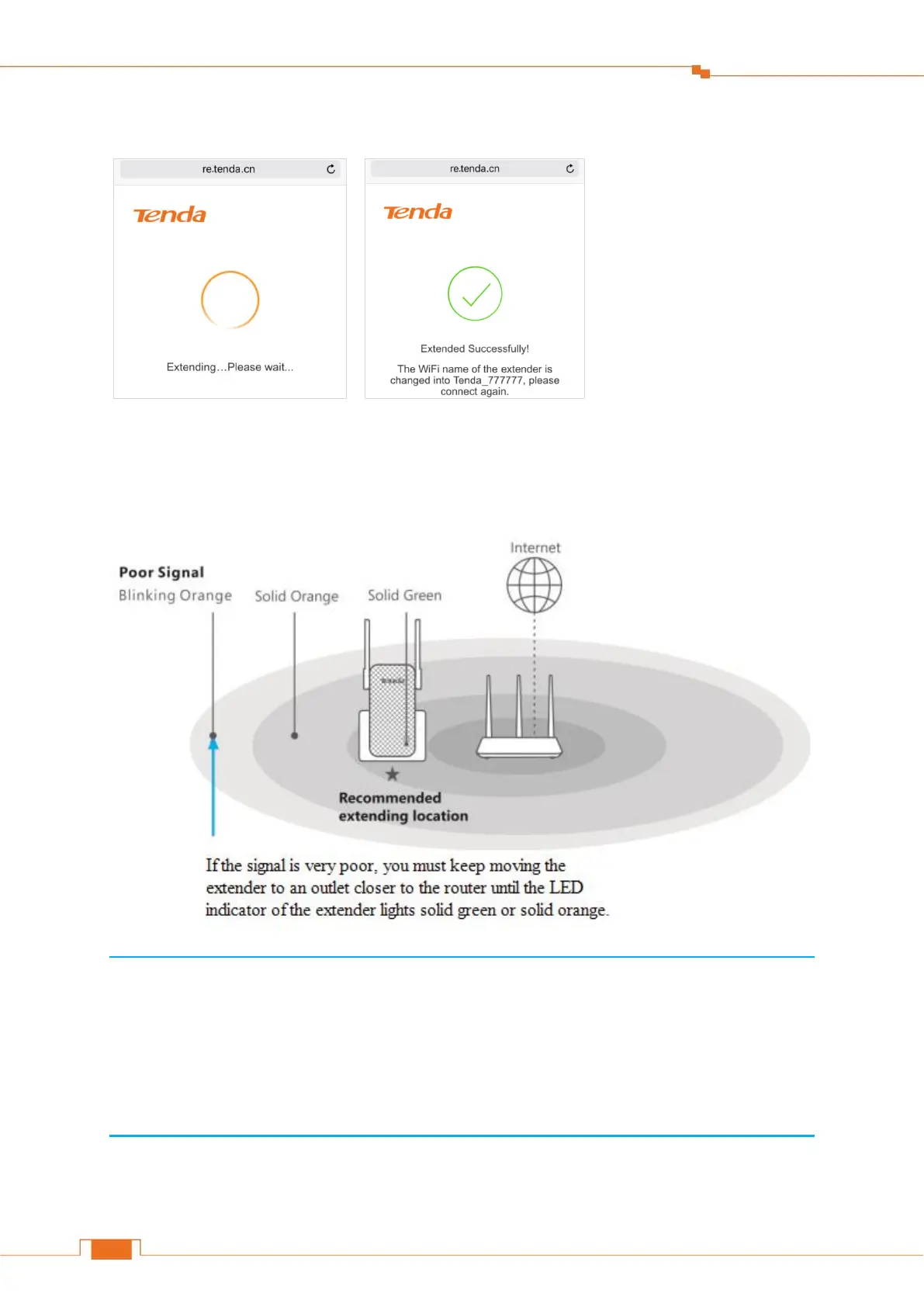

Wait until the extending progress is complete. It will take a few seconds.
⑥ Unplug the extender and move it to a new location that is about halfway between your
router and the area with a poor router WiFi signal. Observe the LED indicator on the
extender to choose an optimum extending location.
Tips
 You can also log in to the extender’s web UI to check the WiFi signal strength
(40%~79% is the optimum extending location).
 To minimize signal interference, keep the extender away from Bluetooth devices,
microwaves, refrigerators, and so on.

Tenda A9 Specifications

General

Type	Network transmitter & receiver
Ethernet LAN data rates	- Mbit/s
Maximum transfer distance	- m
Antenna type	External
Antennas quantity	2
Antenna gain level (max)	3 dBi
Wi-Fi	Yes
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Security algorithms	WPA-PSK, WPA-TKIP, WPA2-PSK
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Product color	Grey, White
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	47.7 mm
Width	56 mm
Height	111 mm
