Tenda F9 User Manual

Application Scenario
Jack purchases F9 to provide wired and wireless networks. The router locates at living room, so the WiFi signal is
strong in living room and main bedroom, but in washing room and second bedroom, the WiFi signal is too poor
to surf the internet. Now, Jack wants to surf the internet anywhere at home.
Solution
Add a F9 and set the operating mode to Universal Repeater to extend the WiFi signal.

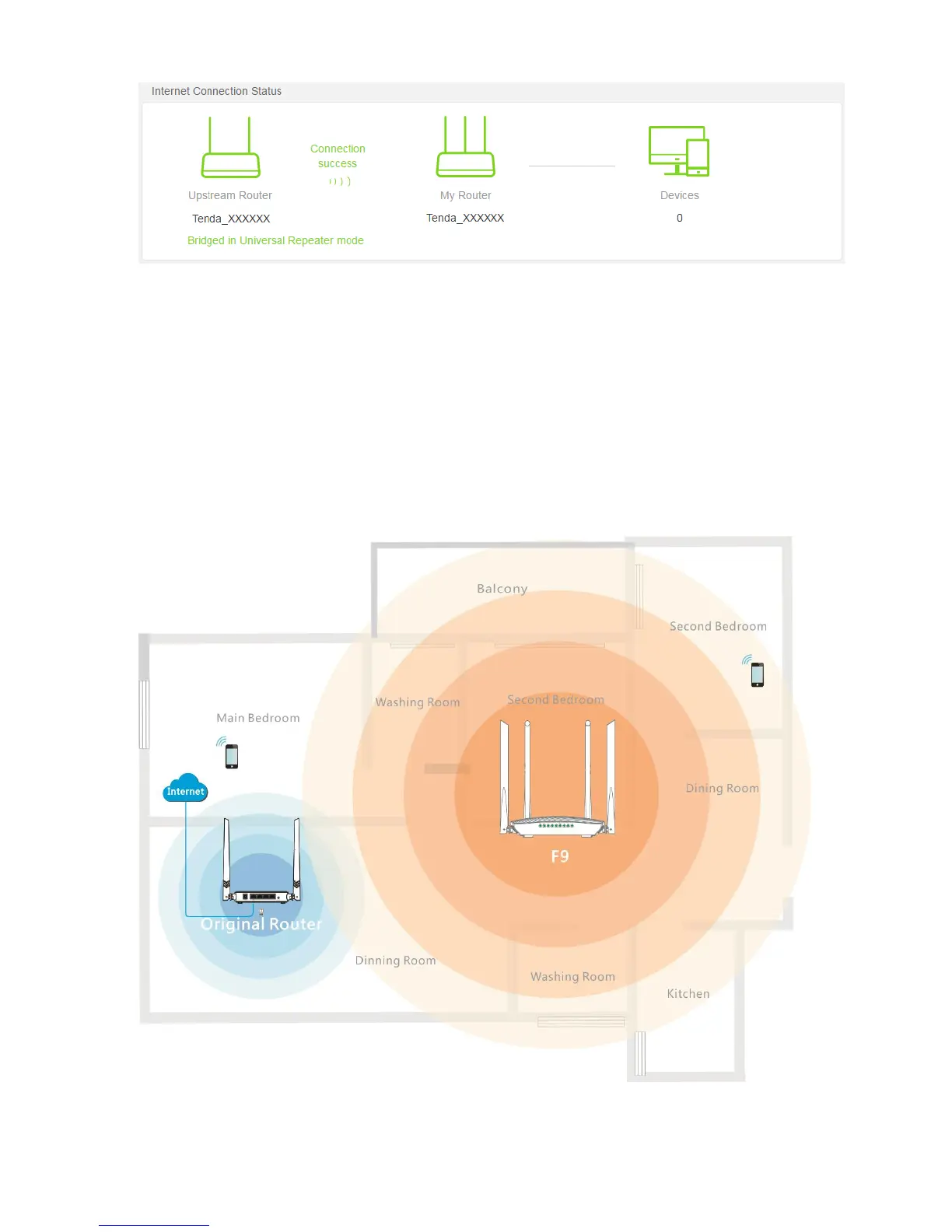

The following diagram is for reference.
Assume that the WiFi name and password of the original router is shown as follows:
 WiFi Name: Tenda_XXXXXX

Tenda F9 Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Modulation	16-QAM, 64-QAM, 256-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Channel bandwidth	40 MHz
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	600 Mbit/s
Product type	Tabletop router
Product color	White
LED indicators	System, WAN, WLAN, WPS
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	-95 dBm, -74 dBm, -72 dBm, -62 dBm, -70 dBm, -73 dBm, -86 dBm, -90 dBm
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11b)	21.5 dBmW
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11g)	17.5 dBmW
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11n)	15 dBmW
Ethernet LAN (RJ-45) ports	4
Flash memory	2 MB
Internal memory	16 MB
Processor model	Realtek
Output current	1 A
Output voltage	9 V
Power source type	DC
Power consumption (typical)	1.98 W
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Frequency band	2.4 - 2.4835 GHz
Antenna gain level (max)	6 dBi
Security algorithms	WPA, WPA-PSK, WPA2, WPA2-PSK
Browser supported	Internet Explorer 5.0, Firefox 1.0
Windows operating systems supported	Windows 2000
Harmonized System (HS) code	85176990

Weight and Dimensions

Width	171.3 mm
Height	36.4 mm
