Tenda F9 User Manual

---End
Verification
Verify that you can access the router web UI at 192.168.5.1 or tendawifi.com.

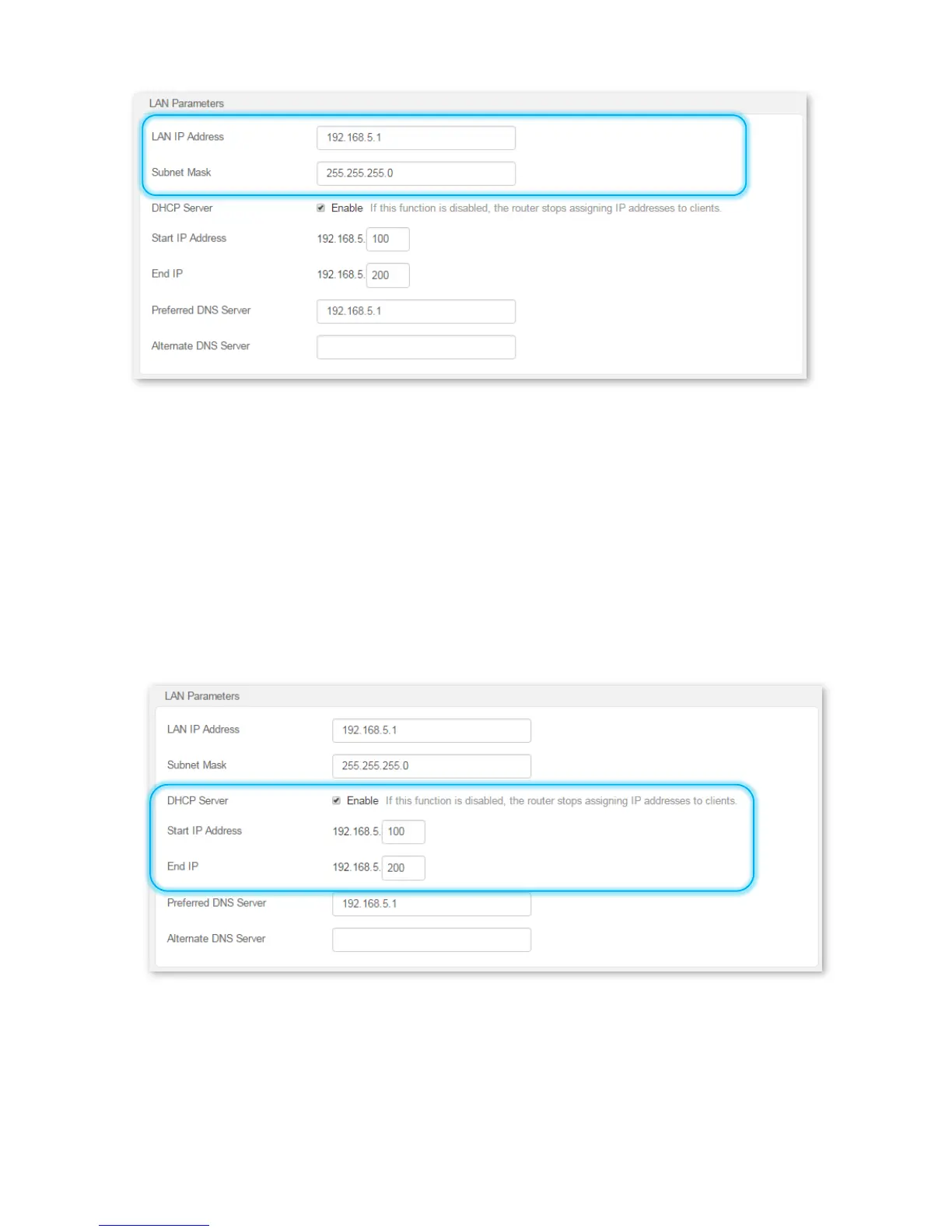

After the settings take effect, the system displays the login page at the new LAN IP address. After you log in to
the router web UI, the system displays the updated LAN IP address range of the router on the LAN Parameters
page. See the following figure. The LAN IP address is changed to 192.168.5.1 and the IP address range is changed
to 192.168.5.100~200. That is, the router assigns only the IP addresses within this range to devices connected to
the router.
Enabling or Disabling the DHCP Server
The default setting is recommended. If you need to change the settings, refer to the parameters in the following
table.

Tenda F9 Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Modulation	16-QAM, 64-QAM, 256-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Channel bandwidth	40 MHz
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	600 Mbit/s
Product type	Tabletop router
Product color	White
LED indicators	System, WAN, WLAN, WPS
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	-95 dBm, -74 dBm, -72 dBm, -62 dBm, -70 dBm, -73 dBm, -86 dBm, -90 dBm
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11b)	21.5 dBmW
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11g)	17.5 dBmW
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11n)	15 dBmW
Ethernet LAN (RJ-45) ports	4
Flash memory	2 MB
Internal memory	16 MB
Processor model	Realtek
Output current	1 A
Output voltage	9 V
Power source type	DC
Power consumption (typical)	1.98 W
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Frequency band	2.4 - 2.4835 GHz
Antenna gain level (max)	6 dBi
Security algorithms	WPA, WPA-PSK, WPA2, WPA2-PSK
Browser supported	Internet Explorer 5.0, Firefox 1.0
Windows operating systems supported	Windows 2000
Harmonized System (HS) code	85176990

Weight and Dimensions

Width	171.3 mm
Height	36.4 mm
