Tenda O3 User Manual

98

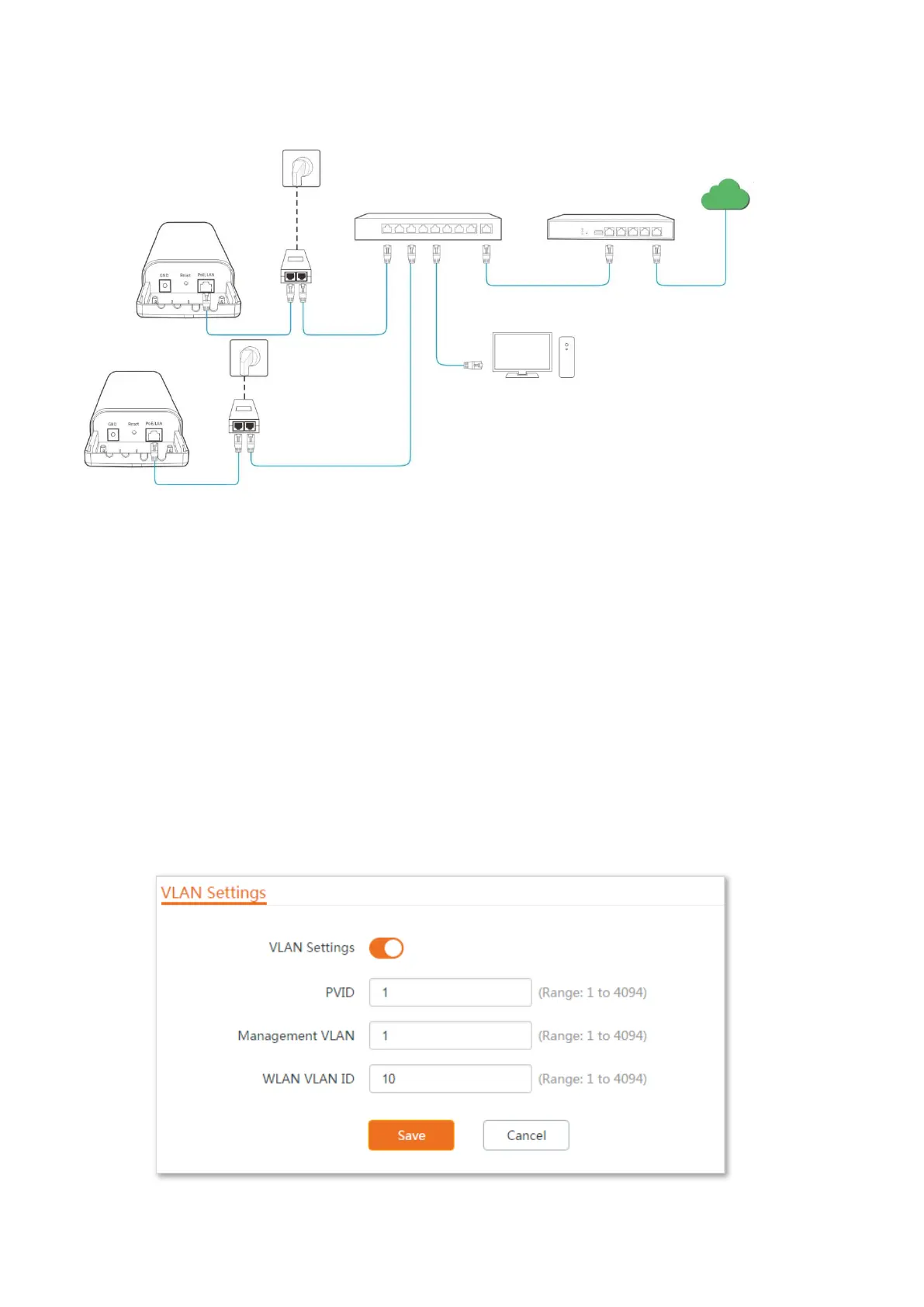

Network Topology
The connections of the switch:
− The router is connected to the uplink port
− CPE1 is connected to port 1
− CPE2 is connected to port 2
Configuration procedures
Step 1 Set up CPE1.
1. Log in to the web UI of CPE1, and choose Network > VLAN Settings.
2. Enable the function.
3. Set Management VLAN to 1.
4. Set WLAN VLAN ID to 10.
5. Click Save.
CPE2: VLAN20
CPE1: VLAN10
Switch
Router
Internet

Tenda O3 Specifications

General

5 GHz	No
2.4 GHz	Yes
Number of users	15 user(s)
Transmitting power	29 dBmW
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	MCS0: -88dBm MCS7: -72dBm
Maximum outdoor range	5000 m
Maximum data transfer rate	150 Mbit/s
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Placement	Wall
Certification	FCC / CE / RoHS
Product color	White
LED indicators	LAN, Power, WAN
International Protection (IP) code	IP64
Antenna features	Integrated antenna
Antenna gain level (max)	12 dBi
Output current	1 A
Output voltage	12 V
Power consumption (max)	6 W
Security algorithms	WPA, WPA2, WPA2-PSK
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	94.86 mm
Width	270 mm
Height	67.5 mm
