7.1.4 Set up a wireless network encrypted using WPA or WPA2
Networking requirement

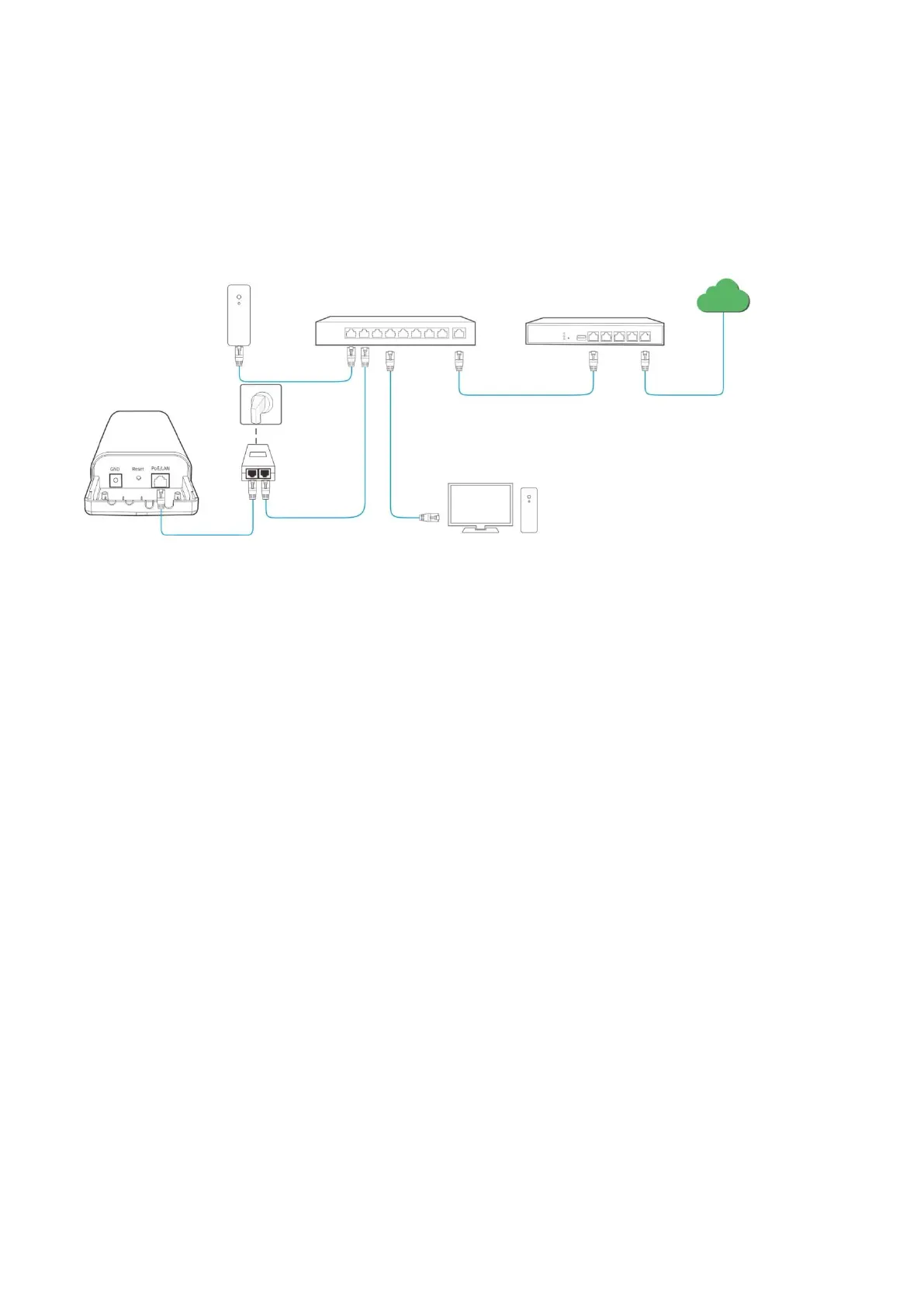

A highly secured wireless network is required and a RADIUS server is available. In this case, WPA or
WPA2 mode is recommended. See the following figure.
Network topology
Configuration procedures
To configure the CPE:
Assume that:
The IP address of the RADIUS server is 192.168.2.200, the Key is 12345678, and the port number
for authentication is 1812.
The SSID of the CPE is hot_spot, security mode is WPA2, and the encryption algorithm is AES.
Step 1 Start a web browser on the computer connected to the CPE, visit 192.168.2.1 and choose
Wireless > Basic.
Step 2 Change the value of the SSID text box to hot_spot.
Step 3 Set Security Mode to WPA2.
Step 4 Set RADIUS Server, RADIUS Port, and RADIUS Password to 192.168.0.200, 1812, and
12345678 respectively.
Step 5 Set Encryption Algorithm to AES.
Step 6 Click Save.
RADIUS Server IP: 192.168.2.200
Switch
Router
Computer
CPE IP Address:
192.168.2.1
Internet
LAN
PoE

Tenda O3 Specifications

General

5 GHz	No
2.4 GHz	Yes
Number of users	15 user(s)
Transmitting power	29 dBmW
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	MCS0: -88dBm MCS7: -72dBm
Maximum outdoor range	5000 m
Maximum data transfer rate	150 Mbit/s
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Placement	Wall
Certification	FCC / CE / RoHS
Product color	White
LED indicators	LAN, Power, WAN
International Protection (IP) code	IP64
Antenna features	Integrated antenna
Antenna gain level (max)	12 dBi
Output current	1 A
Output voltage	12 V
Power consumption (max)	6 W
Security algorithms	WPA, WPA2, WPA2-PSK
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	94.86 mm
Width	270 mm
Height	67.5 mm
