Example of configuring the SNMP function

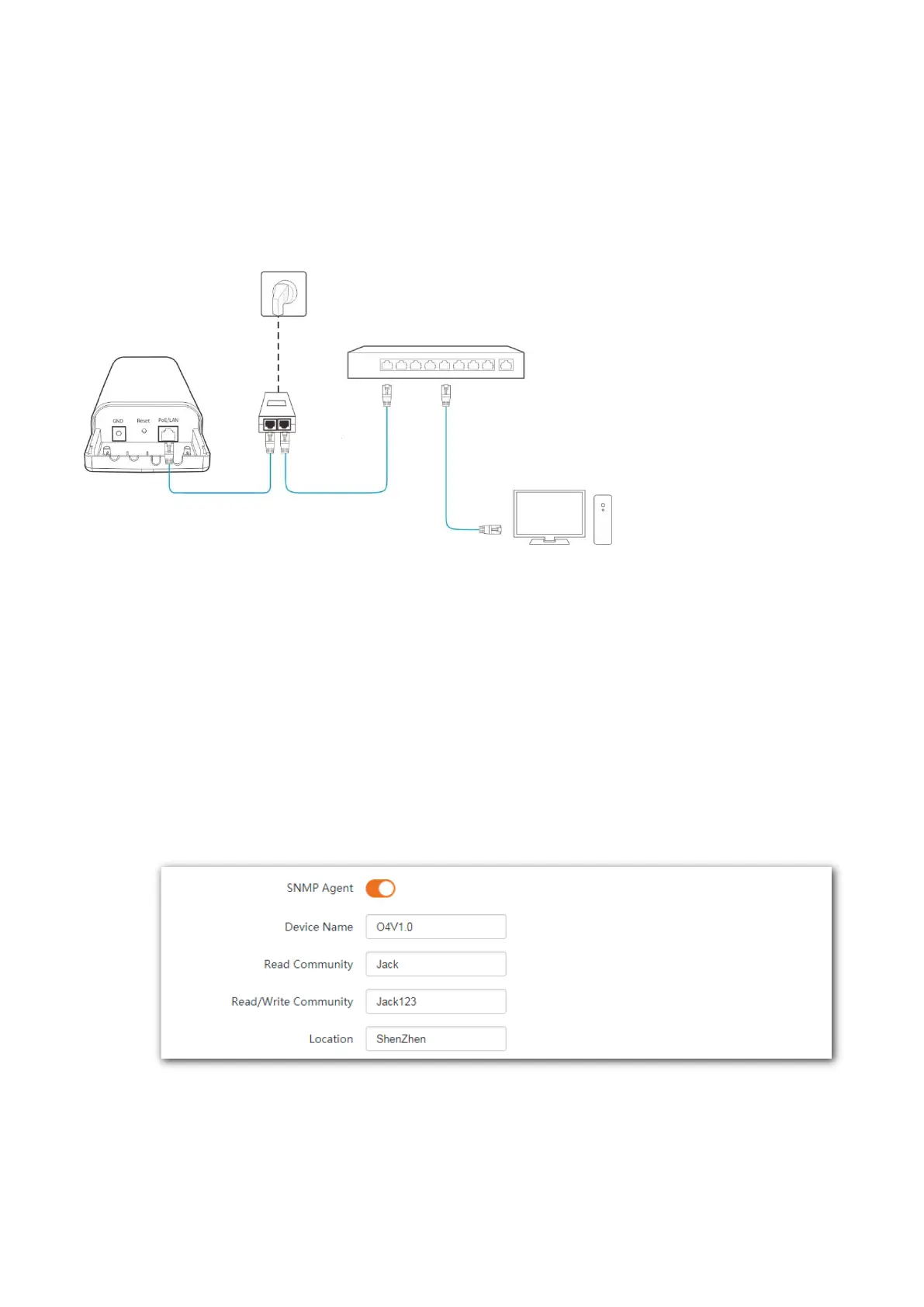

Networking requirement
− The device connects to an NMS over an LAN. This network address of the device is
192.168.2.1/24 and the network IP address of the NMS is 192.168.2.212/24.
− The NMS use SNMP V1 or SNMP V2C to monitor and manage the device.
Configuration procedures
Step 1 Set up the device.
Assume that Read Community is Jack, and Read/Write Community is Jack123.
1. Start a web browser on the computer connected to the CPE, visit 192.168.2.1 and choose
Advanced > Network Service.
2. Enable the SNMP Agent function.
3. Set the Read Community, which is Jack in this example.
4. Set Read/Write Community, which is Jack123 in this example.
5. Click Save on the bottom of this page.
Step 2 Set up the NMS.
On an NMS that uses SNMP V1 or SNMP V2C, set the read community to Jack and read/write
community to Jack123. For details about how to configure the NMS, refer to the configuration
guide for the NMS.
